Wydale 100 Litre Wheel Arch Water Tank

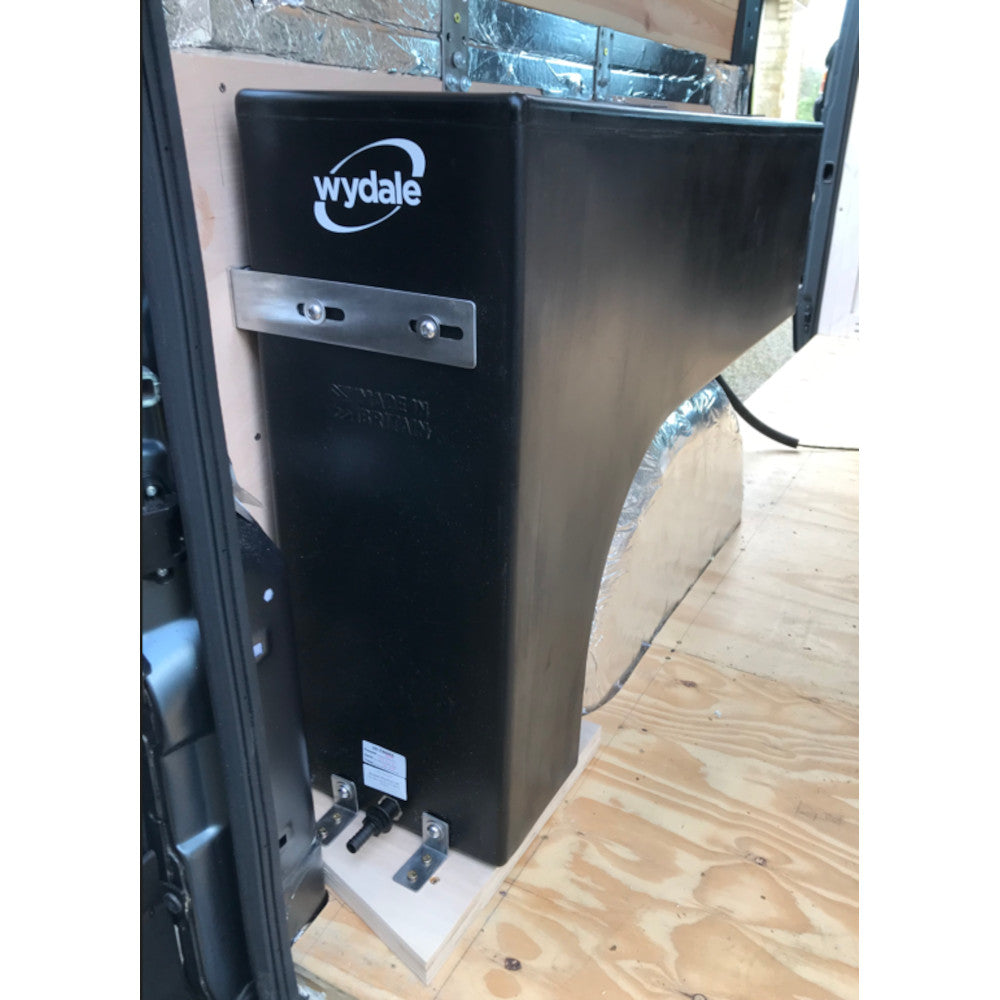

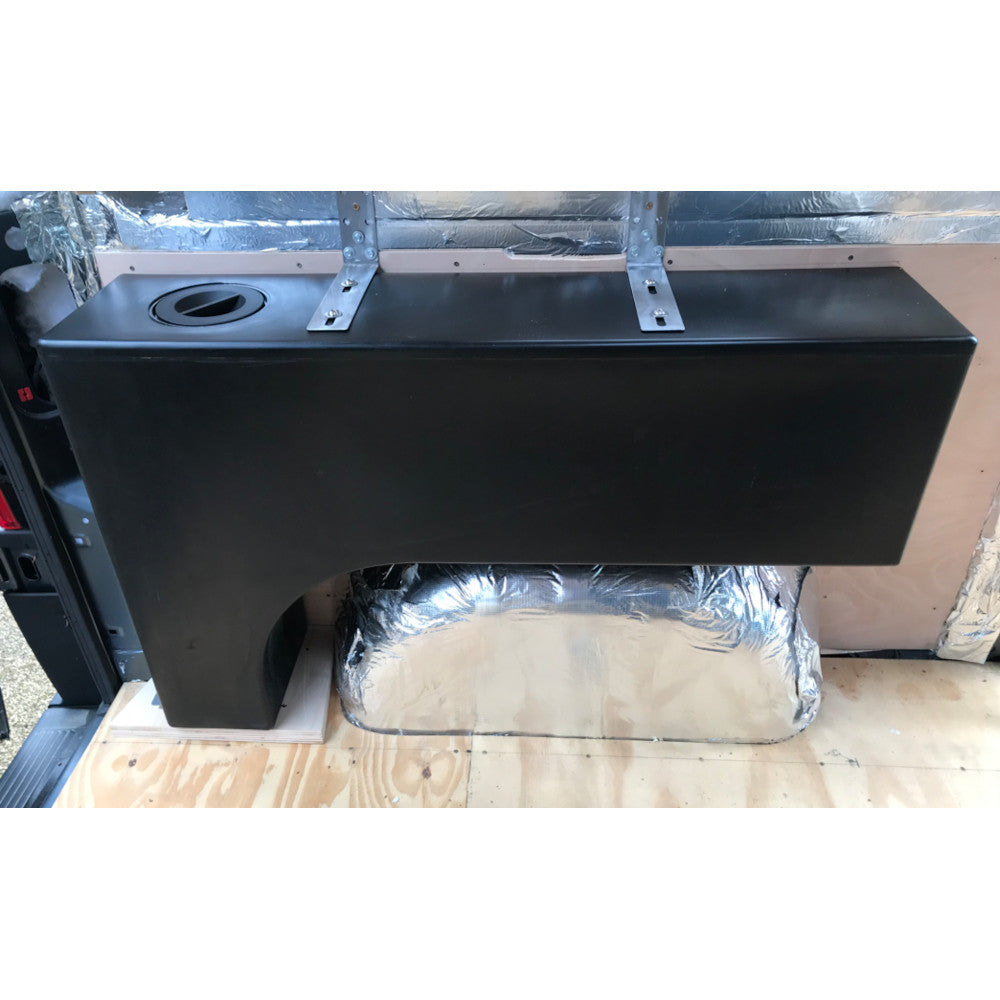

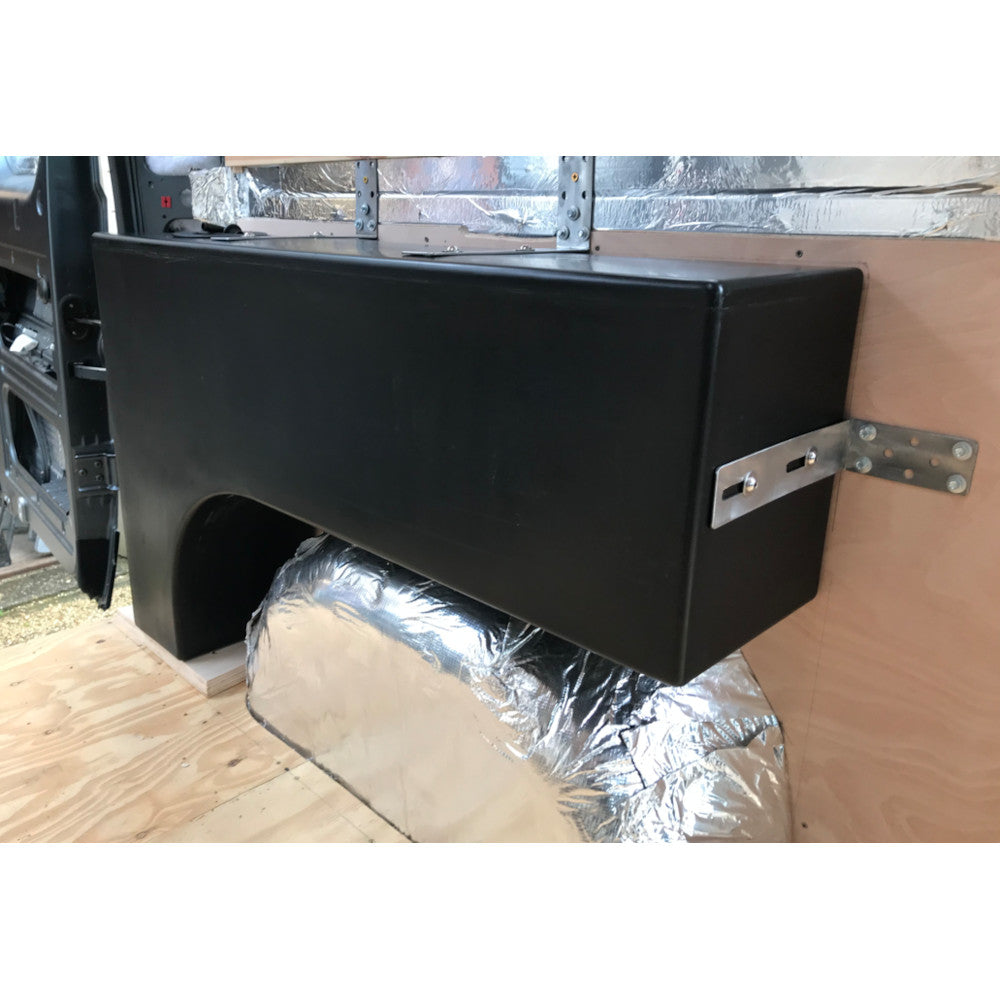

The 100 Litre Wheel Arch Water Tank is designed to fit most vans and pick ups. The tank can be placed over the wheel arch and fitted to the vehicle using the 10 x M8 inserts that are moulded into the tank. These wheel arch tanks are made from WRAS approved polymer and therefore can be used for potable/drinking water.

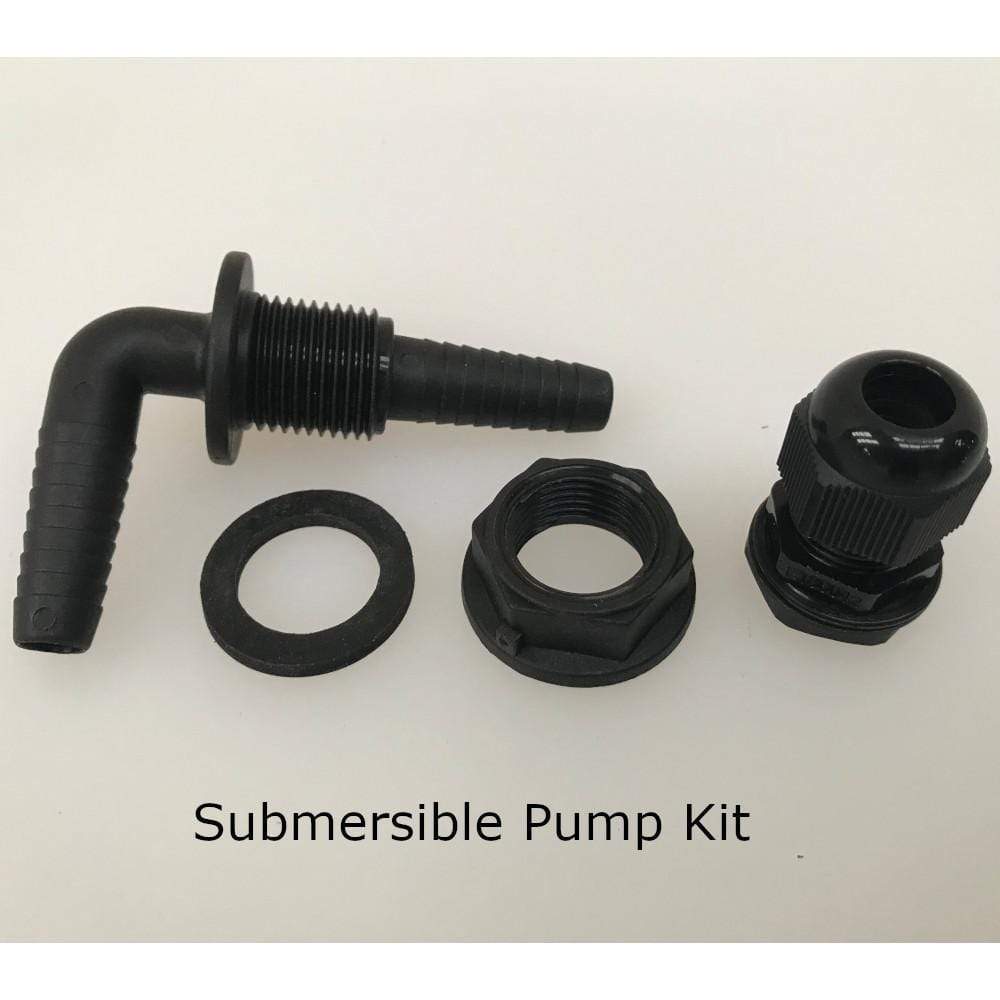

There are 3 optional extras kits; fitting kit, submersible pump kit and plumbing kit, please see optional extras below for details.  These kits can be used for potable/drinking water.

Please note: All Manufacturers Tank sizes and capacities quoted are subject to a +/- 3% variation.

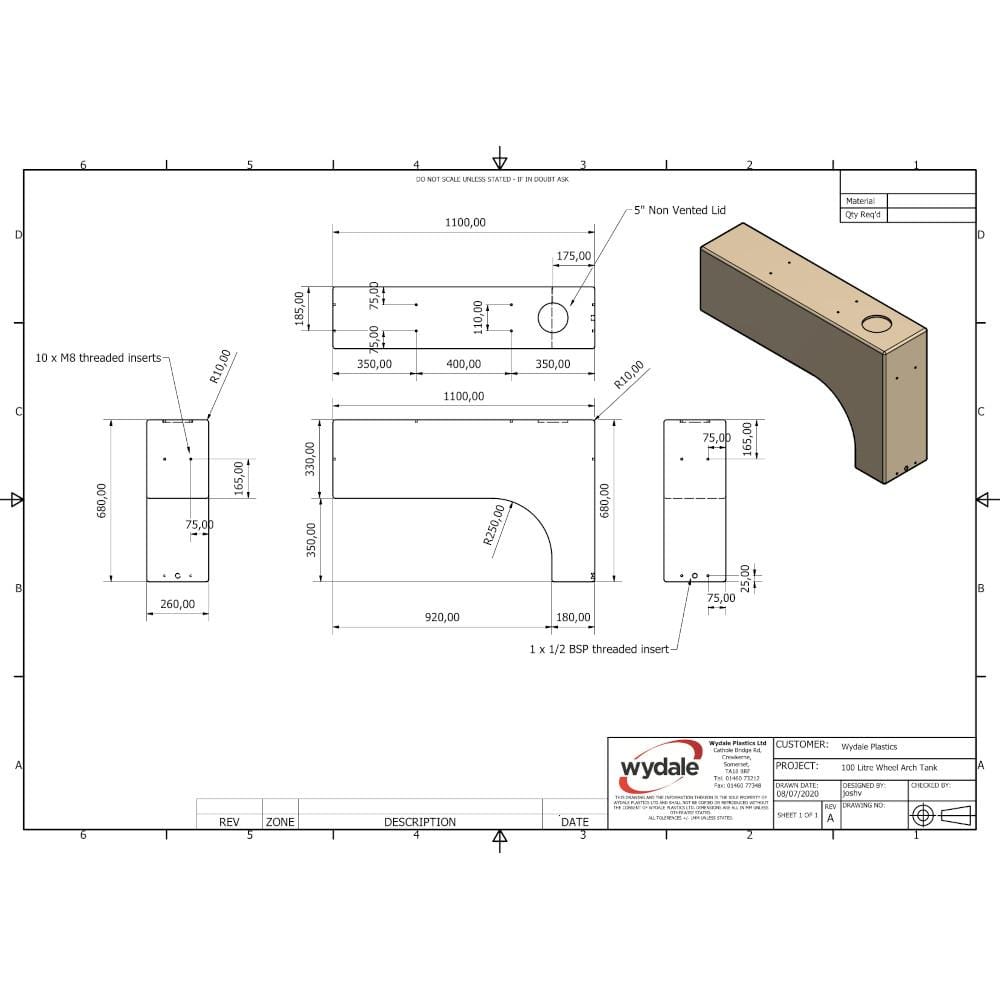

Specifications:

• Capacity: 100 Litres
• Height: 680mm (excluding Lid)
• Depth: 260mm
• Width: 1100mm
• Weight: 11kg

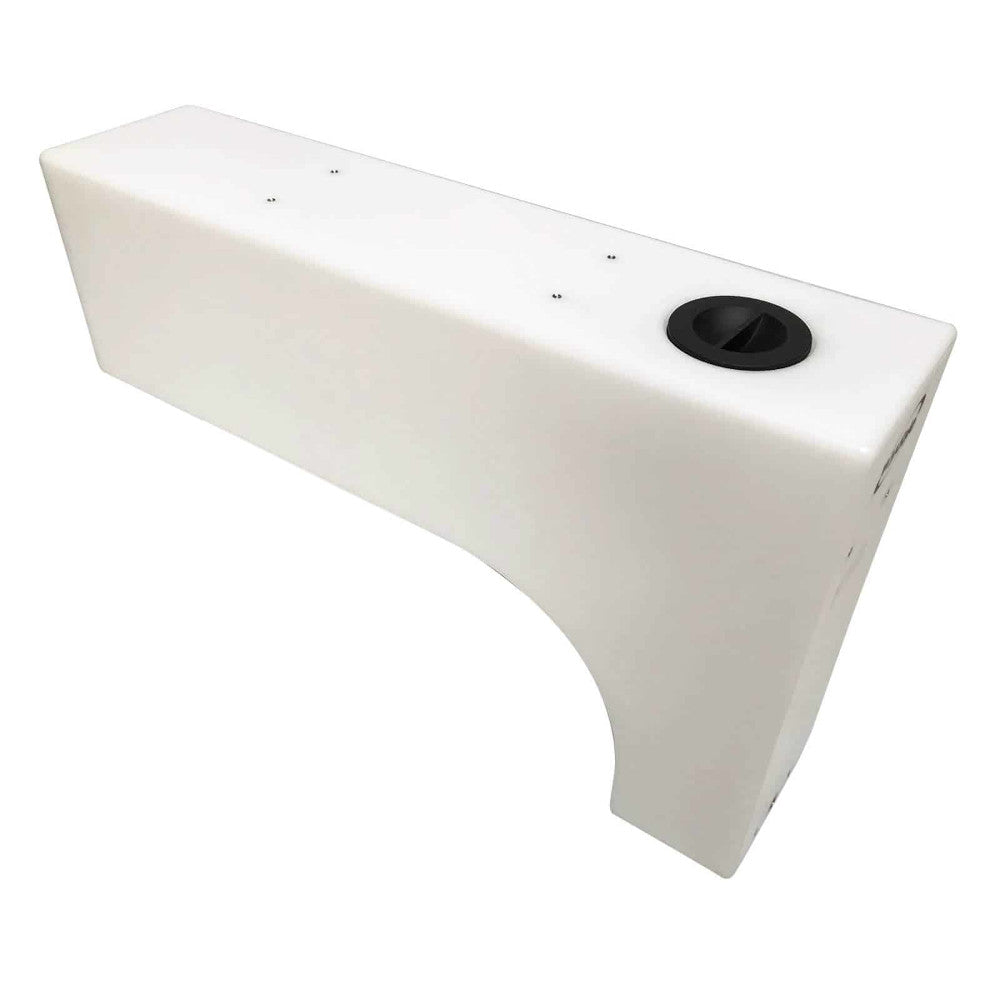

• Colour: Black or Natural (semi-translucent)
• Virgin Medium Density Polyethylene (MDPE)
• 5" Plain Lid

• 2 Year Warranty Against Manufacturing Defects

Optional Extras

Contents:

• 4 x Wheel Arch 100 L Bracket (240mm x 108mm x 50mm)
• 2 x Wheel Arch 100 L Bracket (50mm x 40mm x 30mm)
• 10 x M8 x 12mm socket button head stainless steel
• 10 x M8 x 25mm washer stainless steel
• 20 x 5.5 x 26 Tek Screws

• 1 x ½” BSP 90° bulkhead hose tail 11-13mm
• 1 x ½” BSP back nut
• 1 x ½” BSP gasket
• 1 x cable gland
• 1 x 10 metre roll PTFE tape

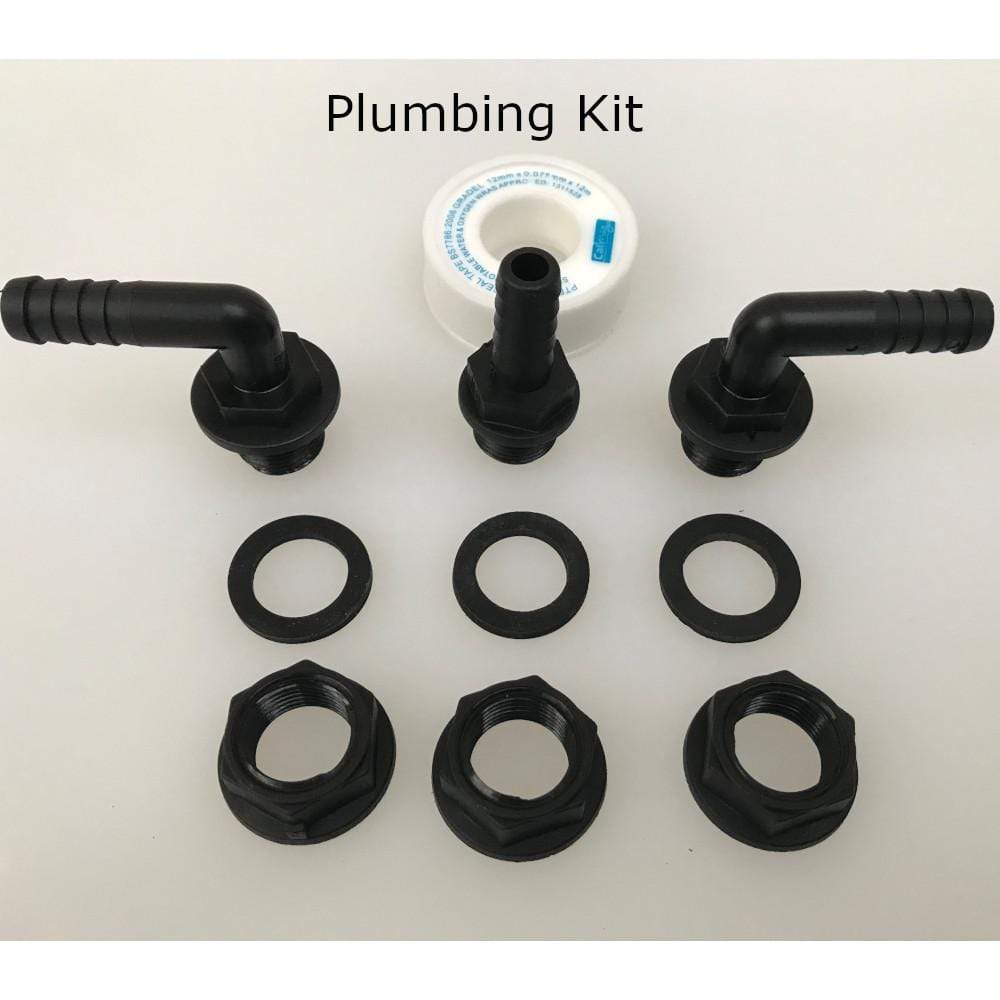

Plumbing Kit:
This kit has all the fittings required for the outlet, inlet and vent hoses.
Contents:

• 1 x ½” BSP x 13mm hose tail
• 2 x ½” BSP 90° hose tail
• 3 x ½” BSP gasket
• 3 x ½” BSP back nut
• 1 x 10 metre roll PTFE tape
