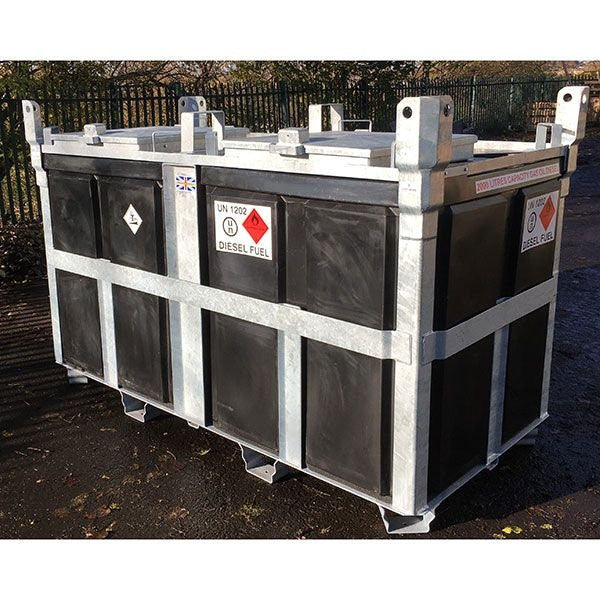

Transportable Bunded Plastic Diesel Tank - 2000 Litres

This 2000 Litre bunded diesel polycube is UN certified for 10 years for the storage and transportation of diesel on highways. This can as standard can be used as a generator feed and return using two sets of fittings, or you can add an optional pump kit for diesel refuelling. Constructed from a corrosion-free and robust polyethylene inner tank and outer bund secured in a galvanised steel frame. Complete with four-way lifting points and fork pockets, multiple generator feed access points, additional fitting's moulded in tank for ancillary equipment such as telematics and pumps, secured in a lockable cabinet for protecting the pumping equipment and contents.

Delivered complete with:

• 2000 Litre, UN Approved, bunded mobile diesel tank
• Tank colour Black as standard, yellow, red, green, white available on request
• UN Approved for the transportation of diesel fuel on the highway
• Polyethene inner & outer tank within a strong, galvanised steel frame
• 2 sets of generator feed & returns – 1/2″ BSP(f) elbows
• Tank contents gauge
• All equipment housed within cabinet with a gas strutt assisted lid
• Cabinet lid has a shrouded lock for added security
• 4 way fork lift pockets – can lift while full of fuel
• 4 corner tank lifting eyes – can lift while full of fuel
• Can be stacked 3 high when empty
• Suitable fro use with diesel, gas oil and red tractor diesel

Tank Dimensions:
HEIGHT: 1430mm
LENGTH: 2500mm
WIDTH: 1213mm
UNLADEN WEIGHT: 580kg
LADEN WEIGHT: 2300kg

OPTIONAL PUMPS:

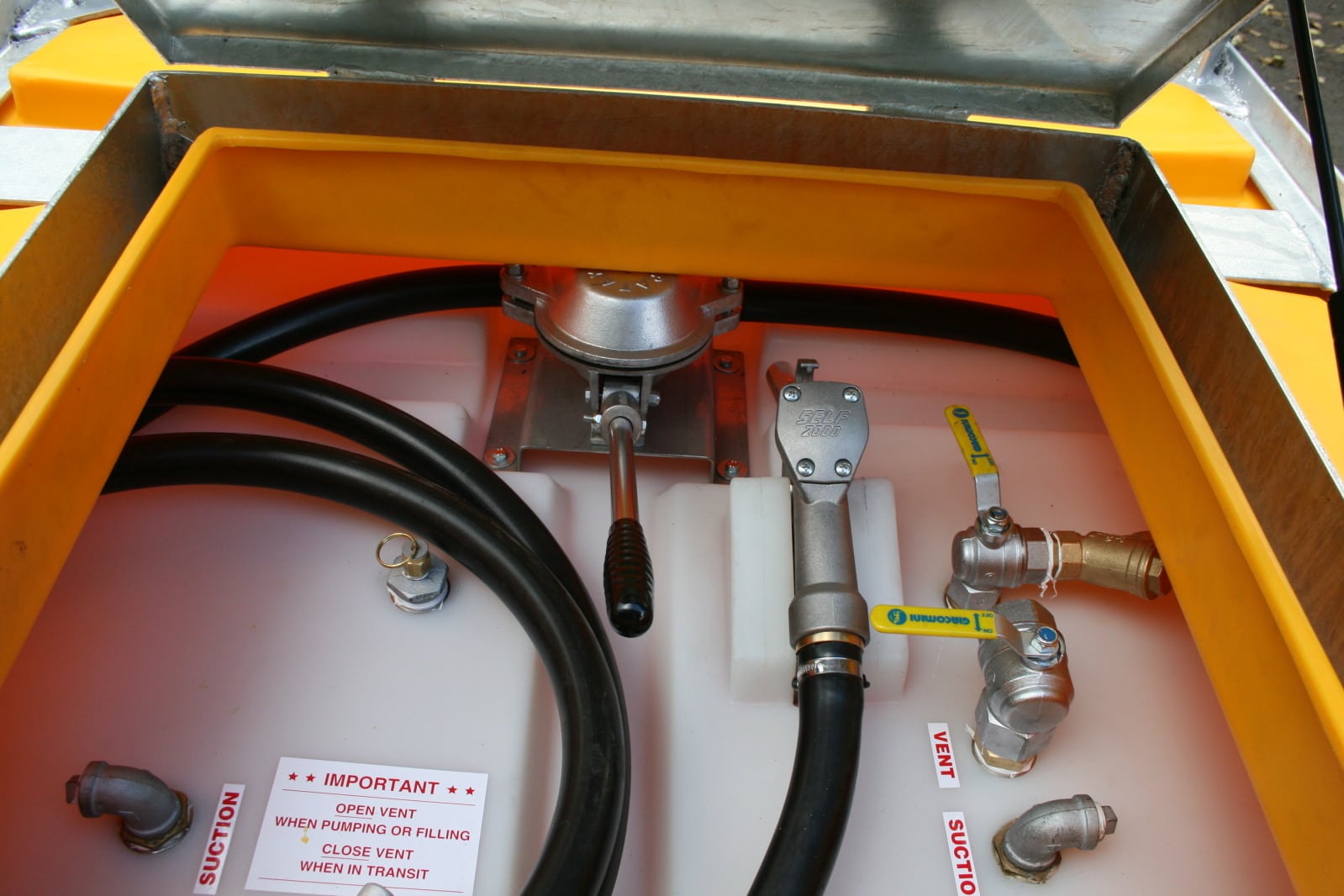

K1 semi rotary hand pump c/w in line ‘Y’ strainer, 15’ of 1" fuel hose & trigger nozzle. 12V Pump or Single diaphragm hand pump Either pump comes complete with suction pipe c/w ball valve, in line ‘Y’ strainer,15’ length of 1” diesel hose and c/w trigger nozzle.

OUTER BUND TANK:
Corrosion free, Robust Heavy Duty Polyethylene outer bund tank.

FRAME:
Galvanised 5mm steel frame. c/w built in fork sockets on all sides. Four corner lifting eyes. Gas strut assisted secure lockable steel access lid.

INNER FUEL TANK:
Corrosion free, robust/heavy duty Polyethylene inner tank to prevent fuel contamination. Moulded in trigger nozzle storage. 2” filler cap. Contents gauge. Pressure relief valve. 1” manual vent valve fitted. Fittings to run two generators simultaneously with the lids locked, as standard (option to run four generators).

STORAGE:
Approved to stack 2 high when full and 3 high when empty.

FINISH:
Our diesel polycube comes with a black Polyethylene outer tank as standard. Other colours available. Galvanised frame and lid.

FINISH
Tank- Primer and two top coats, single British Standard colour. Galvanised Chassis.
