Transportable Site Tow Diesel Bowser - 2140 Litres

Trailer Engineering's 2140 litre bunded diesel site tow bowser is constructed from a polyethylene inner tank to ensure a clean fuel storage solution, secured in a steel outer bund. The 2140 litre bunded diesel site tow bowser is fully UN Certified for 10 Years for the storage and transportation of fuel.

This bunded diesel site tow bowser comes with lockable rear door, four lifting points and two fork sockets (for when the tank is out of the chassis). Complete with a fully welded single axle site towable trailer. The A-frame trailer is manufactured from steel and then galvanised as standard, Painted chassis are available upon request.

The inner tank is constructed from polyethylene to ensure a clean storage solution of fuels.  The outer bunded is constructed from steel and has forklift truck lifting points (for when the tank is off of the chassis), 4 lifting points and lockable rear door.

Delivered complete with:

• 2140 Litre capacity

• K2 Hand pump (other options available)
• 15ft delivery hose
• Manual shut off nozzle
• Contents gauge
• Four lifting points
• 2" fill point
• 2" vent
• Certified UN1202 (for road haulage)
• Painted Yellow as standard (other colours available for extra cost)

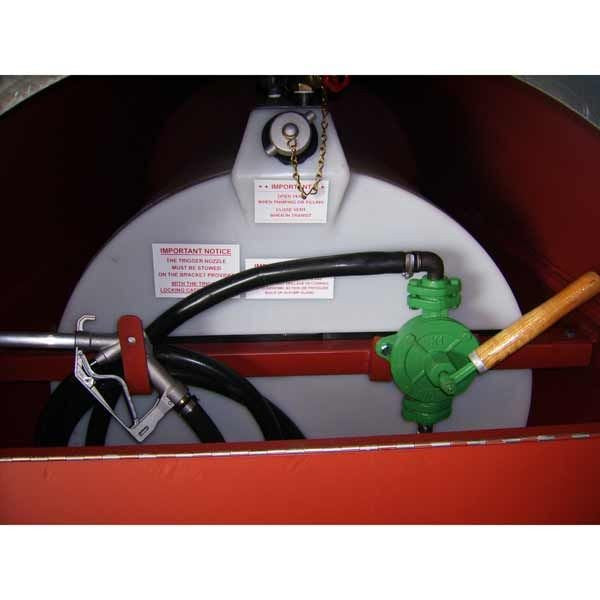

Image for illustraion only

Tank Dimensions:
HEIGHT: 1.982m (78”)
LENGTH: 3.378m (133”)
WIDTH: 1.803m (71”)
UNLADEN WEIGHT: 700kg
LADEN WEIGHT: 2560kg approx. - 3000kg max

CHASSIS:
Constructed from 100 x 50 RSC fully welded with front standing plate and ‘A’ frame drawbar. Hot dip galvanised.

AXLE:
Single solid beam axle welded to chassis and fitted with 4 stud unbraked hubs.

WHEELS AND TYRES:
2 No 175 x 13 x 8 ply radial tyres fitted to 4 stud 51⁄2”pcd rims.

COUPLING:
2” forged solid ring eye.

ANCILLARY EQUIPMENT:
Rear Support Stand, Front Sliding Prop Stand.

PUMP:
K1 semi rotary hand pump c/w in line ‘Y’ strainer, 15’ of 1" fuel hose & trigger nozzle stowed on bracket. Options available on request: Electric Pump, Petrol Pump, Non Resale Flowmeter.

FINISH:
Tank- Primer and two top coats, single British Standard colour (yellow as standard). Galvanised chassis.

OUTER BUND TANK:
Cylindrical in section with removable top section for tank access. Rear access door fitted with stainless steel hinge and fully lockable. Bund contains 110% to hinge line. 4 lifting eyes on corners of tank, fork truck sockets for use when tank out of chassis only.

INNER FUEL TANK:
Constructed from translucent heavy duty Polyethylene, with a capacity of 980 litres. 2” filler with cap and chain. 1” manual vent valve, top-mounted 1⁄2” BSP suction and return connections. Ball valve in base of tank, to pump. Pressure relief valve in the top of the tank.
