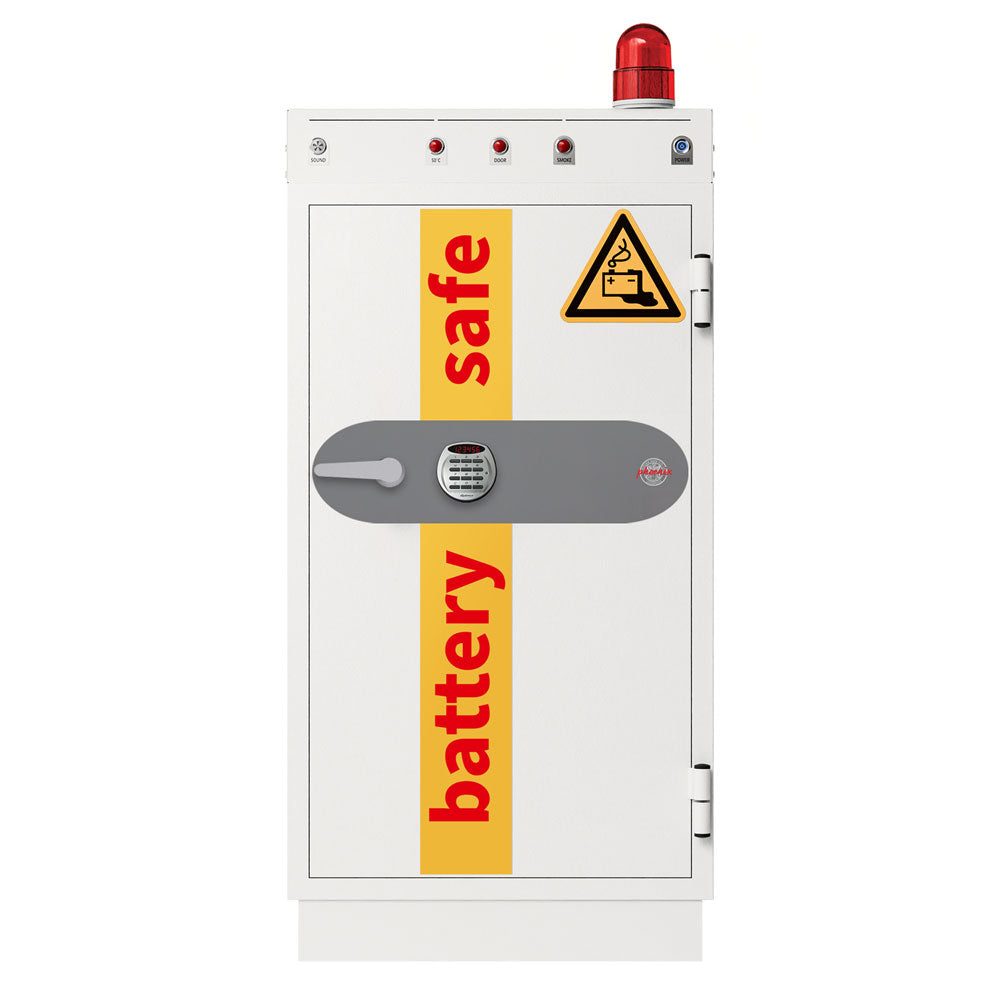

Phoenix Battery Commander BS1945E – Lithium-Ion Storage & Charging Safe Electric Lock (VDMA Certified)

The Ultimate Protection Against Lithium-Ion Battery Fires. The Phoenix Battery Commander Pro BS1945E is a high-security cabinet engineered specifically to mitigate the unique risks of lithium-ion batteries. Whether for power tools, e-bikes, or industrial drones, this safe protects your property from the devastating effects of thermal runaway while allowing for secure, organized charging.

Certified Safety & Durability. This safe is independently tested and certified to the VDMA 24994:2024-08 standard, ensuring it can contain a lithium-ion fire from the inside. Additionally, it offers 120 minutes of fire protection (NT Fire 017-120P) for paper and digital media, keeping your internal contents safe from external building fires.

Smart Monitoring & Charging. Equipped with 12 internal power sockets (5 x 4-way PDUs), the BS1945E allows you to charge multiple devices simultaneously. Safety is prioritized with a built-in temperature monitor, siren, and strobe light. If overheating is detected, the unit automatically cuts power to the chargers to prevent fire before it starts.

Key Features & Benefits
Certified Lithium Protection: Tested to VDMA 24994:2024-08 for internal fire containment and EN 14470-1 for external fire resistance.

Integrated Charging Hub: Fitted with 5 x 4 gang power sockets to safely charge batteries for e-scooters, laptops, and tools.

Advanced Warning System: Features an external temperature warning lamp, siren, and strobe light to alert you to potential thermal issues.

Automatic Power Cut-Off: Smart sensors cut power to internal charging points if the door is left open or if internal temperatures exceed safe limits.

9.1m Drop Test: Fire and impact tested to ensure the safe remains intact even if it falls through burning floors.

High-Security Locking: Features a programmable electronic keypad (4-16 digits) with a multi-point locking system designed to withstand internal explosions.

Easy Relocation: Includes a clip-on plinth for easy transport via forklift in the event of an emergency.

Technical Specifications

• External Dimensions: 1910 x 690 x 710 mm (H x W x D)
• Internal Dimensions: 1505 x 510 x 400 mm (H x W x D)
• Max Battery Capacity: 12,500Wh (12,500Wh per single battery)
• Weight: 416kg
• Shelving: 4 x Reinforced, height-adjustable shelves (100kg capacity each)
• Lock Type: Digital Electronic Lock with LED display

Optional Extras:

• Automatic Fire Extinguisher
  Specifically engineered condensed aerosol fire extinguisher for fast and effective suppression, designed for Lithium-Ion battery fires.

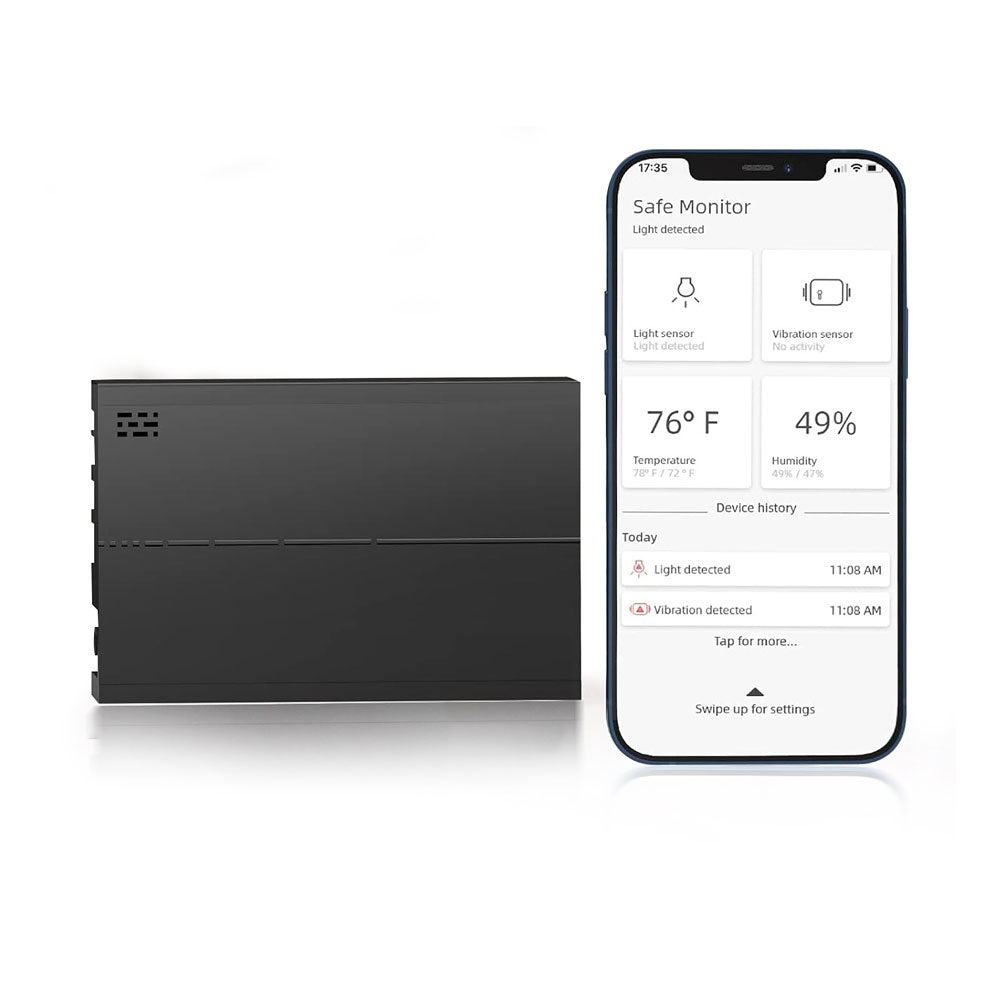

• Heat & Humidty Monitor
  The safe can be equipped with an internal temperature and humidity monitor that connects to a mobile app and alerts you if the set temperature limit is exceeded.
