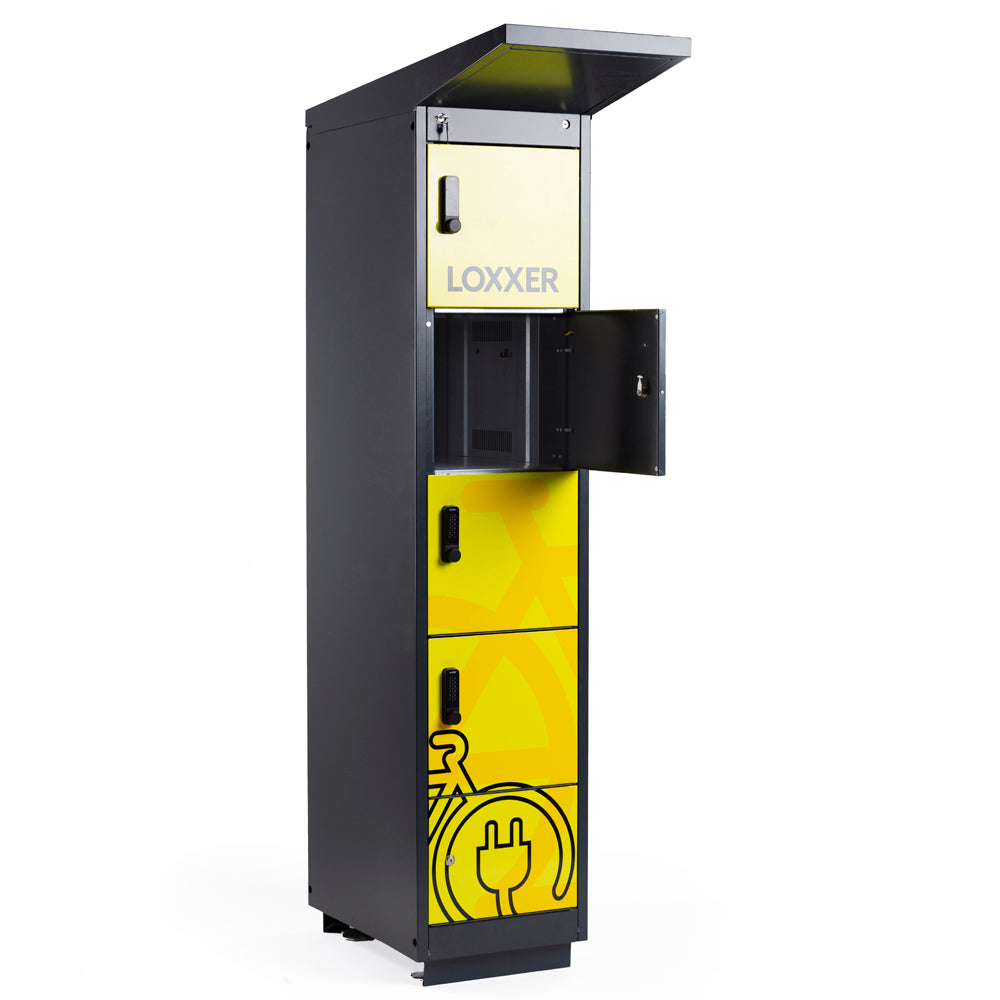

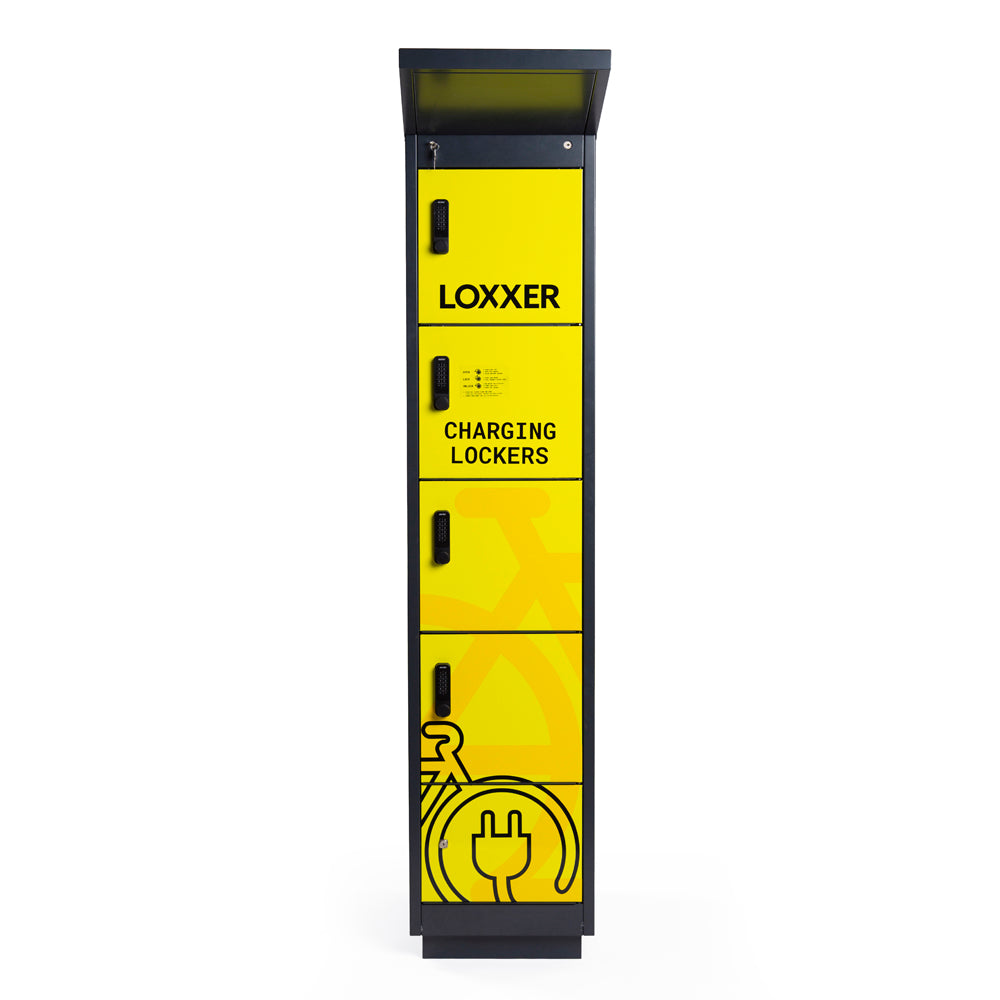

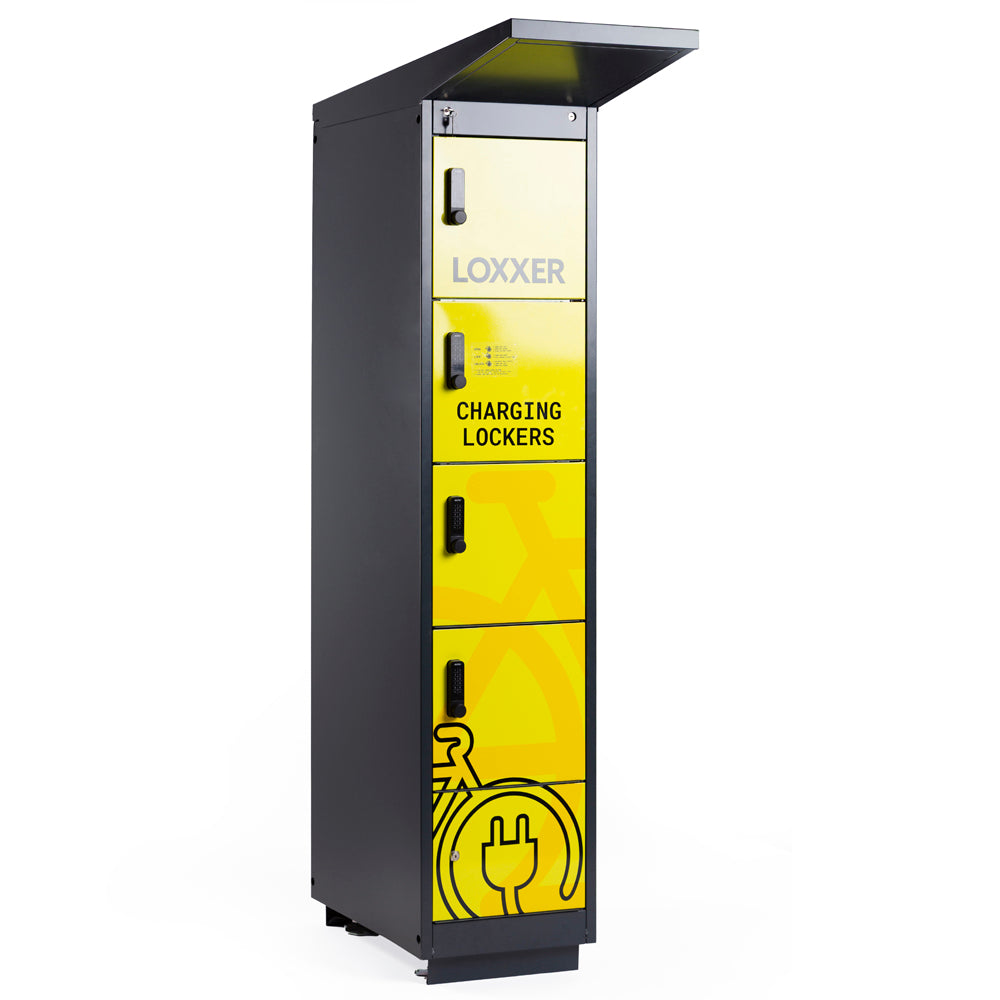

This storage and charging cabinet is designed for outdoor use to safely store and charge lithium-ion batteries, primarily intended for batteries of electric bicycles, e-scooters, and similar electronic devices. Easy placement next to the bike or e-scooter shed

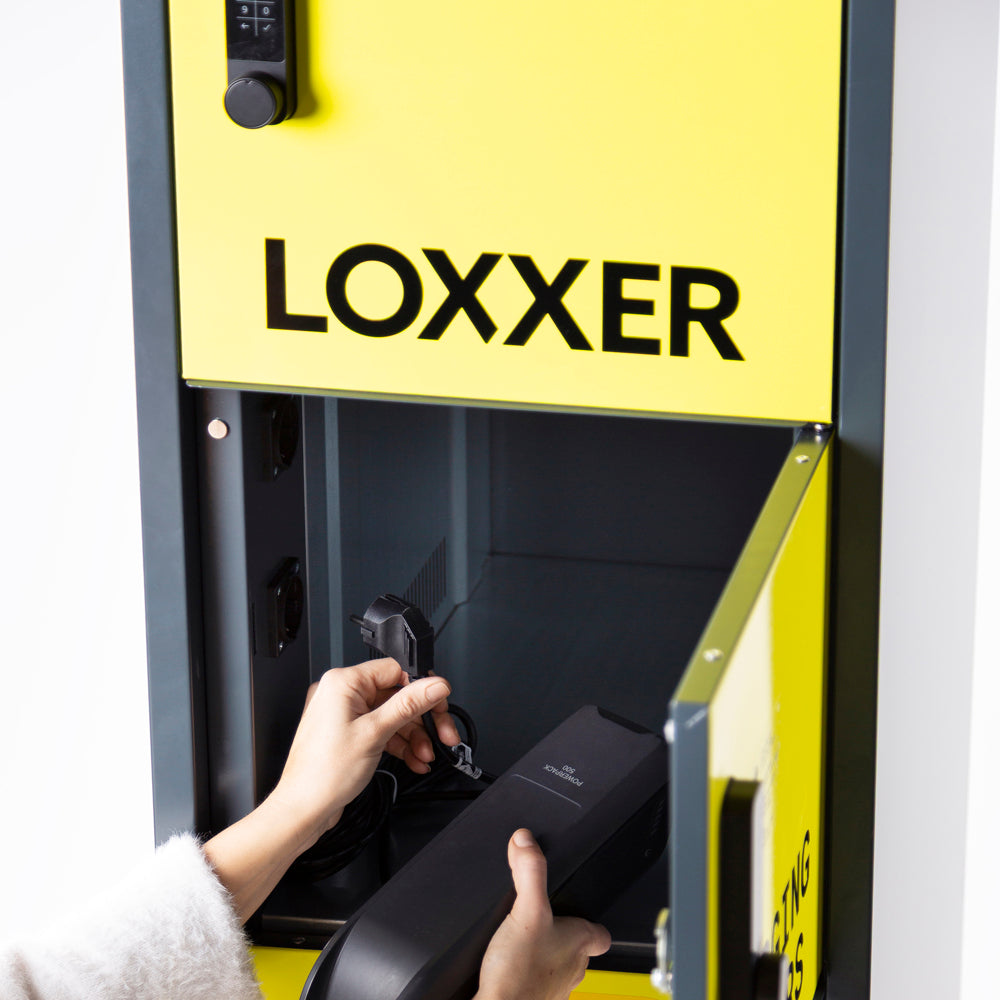

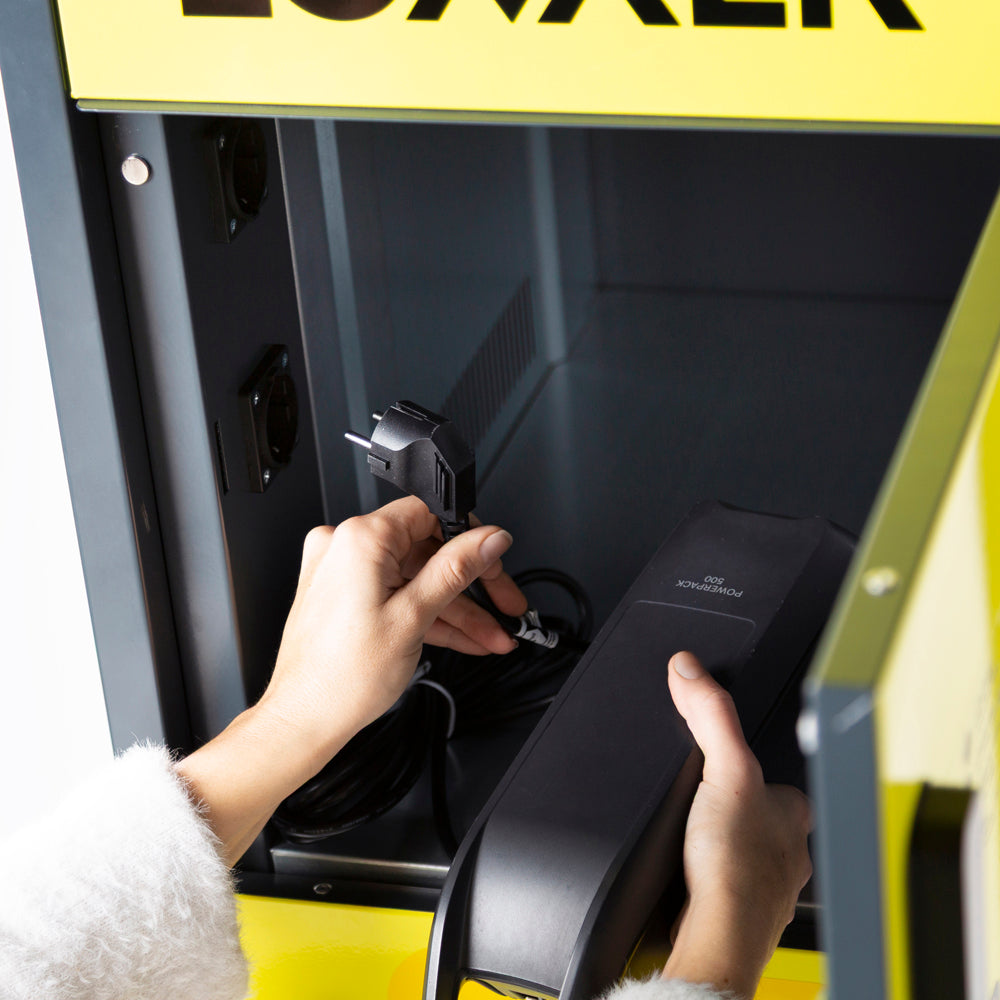

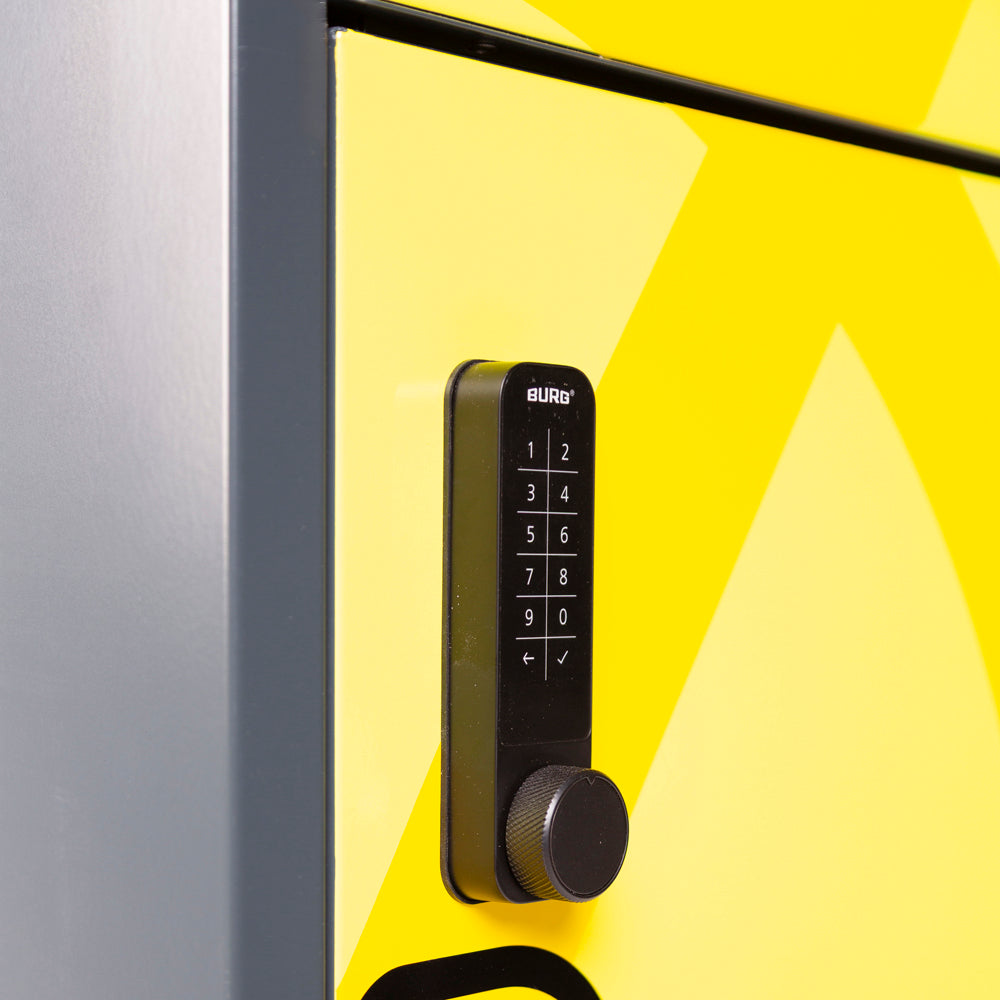

Each locker is equipped with a combination lock that can be individually secured with a self-selected code. This makes the locker cabinet ideal for travellers and commutersor tenants with an electric bike or scooter. The cabinet offers them a secure place to charge and store their battery.
Standard Equipment:
- Outdoor storage and charging cabinet

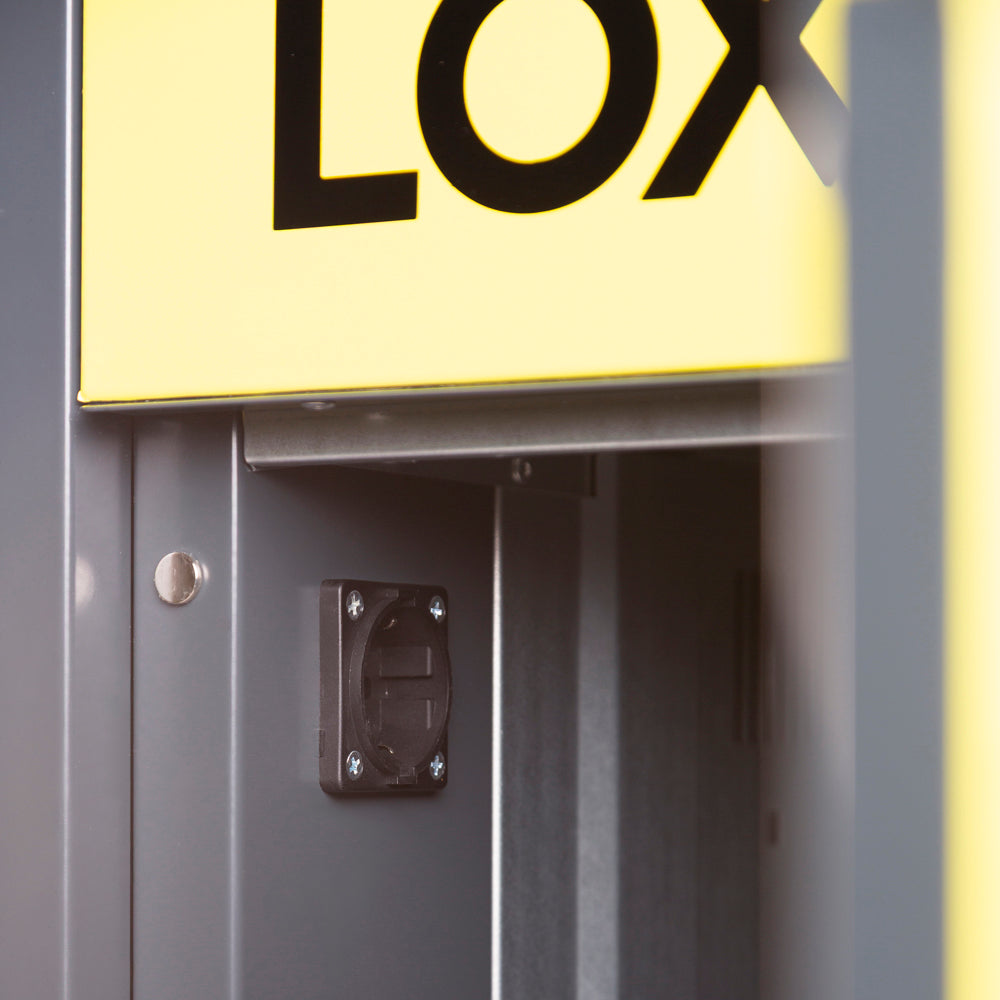

- 4 charging compartments (with 2x 230V/16amp socket per compartment)

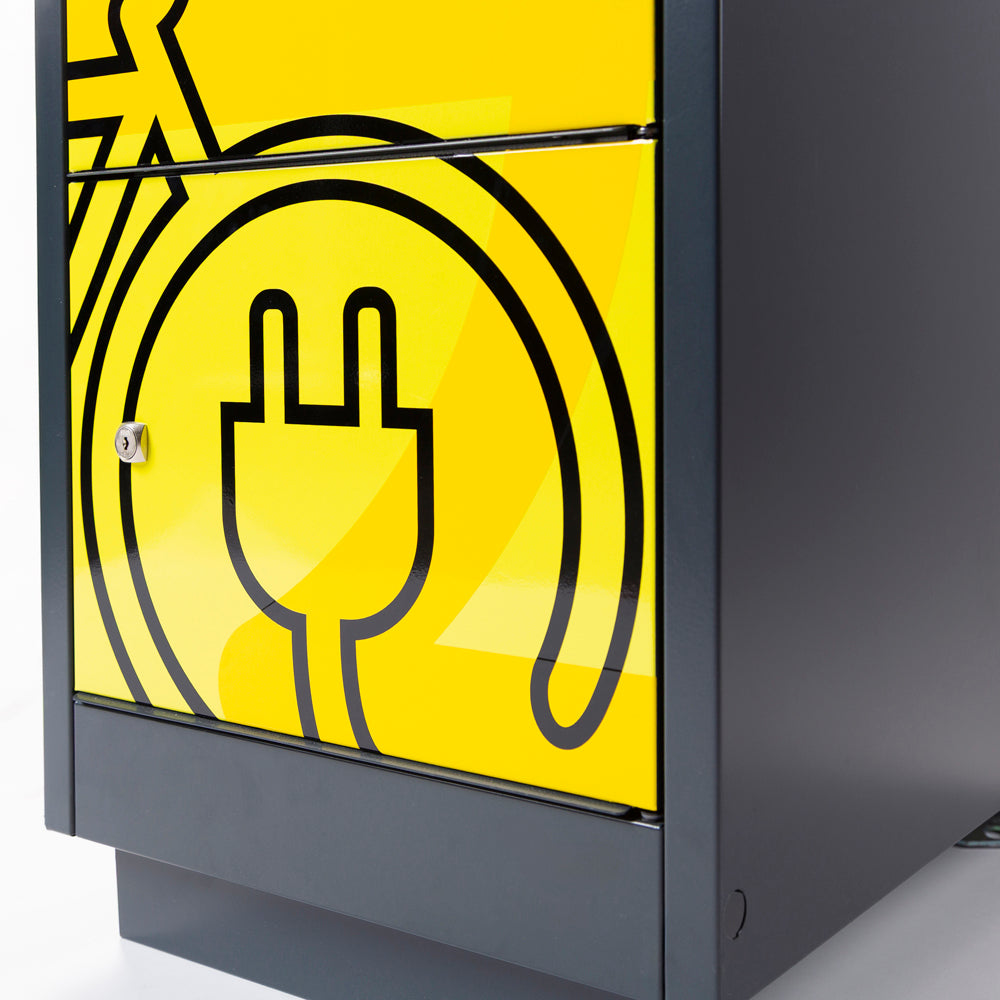

- Service compartment (bottom) with cylinder lock
- Fuse box for connection to external power supply
- Doors with integrated grounding cable
- Weatherproof (Resistant to moisture, dust and rust)
- Galvanised steel with UV-resistant powder coating
- Double skinned doors for additional weather protection
- Hooks for accessories (example: easy storage for helmets)
- Integrated canopy rain protection for the users
Optional Extra:
-
Aerosol Fire Suppression System (optional)
The cabinet can be equipped with a certified aerosol fire suppression system. Upon smoke detection, the aerosol will be immediately activated and spread throughout the entire space of the cabinet. The aerosol cools and controls the battery.
Technical Specification
- Weight 120kg
- Height Overall 2150mm
- Width 460mm
- Depth 600mm
- Power supply 1 x 230 (16A)
- 2 x 230v/16A sockets per compartment
- Lockers quantity x 4
- (Dimensions each locker*)
W x H x D: 400 x 368 x 600mm
