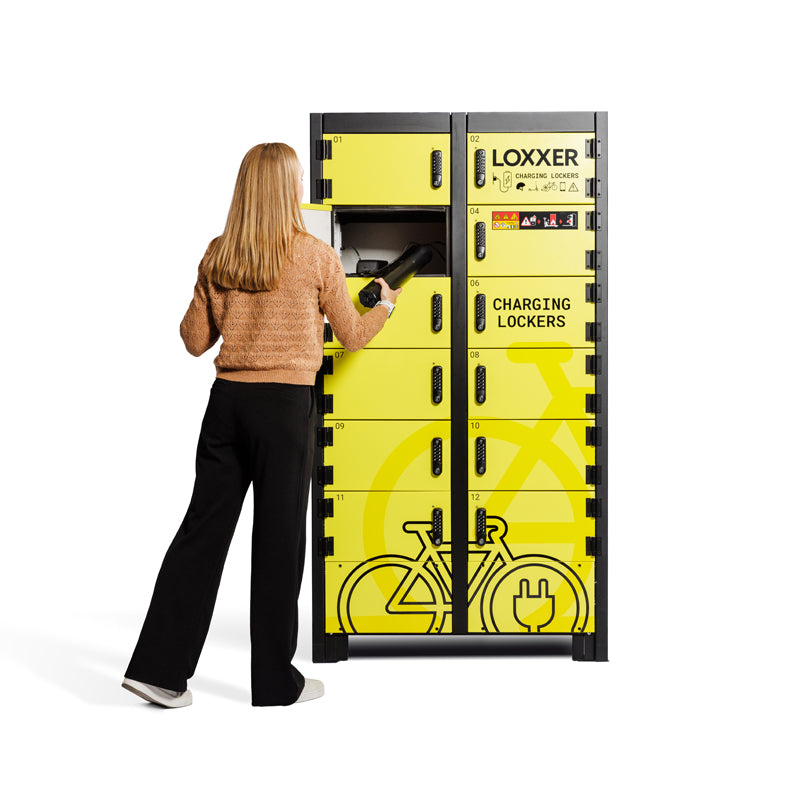

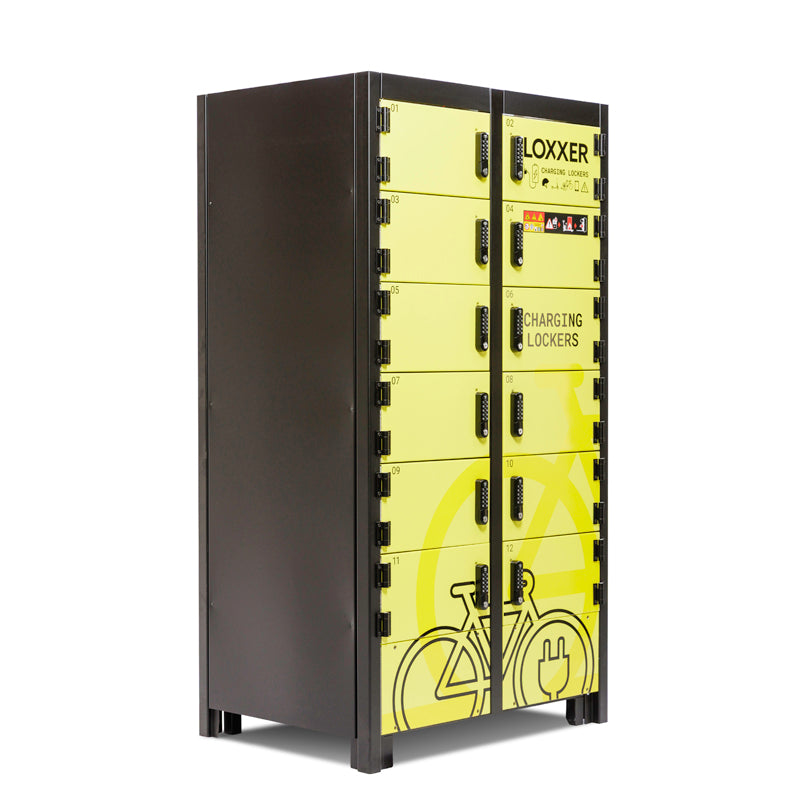

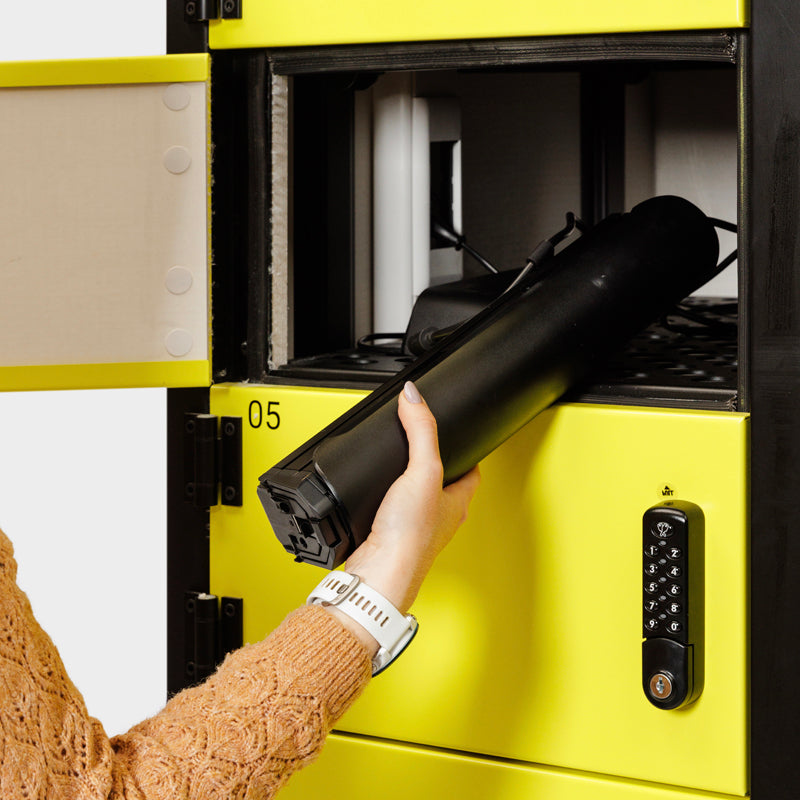

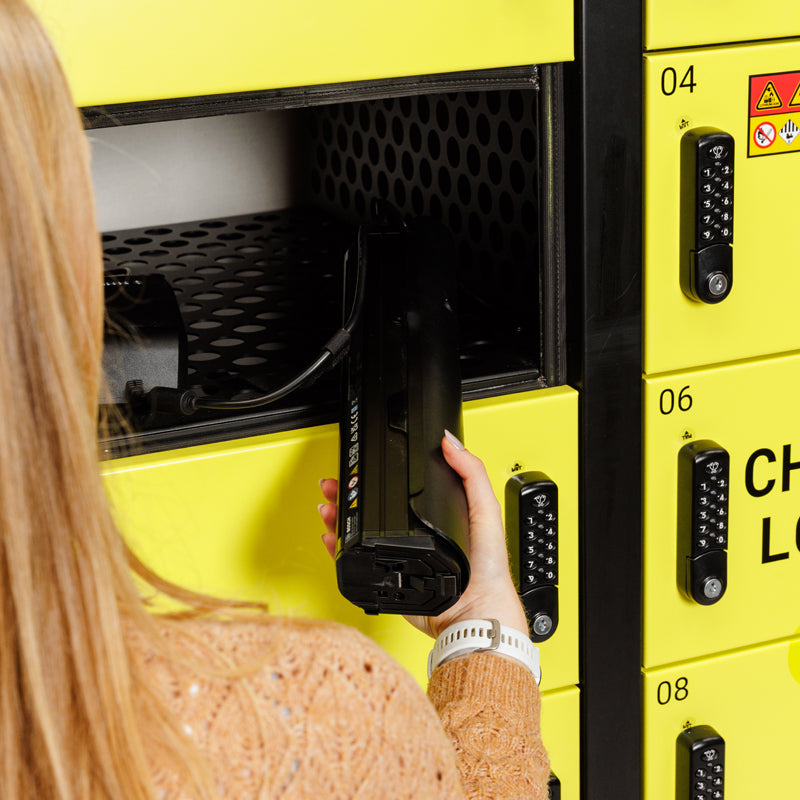

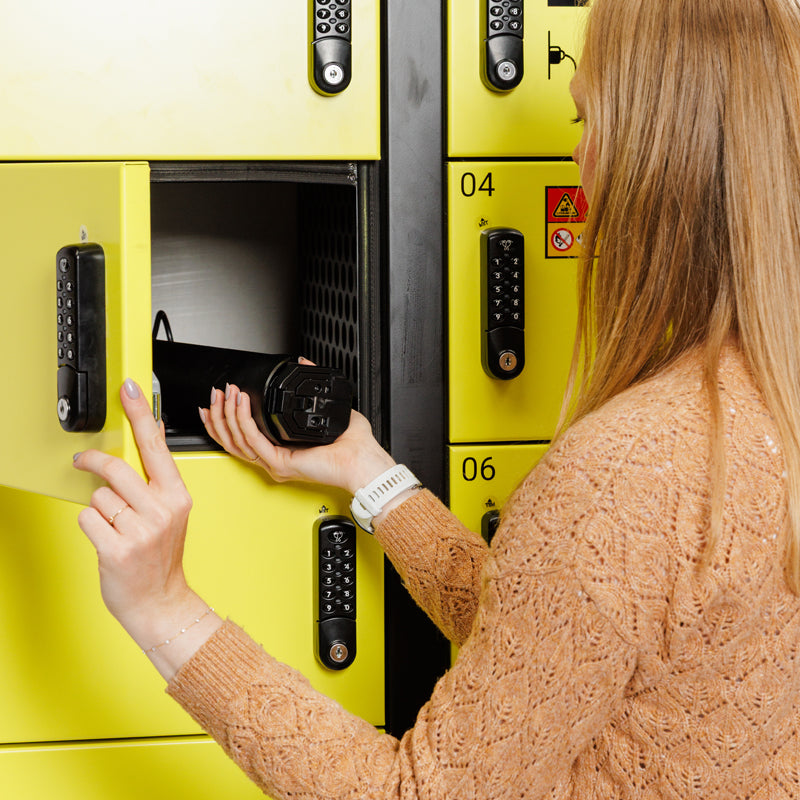

The locker charging cabinet is designed as an application for the safe charging of lithium-ion batteries, with a focus on batteries used for bicycles and scooters. The cabinet consists of 12 separate lockers that provide sufficient space for both a battery with charger.
Each locker is equipped with a combination lock that can be individually secured with a self-selected code. This makes the locker cabinet ideal for travellers and commuters with an electric bike or scooter. The cabinet offers them a secure place to charge and store their battery.
Lithium Fire Locker Data Sheet
Detection
Temperature and smoke detection with detection box for notification through software (SMS & email)
Aerosol suppression system
Lockers

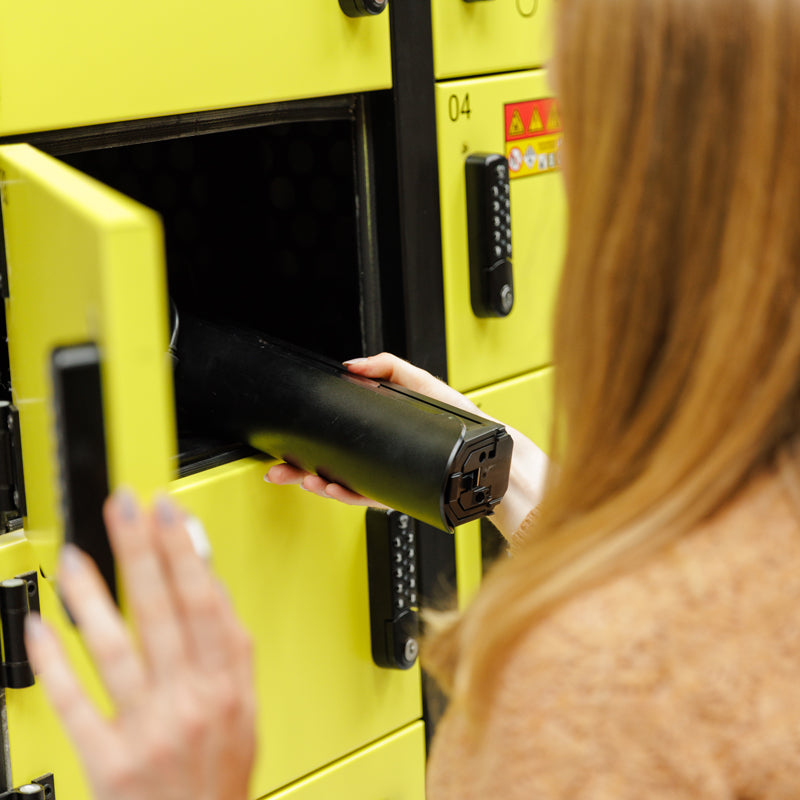

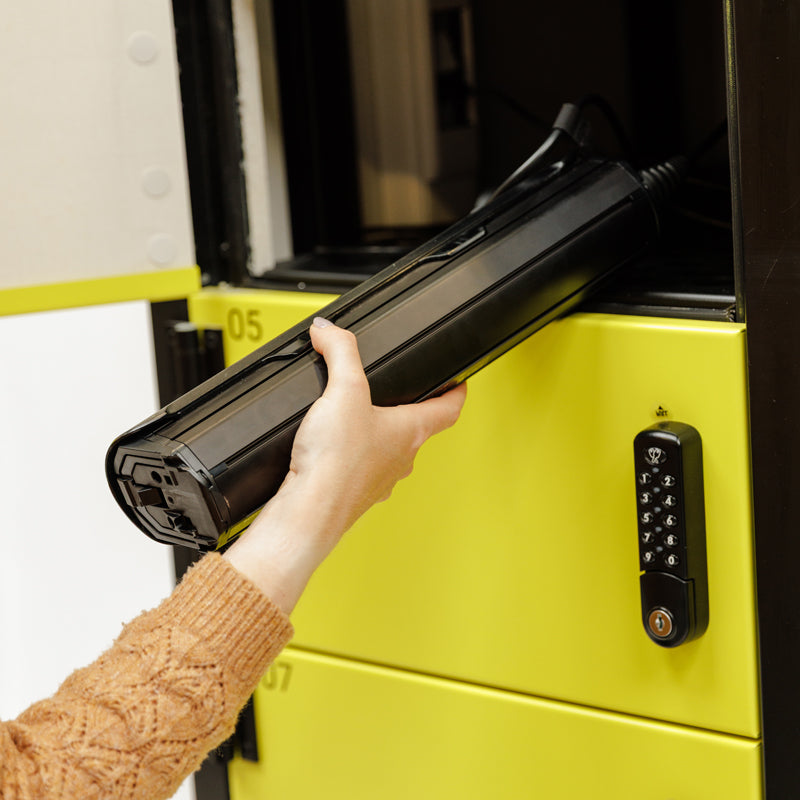

12 lockers, each equipped with a combination lock and offering sufficient space for the storage of a lithium-ion battery and charger.
Outlets

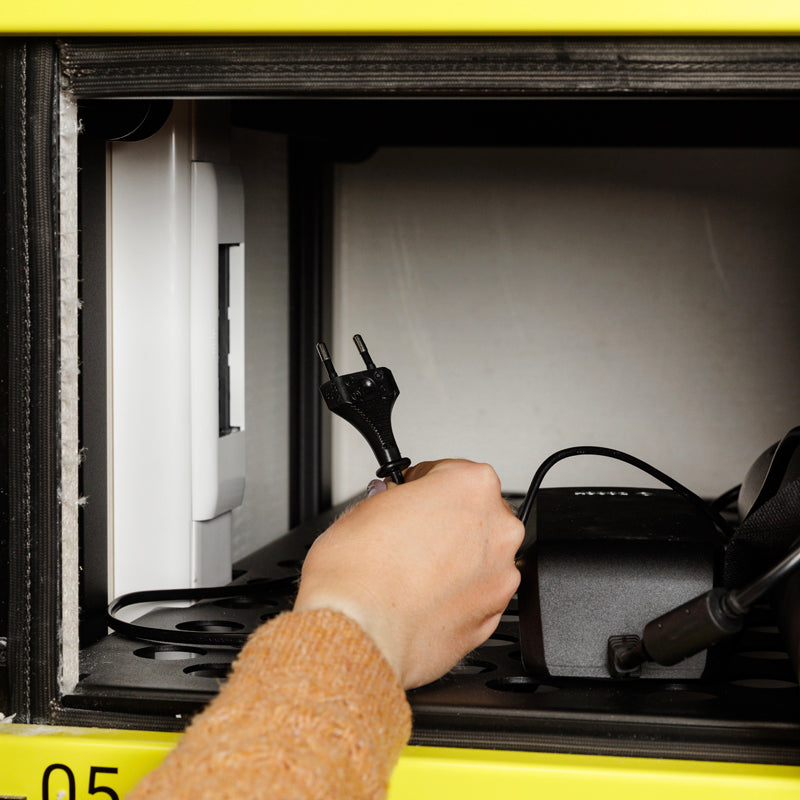

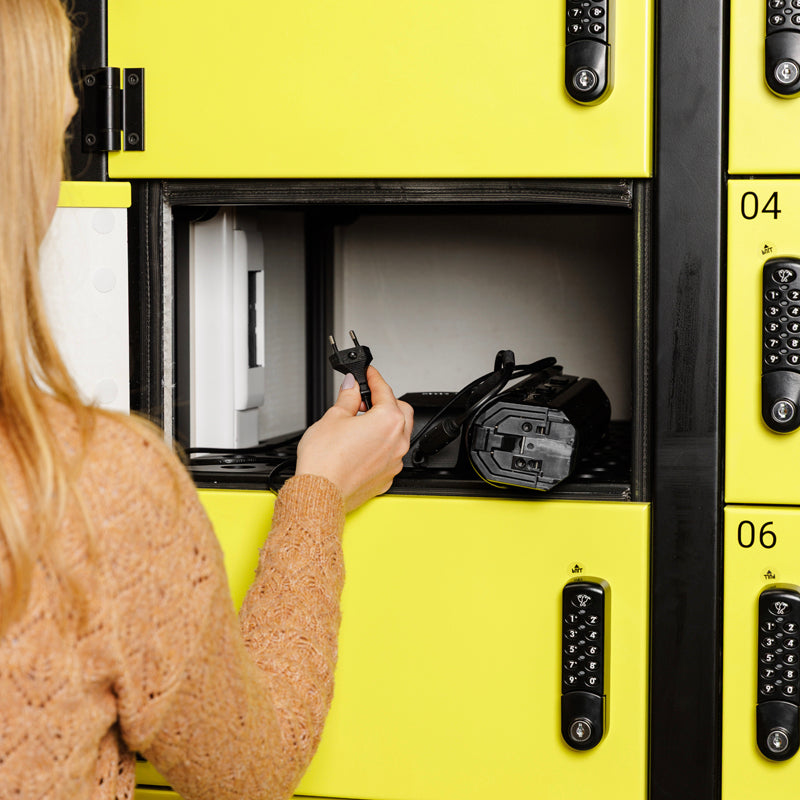

Each locker is equipped with an outlet for charging a lithium-ion battery with a maximum current rating of 16A.
Doors

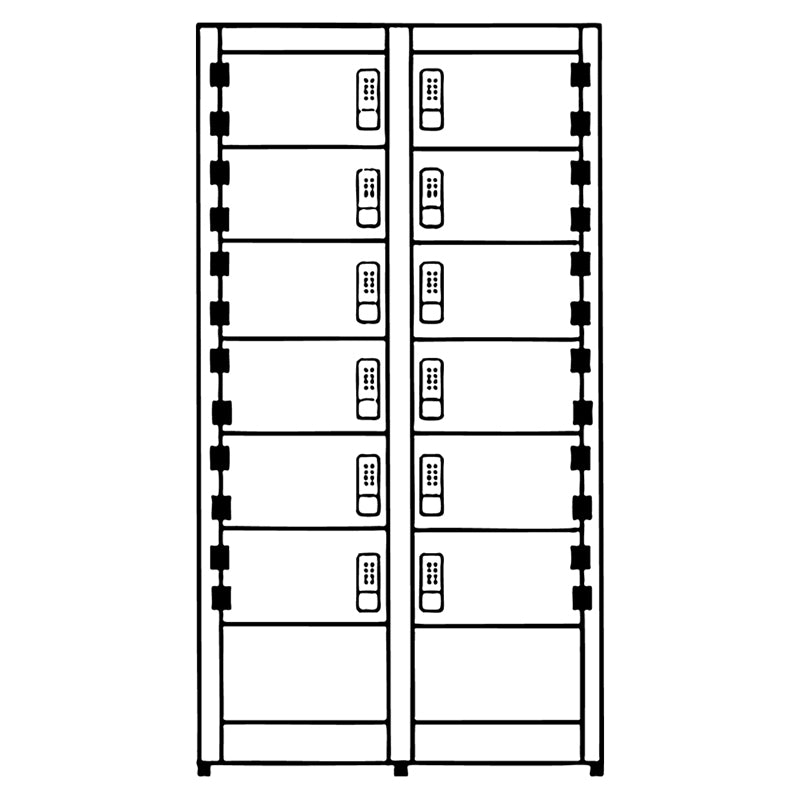

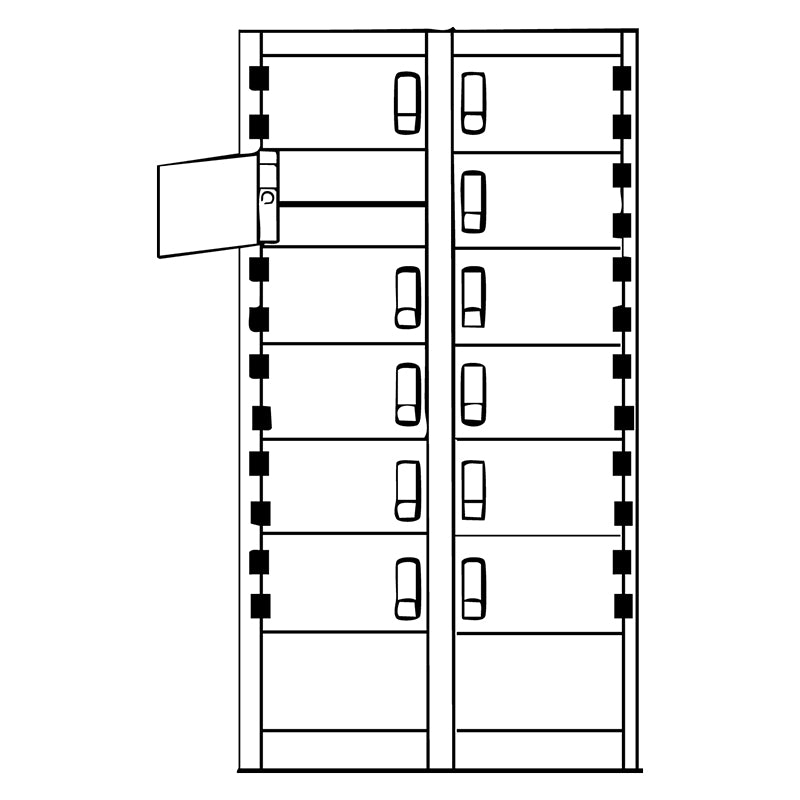

12 hinged locker doors
Support feet
Adjustable feet to level the cabinet. Removable (magnetic) board at the bottom.
Pressure relief valve
In the event of the explosion of a lithium-ion battery, significant pressure builds up inside the cabinet. The pressure relief valve will reduce the accumulated pressure to a normal atmospheric value.
Ventilation
The cabinet is equipped with forced ventilation to dissipate heat buildup. In case of smoke detection, forced ventilation and power supply are shut off.
Intelligent software
Power supply
Standard 380 V
Alarm
Audiovisual alarm in the form of a rotating light and siren
Technical Specification
