Harlequin 9250 Litre Bunded Oil Tank - 9250ITE

Harlequin 9250 Litre Bunded Oil Tank - Harlequin 9250ITE.
This Plastic Bunded Oil Tank from Harlequin is ideal for commercial installations. With a 9250 litre capacity this bunded tank has a 10 year warranty. The 9250ITE comes with Apollo Electronic Gauge, LRC Overfill Prevention Valve and Bottom Outlet Fitting Kit.
Harlequin Manufacturing have been making these bunded oil tanks for over 20 years so they have a proven track record and are viewed as the market leaders but still the best value around.
Each tank is visually inspected for quality and tested with compressed air to ensure tank is air tight before it leaves the factory.

Delivered complete with:

• Apollo Standard Ultrasonic Contents Gauge ( Electronic Oil Level Monitor)
• LRC Overfill Prevention Valve (valve fitted inside tank to make sure it cannot be overfilled)

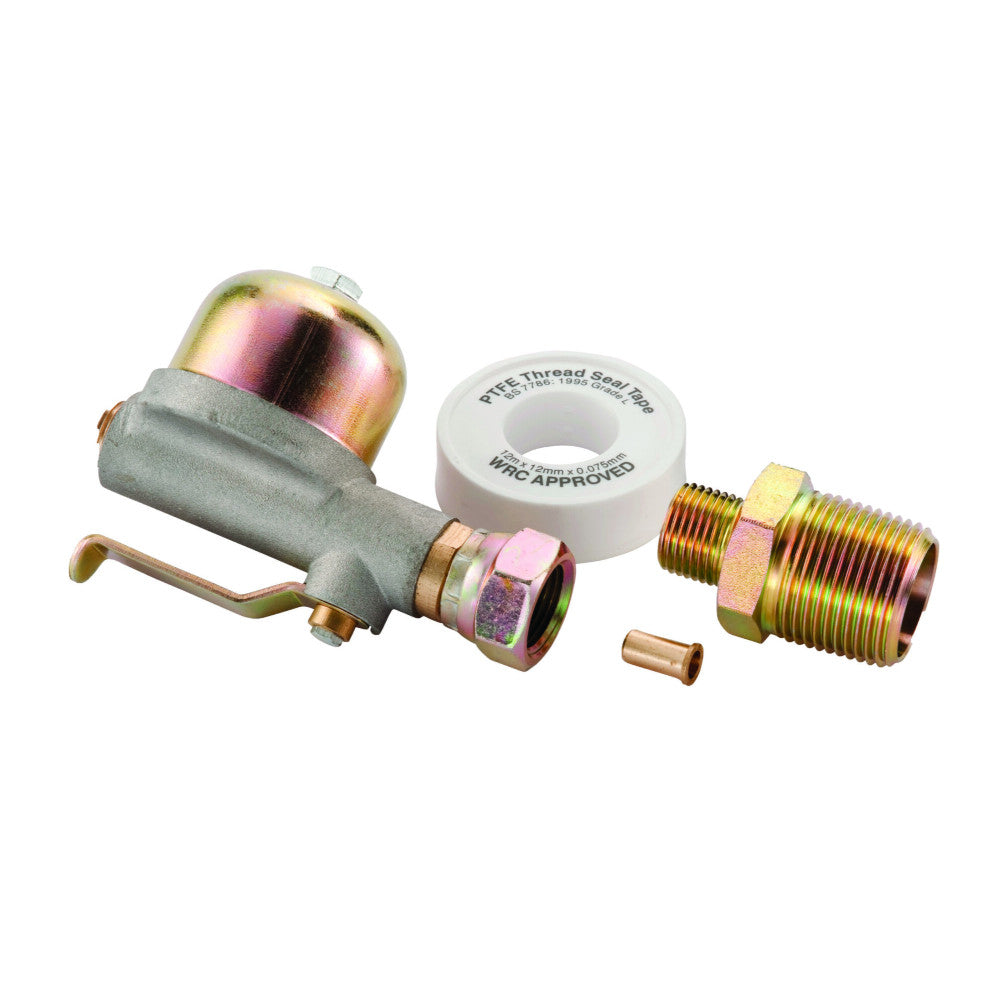

• Bottom Outlet Fitting kit (everything you need to connect tank to pipework)
• Bund Monitor (monitors the bund to detect any leak and will sound alarm)

• 2" Fill Point (standard for fuel delivery lorries to fix to)
• 4" Inspection point (for you to view contents of tank)
• Vent (tank to bund vent for gases to escape)

• 33mm Drilled and Plugged Gauge Hole (to fit Apollo electronic contents gauge if needed)
• 1" BSP Bottom Outlet (industry standard to fit a bottom outlet fitting kit to your pipework)
• Lockable Lid (secure cover to lock away access to fittings)
• Bunded Tank (outer tank holds a minimum of 110% of inner holding tank)

Tank Dimensions:
Length: 3140mm
Width: 2510mm
Height: 2820mm
Weight: 505kg
Brim-full Capacity: 9255 litres

Installation Requirements:
Cement Base Length: 3740mm
Cement Base Width: 3010mm

Further Information Downloads
9250ITE Drawing
9250ITE Specification Sheet

9250 Litre Volume Table
