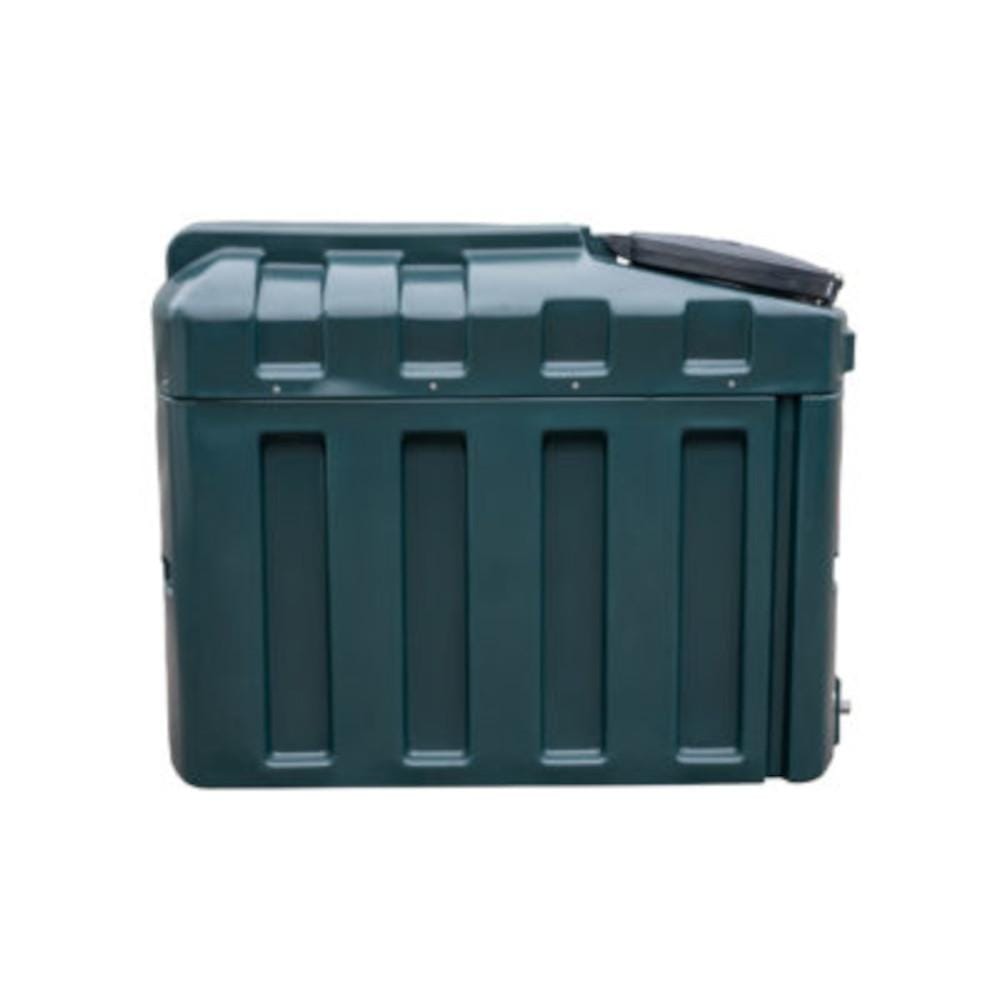

Harlequin 650 Litre Bunded Oil Tank - 650ITE

Harlequin 650 Litre Bunded Oil Tank - Harlequin 650ITE.
This Plastic Bunded Oil Tank from Harlequin is ideal for domestic installations. With a 650 litre capacity this bunded tank is only 670mm wide so it will fit through most standard doorways (please measure your doorway first though!) The 650ITE comes with Apollo Electronic Gauge, LRC Overfill Prevention Valve and Bottom Outlet Fitting Kit.
Harlequin Manufacturing have been making these bunded oil tanks for over 20 years so they have a proven track record and are viewed as the market leaders but still the best value around.
Each tank is visually inspected for quality and tested with compressed air to ensure tank is air tight before it leaves the factory.

Delivered complete with:

• Apollo Standard Ultrasonic Contents Gauge ( Electronic Oil Level Monitor)
• LRC Overfill Prevention Valve (valve fitted inside tank to make sure it cannot be overfilled)
• Bottom Outlet Fitting kit (everything you need to connect tank to pipework)
• 2" Fill Point (standard for fuel delivery lorries to fix to)

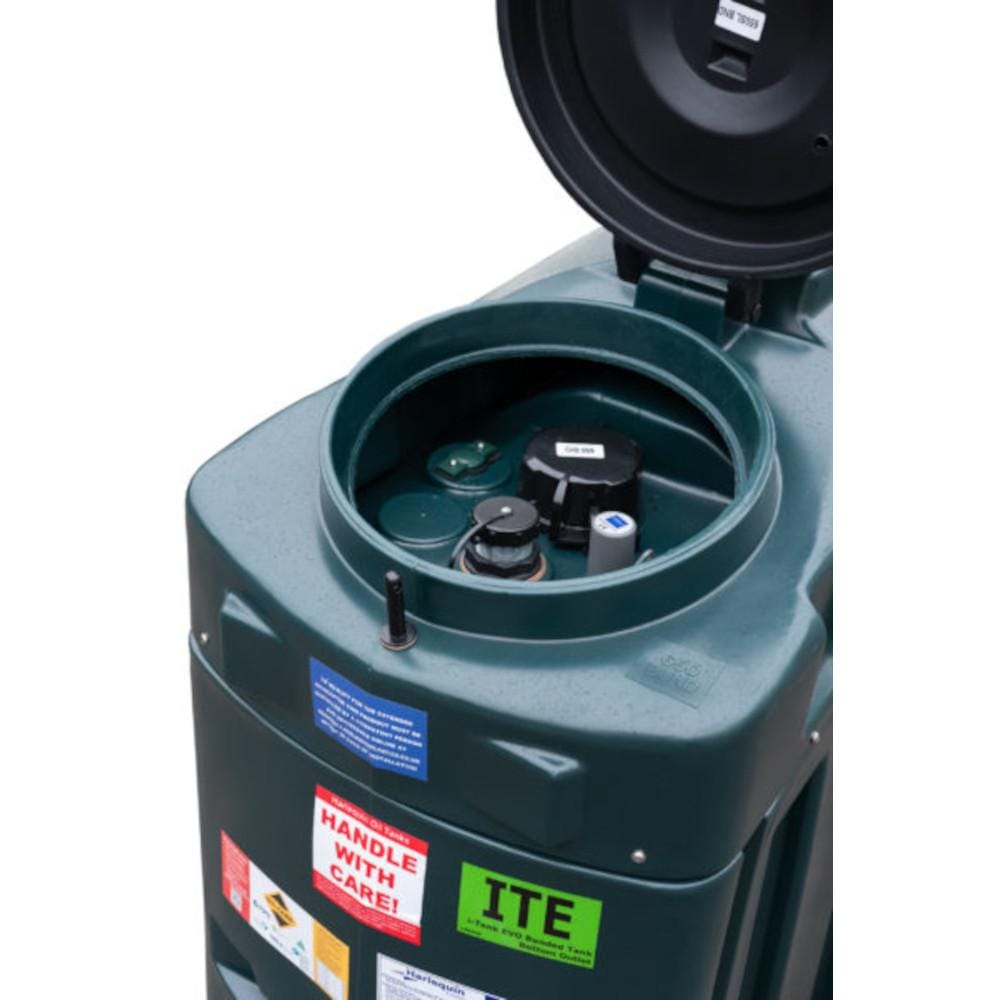

• 4" Inspection point (for you to view contents of tank)
• Vent (tank to bund vent for gases to escape)

• 33mm Drilled and Plugged Gauge Hole (to fit Apollo electronic contents gauge if needed)
• 1" BSP Bottom Outlet (industry standard to fit a bottom outlet fitting kit to your pipework)
• Lockable Lid (secure cover to lock away access to fittings)
• Bunded Tank (outer tank holds a minimum of 110% of inner holding tank)
• OFCERT License No: : 0644051004R

Tank Dimensions:
Length: 1715mm
Width: 670mm
Height: 1330mm
Weight: 116kg
Brim-full Capacity: 1673 litres

Installation Requirements:
Cement Base Length: 2315mm
Cement Base Width: 1270mm

Further Information Downloads
650ITE Drawing
650ITE Specification Sheet

650 Litre Volume Table
