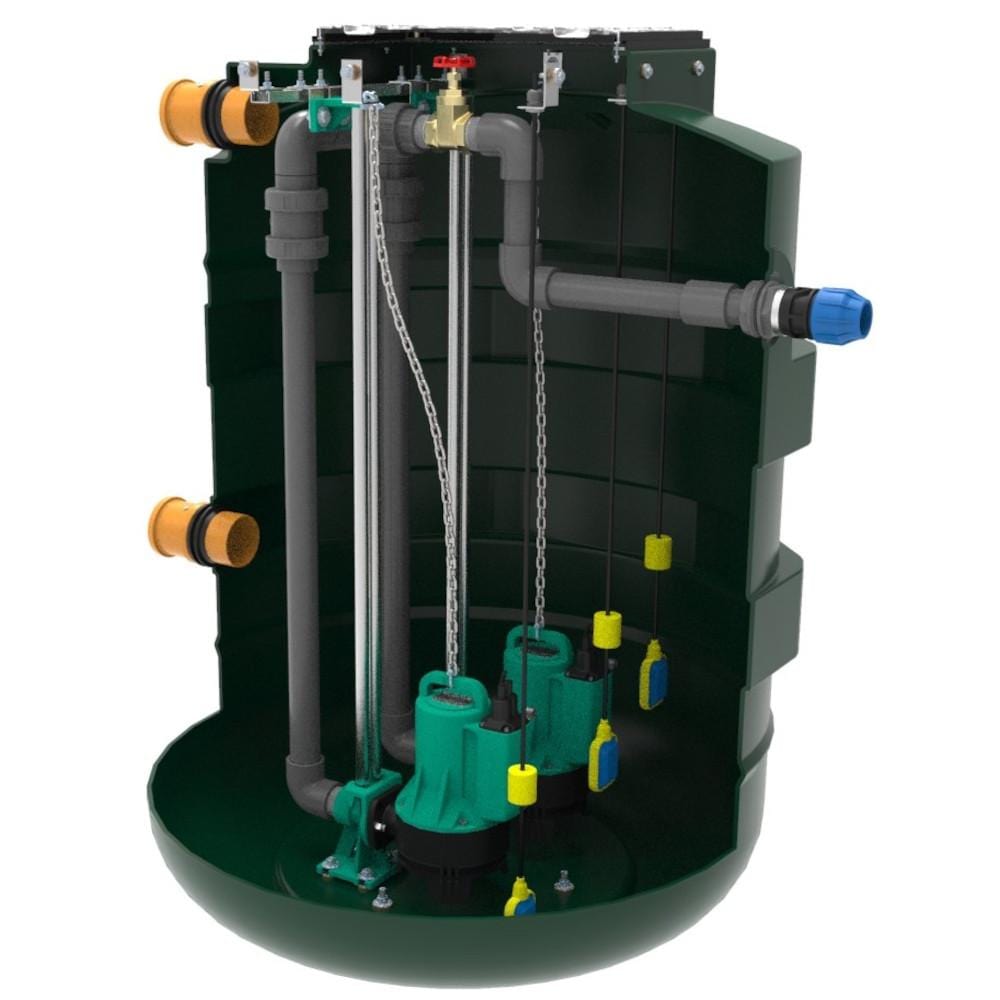

The Harlequin 1550 Litre Sewage Twin Pump Station is ideal to use when gravity drainage cannot be achieved on site, particularly for smaller extensions or toilets. This pump chamber is supplied with twin pumps. Harlequin twin pump systems are supplied complete with a high-level alarm supplied as standard, alternating twin pumps which allow the station to continue operating in the event of a single pump failure, control panel to manage the pump operation and warn of a pump failure. This packaged Sewage Twin Pump Station is delivered ready to install and all internal fixtures are ready to use; all that you need to do is install pipework to and from the tank. As standard the Harlequin Sewage Twin Pump Stations give waste water a 9m lift. Our packaged pump station systems are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards. This version stores 1550 Litres of foul water (sewage) or surface water and comes with two submersible pumps that can handle solids up to 50mm. A single pump version of this unit is available here.
- Capacity: 1550 Litres
- Tank Height: 1625mm
- Tank Diameter: 1200mm
- 2 X DAB Stainless Steel 230 Volt Pump
- High Level Alarm
- Control Panel
- Moulded from durable medium density polyethylene material
- 110mm inlet connection
- 63mm outlet connection
- 110mm services duct
- Integrated lifting eyes for ease of handling and installation
- Double sealed 600x600mm galvanised steel manhole cover, c/w locking screws
- Brass gate valve and PVC Union connection for ease of servicing
- Stainless steel pump lifting chain(s)
- Non-return valve
1550LT Pump Station Specification Sheet
1550LT Pump Station Drawing
Harlequin Pump Station Installation Guide
- Durable & Stable Product – Made from tough durable polyethylene, it is easy to transport and has a wide base for stability.
- Easy to install – Simple yet effective pipework makes it extremely easy to install.
- Saves Money – With an easy installation due to the systems compact size and lightweight, it also promotes low maintenance reducing costs.
- Compact System – A perfect compact solution providing 24-hour pump & storage capabilities for domestic applications.
