10000 Litre GRAF CARAT XL Garden Comfort Underground Rainwater Harvesting System (Garden Irrigation)

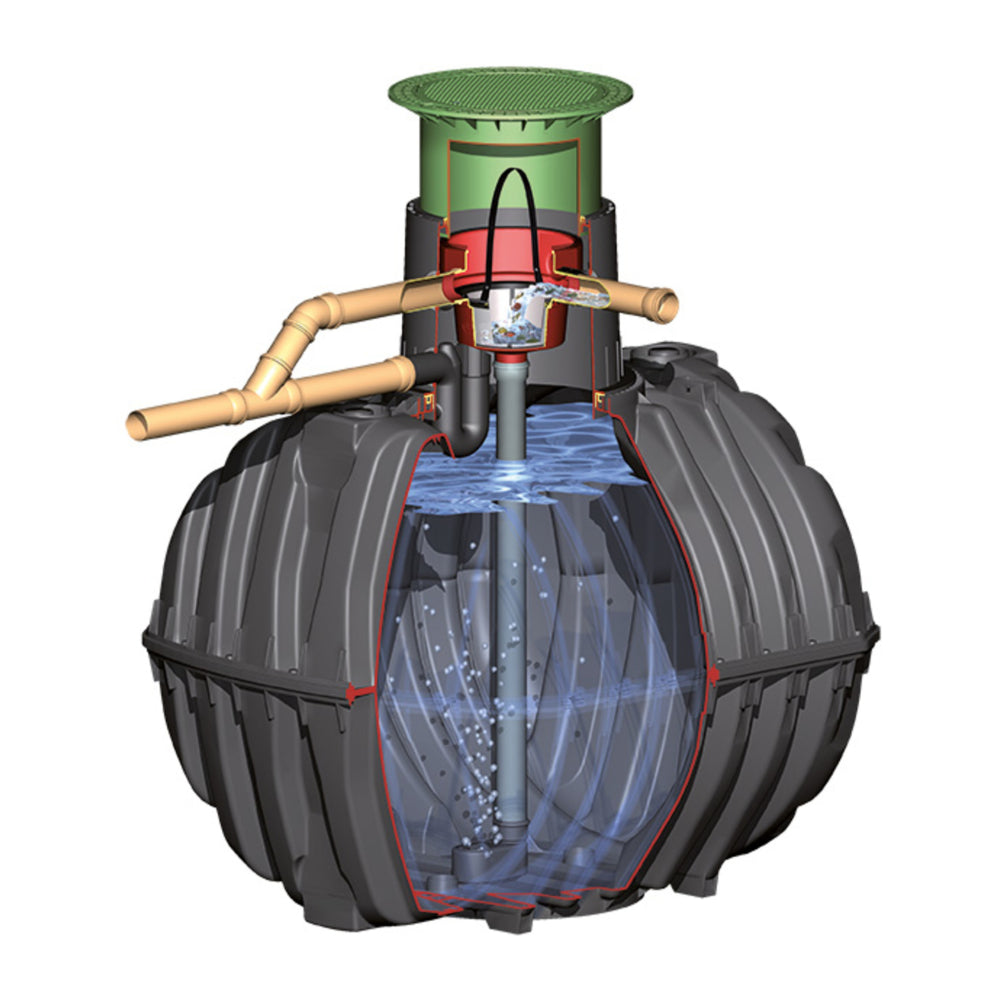

The Graf Carat Garden Comfort system is designed for irrigation and outside cleaning purposes. Rainwater is collected from the roof of the property and is fed into the 10000 litre underground tank via the downpipes. The Graf Carat 10000 Litre Package comes as standard with a PE Telescopic dome shaft so that it can be adjusted to meet the ground level, there is the option to have this in Cast Iron if the tank needs to have vehicles driving over it. On entry to the underground tank, the water passes through a filter, to prevent any debris going into the tank. There is a pressure sensitive pump located in the underground tank. When a valve or tap is opened, water will be pumped under pressure until the valve is closed, allowing for the system to repressurise turning power off to the pump.

Carat S Garden Comfort Package Brochure

Specification:

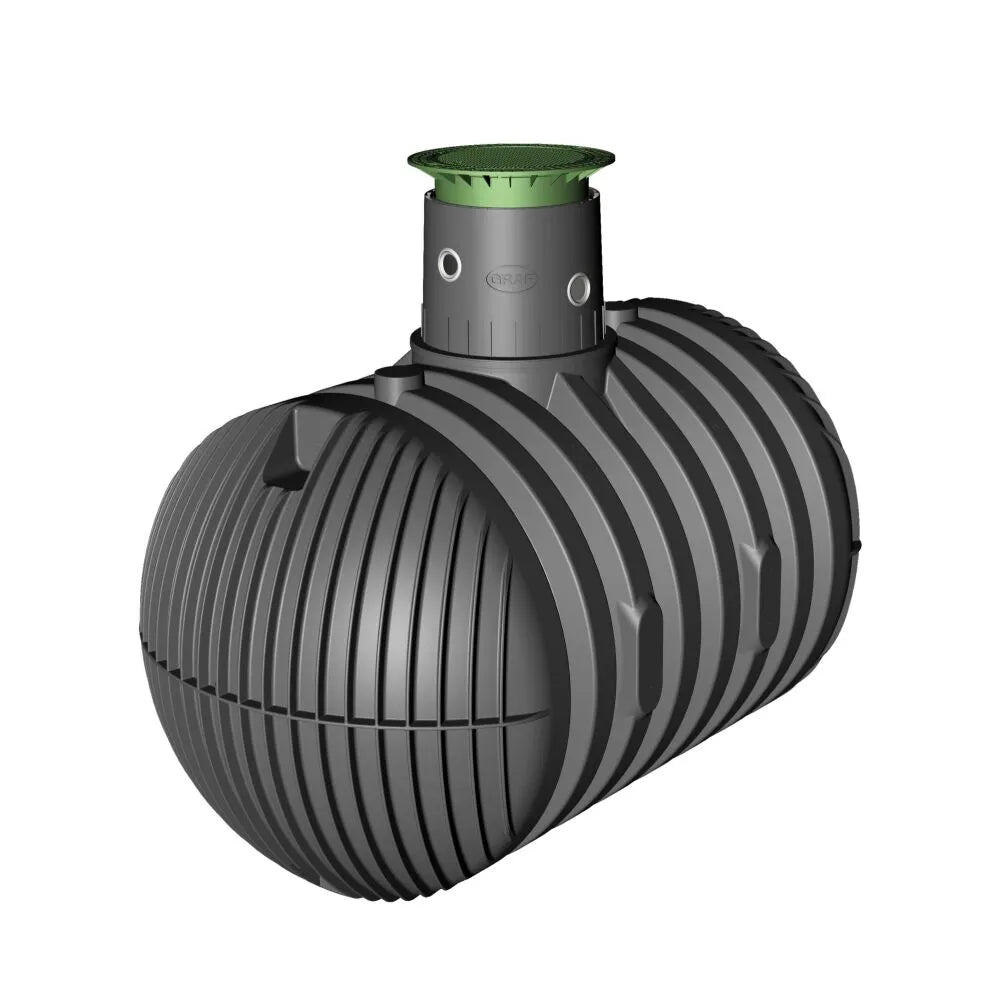

• 10000 Litres plastic tank
• Telescopic dome shaft, with PE-lid (for pedestrian loading)
• Optional vehicle loading lid (if ordered with optional lid)

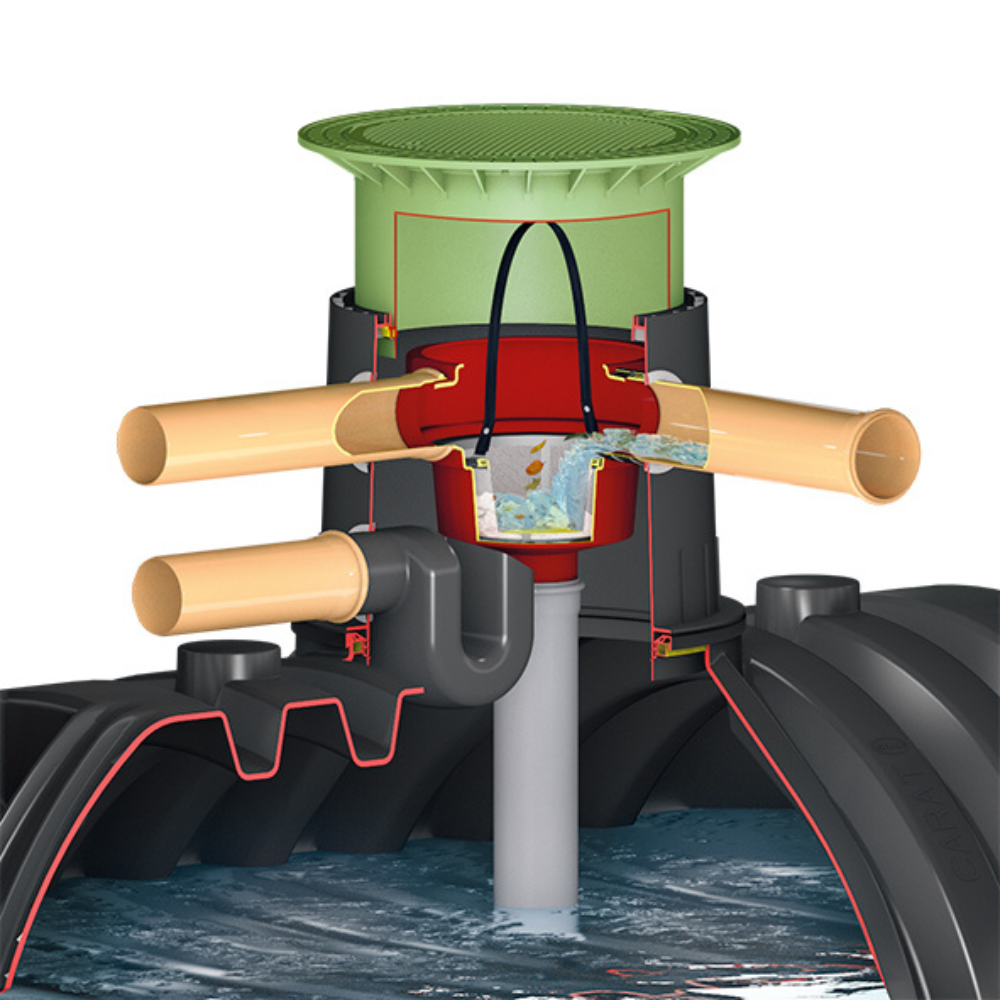

• Removable Filter with Sieve Mesh Width 0.35mm

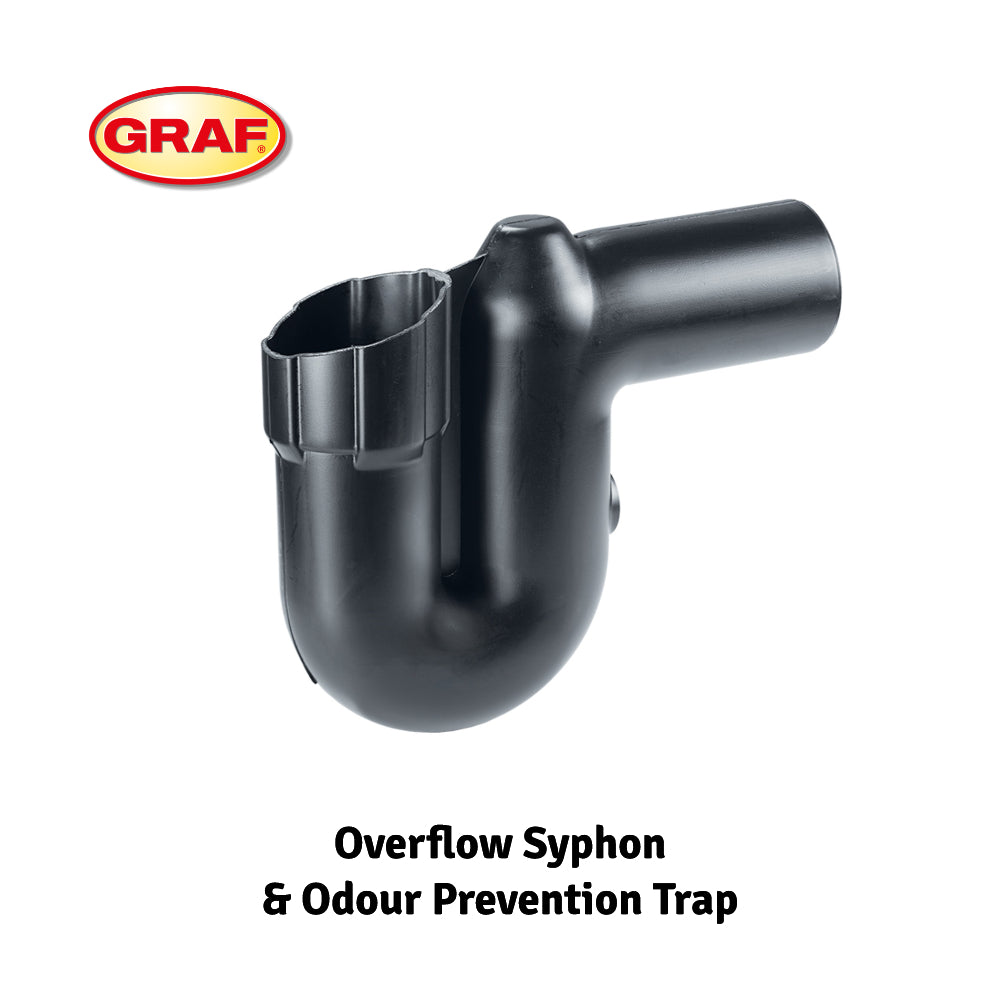

• Overflow siphon with integrated rodent guard
• Integra INOX submersible pump
• Internal & external hose connection box

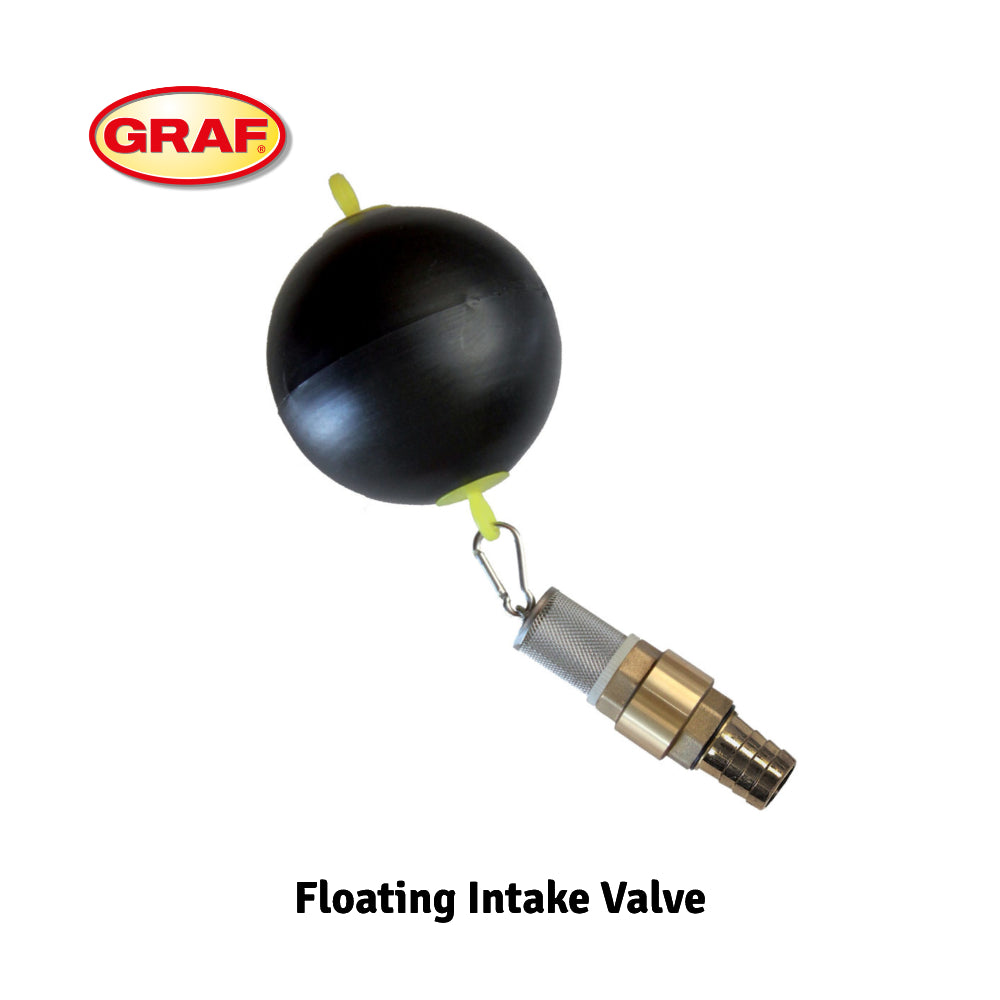

• Floating suction set with fine filter and hose
• 10m pressure hose

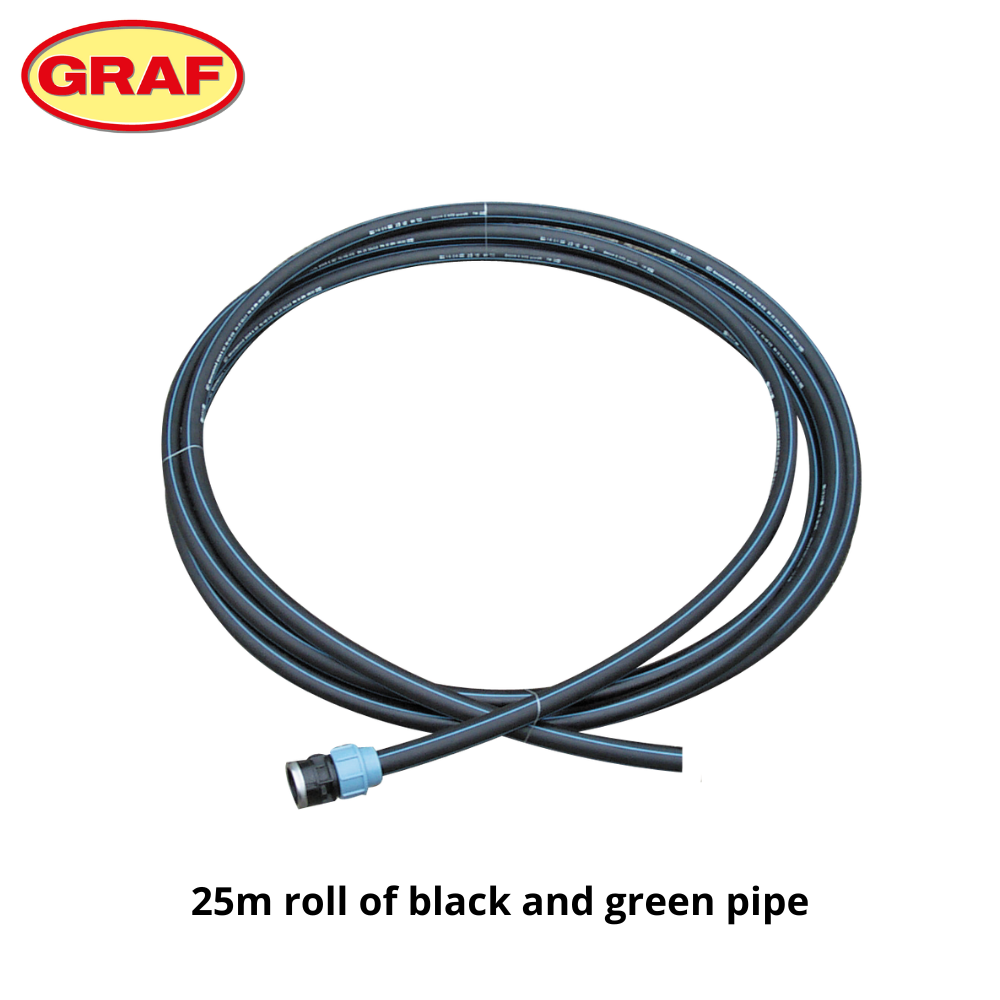

• 25m roll of rainwater harvesting pipe (25 mm, with fittings)
• Easy transport due to low weight
• The Platin tank can be extended in any way
• 15 Year Warranty on Tank

To be Supplied by Others:

• 100mm diameter duct pipe to contain; float sensor cable, power cable for pump, also bringing mains water to underground tank as and when required
• 100mm diameter drainage pipe connected from downpipes to the inlet at the top of the tank (all downpipes brought into one pipe for connection to the filter)
• 100mm diameter pipe for overflow from the tank to mains drainage network or soakaway

Tank Dimensions:

• Length: 3520mm
• Width: 2240mm
• Height: 2895mm
• Weight: 455kg
• Technical Drawing

Common Applications:

• Garden Irrigation
• Cleaning cars
• Washing windows
• Power washing drive/patio
• Outside tap and hose

Watch the Graf Installation Video
