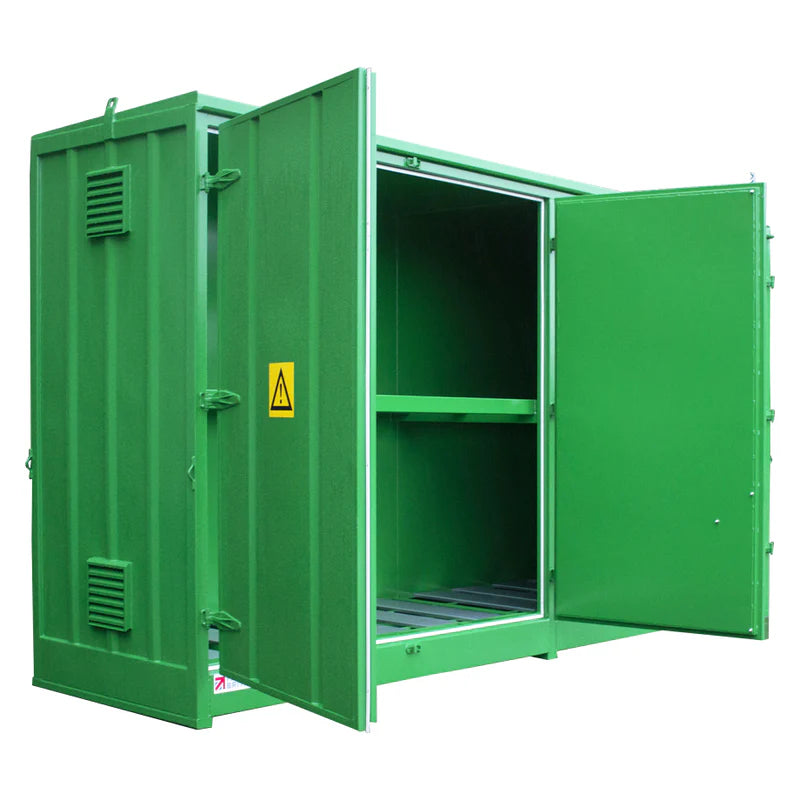

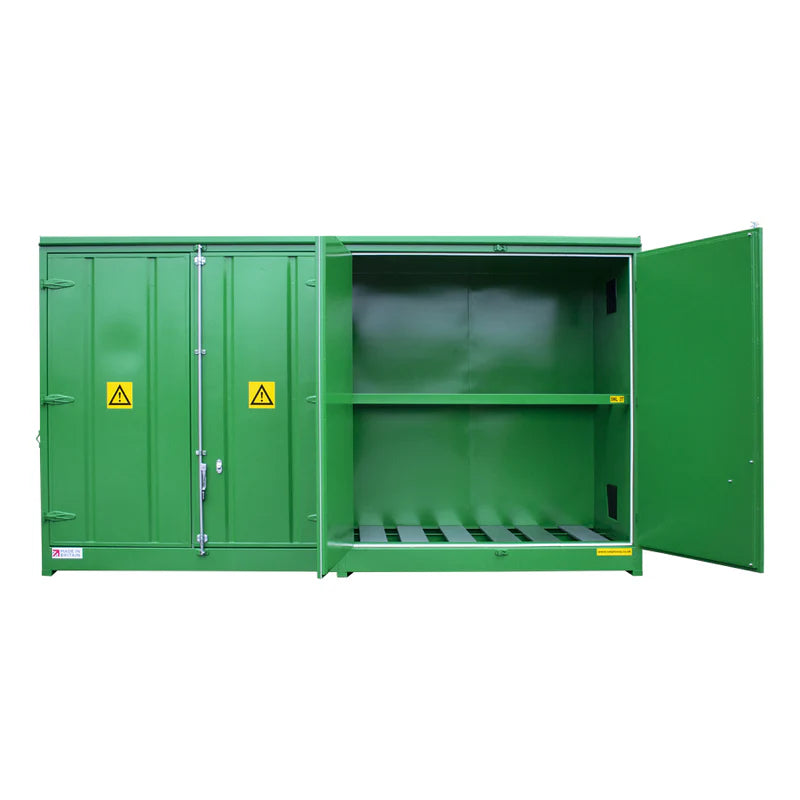

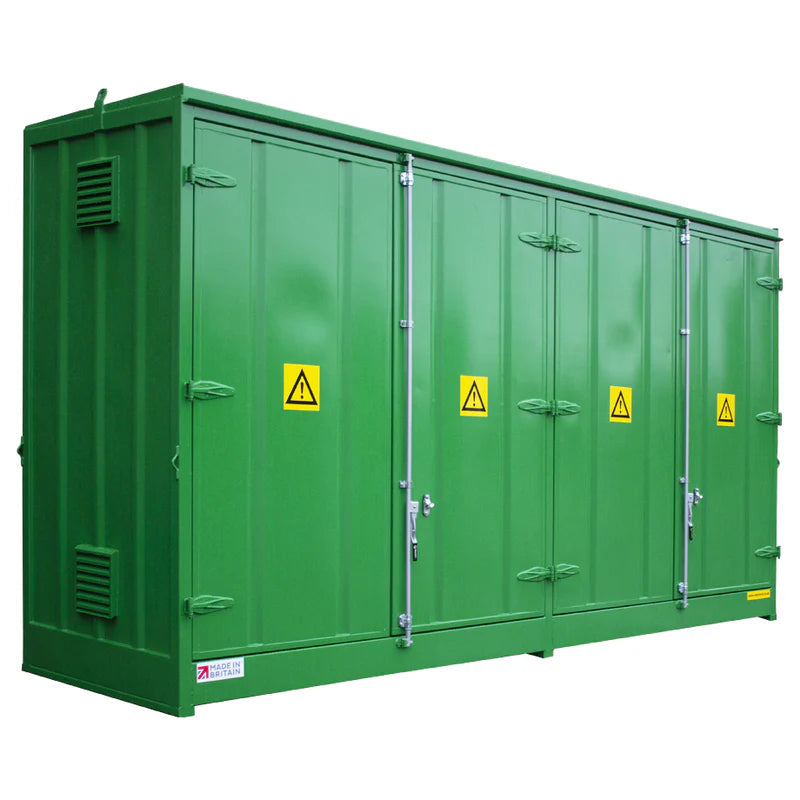

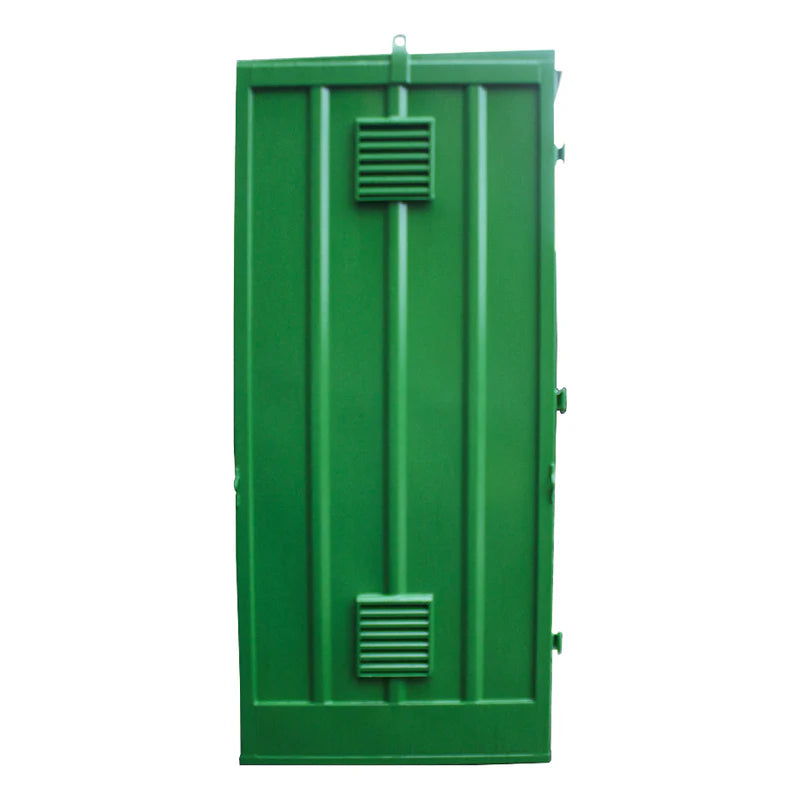

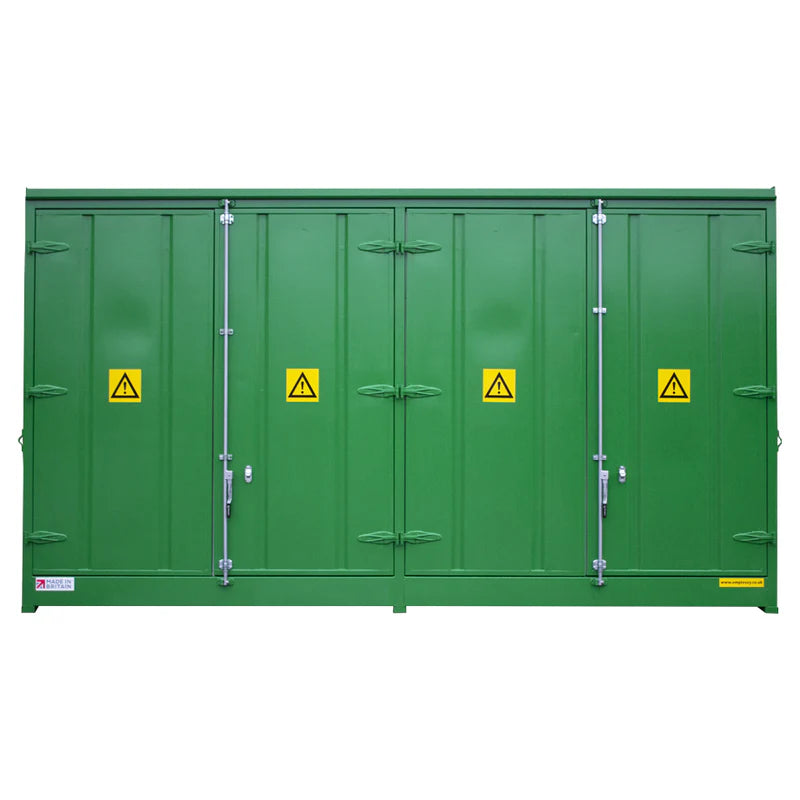

Fire Rated Steel Bunded Drum Storage Unit - Dual Purpose 8 IBC or 32 Drum Store

Backed by a 20-year structural guarantee (details available on request), this fire-rated drum store features a robust rolled hollow welded frame for exceptional strength. The walls, roof, and four hinged doors are insulated with Rockwool Firebatt and clad in sheet steel to provide a 1-hour fire rating. A fully seam-welded sump with galvanised support channels and profiled rib strengtheners creates a bunded area for spill containment, while base plinths prevent ground contact and minimise corrosion risks. High and low-level vents with intumescent elements allow airflow and automatically seal at temperatures above 150°C during a fire. This unit can store up to 32 x 205ltr drums (8 pallet locations) or 8 x 1000ltr IBCs on two levels. The sump fully complies with UK regulations, and all components have been tested by Bodycote Warrington Fire Consulting, meeting BS EN 1634-1: 2000 standards (certificate number 160129).

Specifications:

• Capacity: 8 x 1000 Litre IBC's or 32 x 205 Litre Drums
• 1 Hour Fire Rating BS EN 1634-1: 2000 standards
• Height: 3295mm
• Length: 5920mm
• Width: 1500mm
• Weight: 1970kg
• Sump Capacity: 2100 Litres
• Colour: Green RAL 6029
• 2 Lockable Doors
• Padlock points (Padlocks not supplied) & keyed locks

• 20 Year Structural Guarantee

Product Features and Benefits

• Backed by a 20-year guarantee and fire-rated for
  enhanced safety.

• Sump design and fire-resistant materials ensure
  compliance with regulations and minimise risks.

• Large capacity supports a range of storage
  needs, from drums to IBCs.

• Built with robust materials for long-term
  performance in demanding environments.

• High and low-level vents allow airflow and
  automatically seal above 150°C in case of fire.

• Roof fitted with lifting eyes.
• Plinths to eliminate ground contact.
