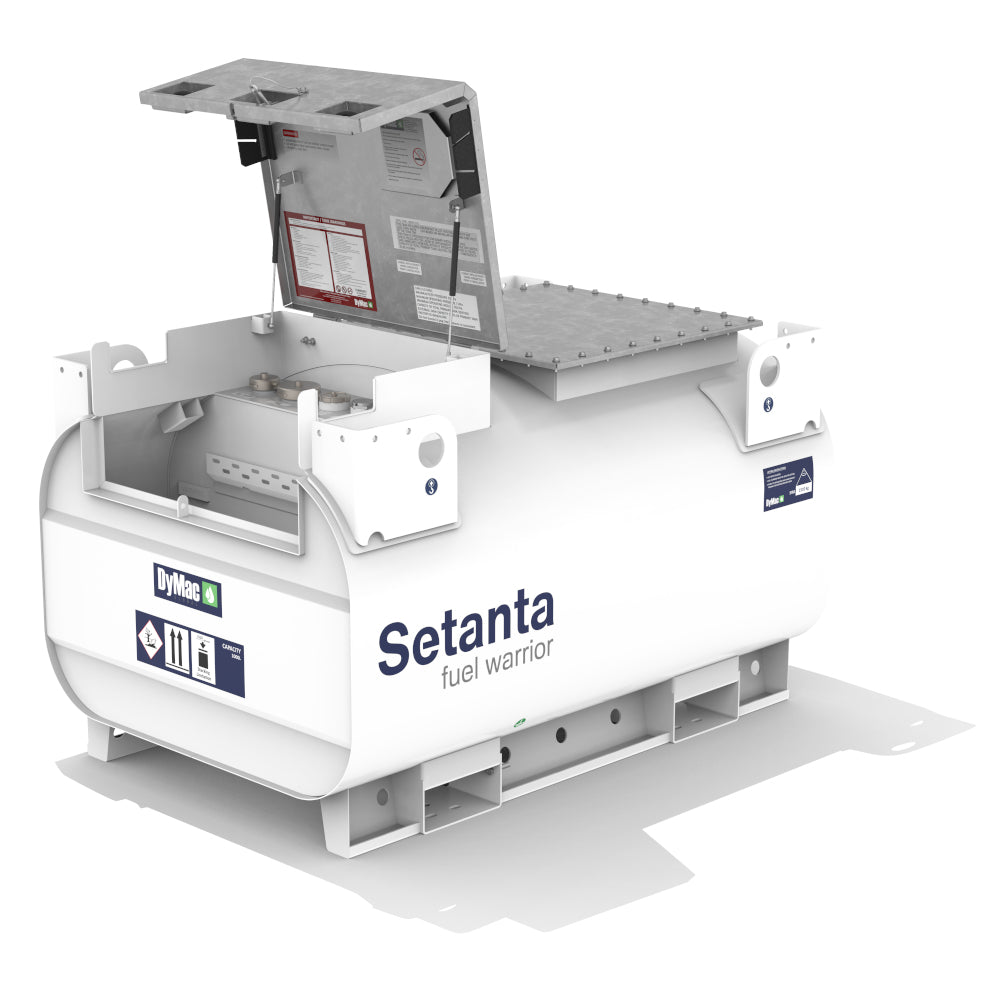

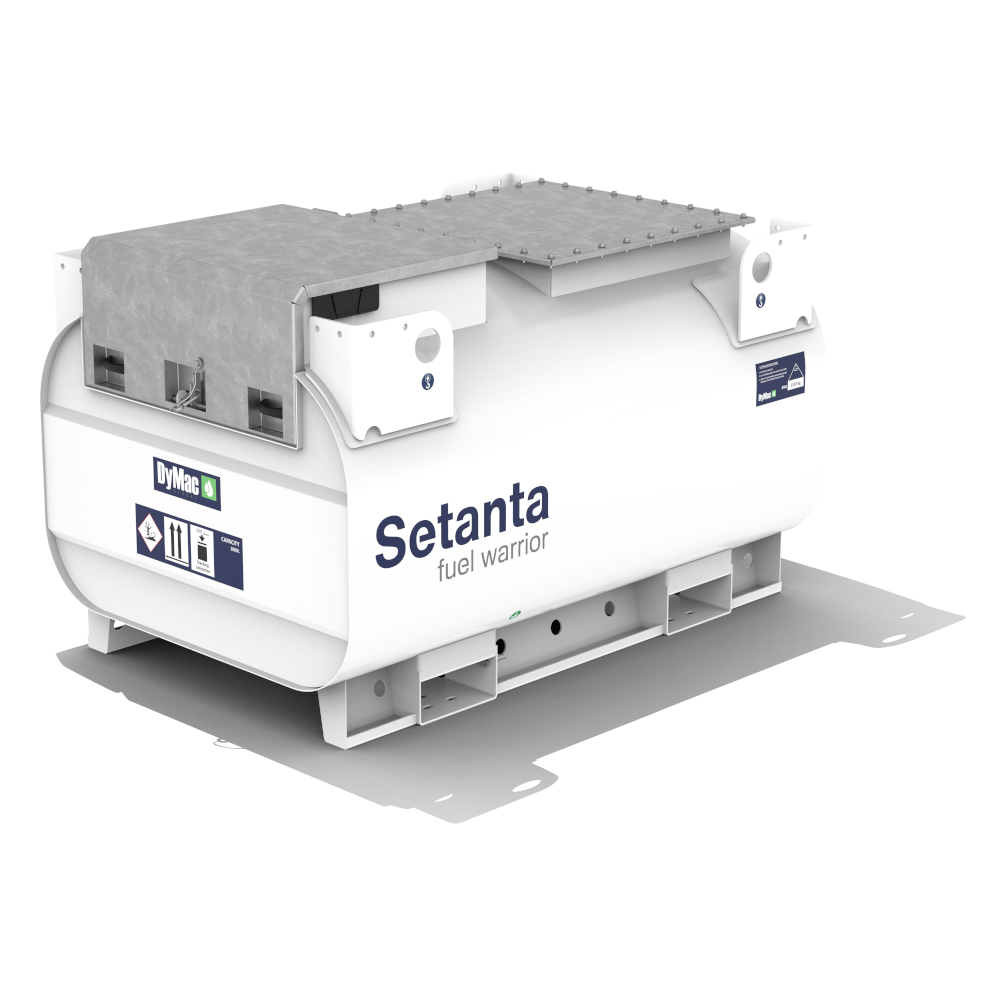

The Dymac Setanta 1000 litre Fuel Warrior is a transportable low profile fuel storage tank with a 110% bund and comes with a galvanised hatch lid and four galvanized stacking corners. It is has feed and return port for generators and has the option to add a hand pump or 12V pump kit.
The innovative design allows the hatch lid to open up to conveniently positioned fitting ports
The Setantan Low Profile tank range is is certified to ULCS601, UL 142,UN31A/Y & ADR approved for transporting on all major freeways when full of fluids. It features four stacking corners and comes complete with a large primary hatch Lid. This transportable tank design has an easily accessible lockable equipment compartment area to accommodate the safe and secure storage of a 12V/24V electric pump, inline water and particle filter, dispensing nozzle with 4m delivery hose, and power cables
Specification:
- FILL VENT - 1x 2" BSP Galvanised External Threaded Pipe with 2" BSP Cap.
- FILL - 1x 3" BSP Galvanised External Threaded Pipe with 3"BSP Fusible Cap.
- P.VENT - 1x 2" NPT Internal Threaded Coupling with 2" Pressure Vent.
- LEVEL GAUGE - 1x 1.5" BSP Internal Threaded Coupling with Level Gauge.
- SPARE - 1x 1.5" BSP Internal Threaded Coupling with 1.5" MS Galvanised Plug.
- FEED - 1x 1.5" BSP Pipe Block with 1 port & Galvanised Metal Stopper, 1" Feed
- Downpipe with 1" HDPE NRV & 1.5" Internal Threaded Coupling.
- E.VENT - 1x 1/4" BSP Internal Threaded Coupling with 1/4" LEV (actuator).
- PUMP ANTISIPHON - 1x 1/8" BSP Internal Threaded Coupling with 1/8" MS Galvanised Plug.
Pump Options:
-
12 Volt Pump Kit - 12v 56lpm pump supplied with 1.5m x 1" suction hose c/w camlock device, mounting bracket, 2m cable c/w crocodile clips, water and particulate filter, 4m x 3/4" delivery hose and automatic nozzle with swivel
-
Hand Pump Kit - 1.5m 1" Suction Hose with Cam Lock Device, K2 Semi Rotary Hand Pump 400ml Per Revolution, 4M x 1" Delivery Hose with Hose Adapter, Manual Dispensing Nozzle
-
Generator Feed and Return Hose Sets
Tank Dimensions:
- Length: 1700mm
- Width: 1140mm
- Height: 1080mm
- 1025 Litres max capacity
- 974 Litres safe fill level
- Tare Weight: 500kg approx.
- Laden Weight: 1500Kg
