The Dymac AceCube Compact 900 litre is an IBC transportable fuel storage tank with a 110% bund and comes with a galvanised hatch lid and four galvanized stacking corners. It is has dual feed and return ports for generators and has the option to add a 12V pump kit.

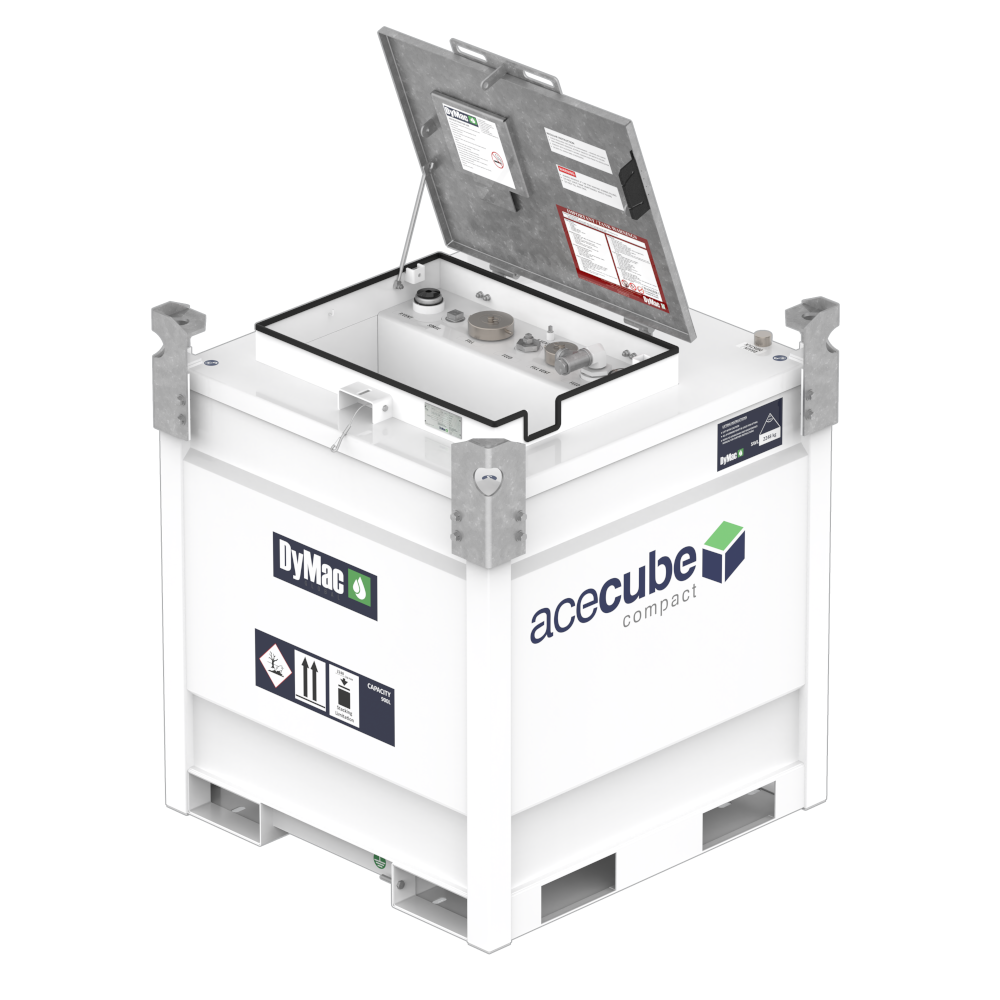

The innovative design allows the hatch lid to open up to conveniently positioned fitting ports
The AceCube Compact tank range is an ADR IBC UN-approved transportable fuel storage tank design. It features four galvanised stacking corners and comes complete with a large primary hatch Lid.
This transportable tank design has an easily accessible lockable equipment compartment area to accommodate the safe and secure storage of a 12V/24V electric pump, inline water and particle filter, dispensing nozzle with 4m delivery hose, and power cables
Complete with bi-directional fork-lift pockets, High grade paint finish. Inner and outer tanks are 2mm steel.
Fittings:
- Fill – 3” bsp galvanised external threaded pipe with 3” bsp fusible cap.
- Return – 1” pipe with 1” bsp internal threading, 1” galvanised ms plug.Fill vent – 2” bsp galvanised external threaded pipe with 2” bsp cap
- Feed assembly – 1” pipe with 1” bsp external threading, with a 1” female to male elbow connected to female tee joint and 2x1” galvanised ms plug.
- Feed assembly – 3/8” pipe with 3/8” bsp internal threading, with 3/8” galvanised ms plug, 3/8” galvanised ms feed downpipe.
- Gauge – 1.1/2” pipe with 1.1/2” bsp internal threading for 1.1/2” gauge
- Pressure vent – 2” pipe with 2” npt internal threading for 2” pressure vent
- Emergency vent – 1/4” pipe with 1/4” bsp internal threading for 1/4” event
- Drain – 1” cs galvanised downpipe with 1” external bsp threading, 1” galvanised cap.
- Dipstick – 6mm diameter
- Free vent – 1/2” bsp internal threaded coupling with 1/2” free vent.
Specification:
- 110% bunded (steel in steel) to ensure compliance with (PPG2)
- Lockable galvanised lid
- Inner baffles for liquid stabilisation whilst in transit
- Removable top, for access to inner tank & cleaning
- Manway access for cleaning and inspection
- 4-way forklift pockets
- 2mm Steeel used on inner and outer tanks
- Easily securable with strapping hooks
- Lifting eyes for lifting when full
- UN 31 A/Y & CE Approved (certificates with the tank)
-

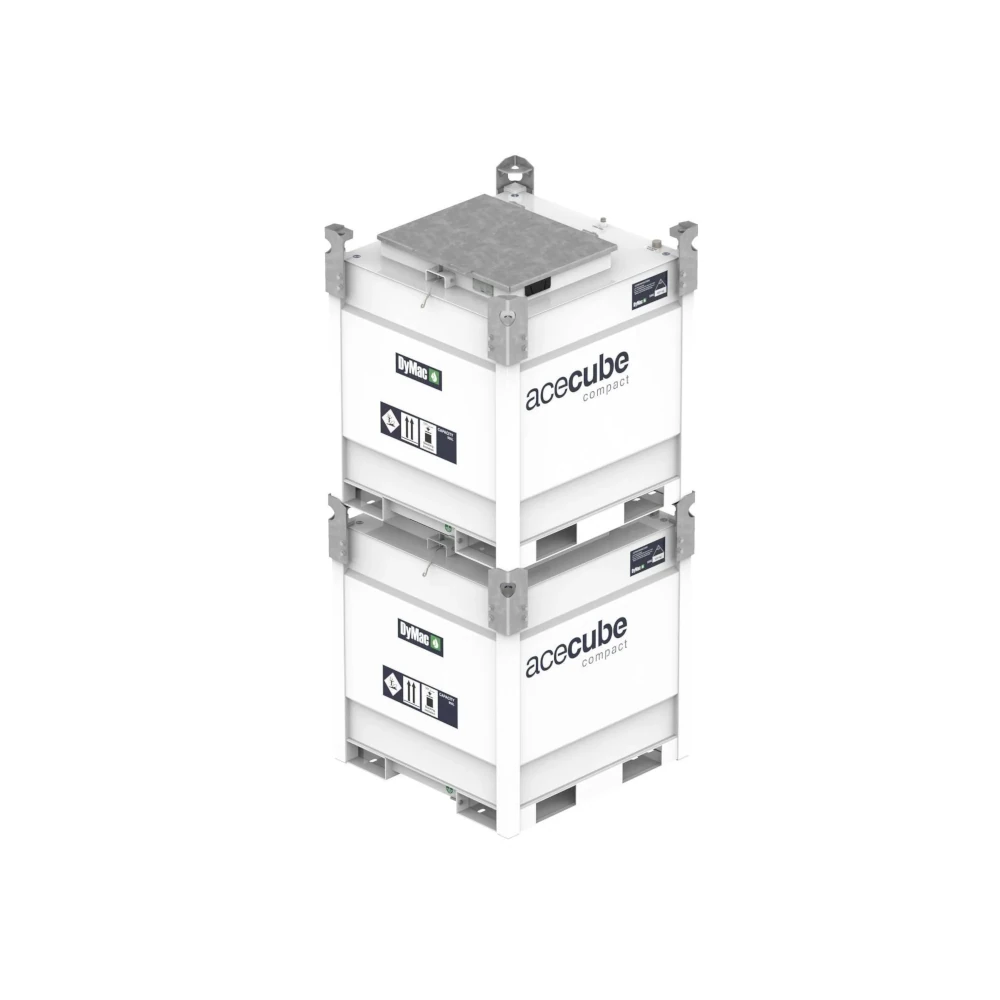

Stackable (3 when empty, 2 when full)
Pump Options:
-
12 Volt Pump Kit - 12v 56lpm pump supplied with 1.5m x 1" suction hose c/w camlock device, mounting bracket, 2m cable c/w crocodile clips, water and particulate filter, 4m x 3/4" delivery hose and automatic nozzle with swivel
- Generator Feed and Return Hose Sets
Tank Dimensions:
- Length: 1190mm
- Width: 1150mm
- Height: 1296mm
- 809 Litres max capacity
- 807 Litres safe fill level
- Tare Weight: 413kg approx.
- Laden Weight: 1099Kg
