Transportable Diesel Skid Bowser - 2140 Litres

A skidbase fuel bowser like no other, Trailer Engineering's 2140 litre fuel bowser is constructed from a polyethylene inner tank to ensure a clean fuel storage solution, secured in a steel outer bund. The 2140 litre fuel bowser is fully U.N. certified for 10 YEARS for the storage and transportation of fuel.

This fuel bowser comes with lockable rear door, four lifting points and two fork sockets. Also available in a highway tow able and site tow able trailer which can be purchased at a later date as this tank will bolt straight into a chassis. The pumping equipment and contents are secured in a steel outer bund.

The inner tank is constructed from polyethylene to ensure a clean storage solution of fuels.  The outer bunded is constructed from steel and has forklift truck lifting points (for when the tank is off of the chassis), 4 lifting points and lockable rear door.

Delivered complete with:

• 2140 Litre capacity

• K2 Hand pump (other options available)
• 15ft delivery hose
• Manual shut off nozzle
• Contents gauge
• Four lifting points
• 2" fill point
• 2" vent
• Certified UN1202 (for road haulage)
• Painted Yellow as standard (other colours available for extra cost)

Image for illustraion only

Tank Dimensions:
HEIGHT: 1663mm
LENGTH: 2014mm
WIDTH: 1663mm
UNLADEN WEIGHT: 623kg approx
LADEN WEIGHT: 2500kg approx

OUTER BUND TANK:
Constructed from 3mm Mild Steel, cylindrical in section. Removable top section.4 lifting eyes on tank corners. Built-in fork truck sockets in base of tank. Stainless steel Hinged rear access door, fully lockable.

INNER FUEL TANK:
Constructed from translucent heavy duty polyethylene to prevent rust contamination of the fuel. 2” filler with cap. 2 No. 1⁄2” BSP suction & return connections mounted in the top of the inner tank for generator fuel line. Ball Valve in base of the tank to pump. Pressure relief valve in the top of tank. Manual vent valve fitted. Fuel contents visible through tank wall.

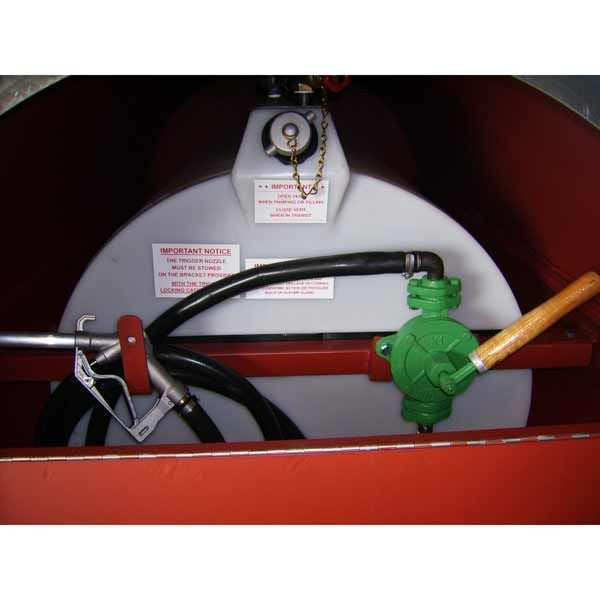

PUMP:
K1 Semi-Rotary hand pump c/w in line ‘Y’ strainer. 15’ of 1” hose c/w trigger nozzle stowed on a bracket. Options available on request: Electric Pump, Petrol Pump, Non Resale Flowmeter.

FINISH:
Primer and two top coats, single British Standard colour.
