he Atlantis PortaTank UN Approved 950 Litre Steel Bunded Transportable Diesel and HVO Dispenser. The Bunded Diesel or HVO Cube is suitable for transporting fuel on the roads and is certified to UN 1202. Both the inner and outer tanks are manufactured from 3mm mild steel which means they are suitable for many years of use in the harshest environments. Each tank also comes with a generator feed and return point so they can be attached to a generator and dispense diesel at the same time. There are four lifting points and forklift pockets on the tank that are certified to use even when the tank is full of fuel.
Fittings:
- Capacity: 950 Litres
- 3” Fill Point
- 1.5” Socket (Spare)
- 2” Socket (Spare)
- 2” Socket (Gauge)
- LRC overfill device
- 2” Vent
- 2x 1/2” Feed
- 2x 1/2” Return
- 1” Pump Feed
Specification:
- 110% bunded (steel in steel) to ensure compliance with (PPG2)
- Gas sprung lockable lid
- Inner baffles for liquid stabilisation whilst in transit
- Removable top, for access to inner tank & cleaning
- Manway access for cleaning and inspection
- 4-way forklift pockets
- Easily securable with strapping hooks
- Welded lifting eyes for lifting when full
- ADR, UN & CE Approved (certificates with the tank)
- Mesh grid on floor area, to prevent fuel residue on the hose
- Earth point on the tank
- Stackable (3 when empty, 2 when full)
Pump Options:
-

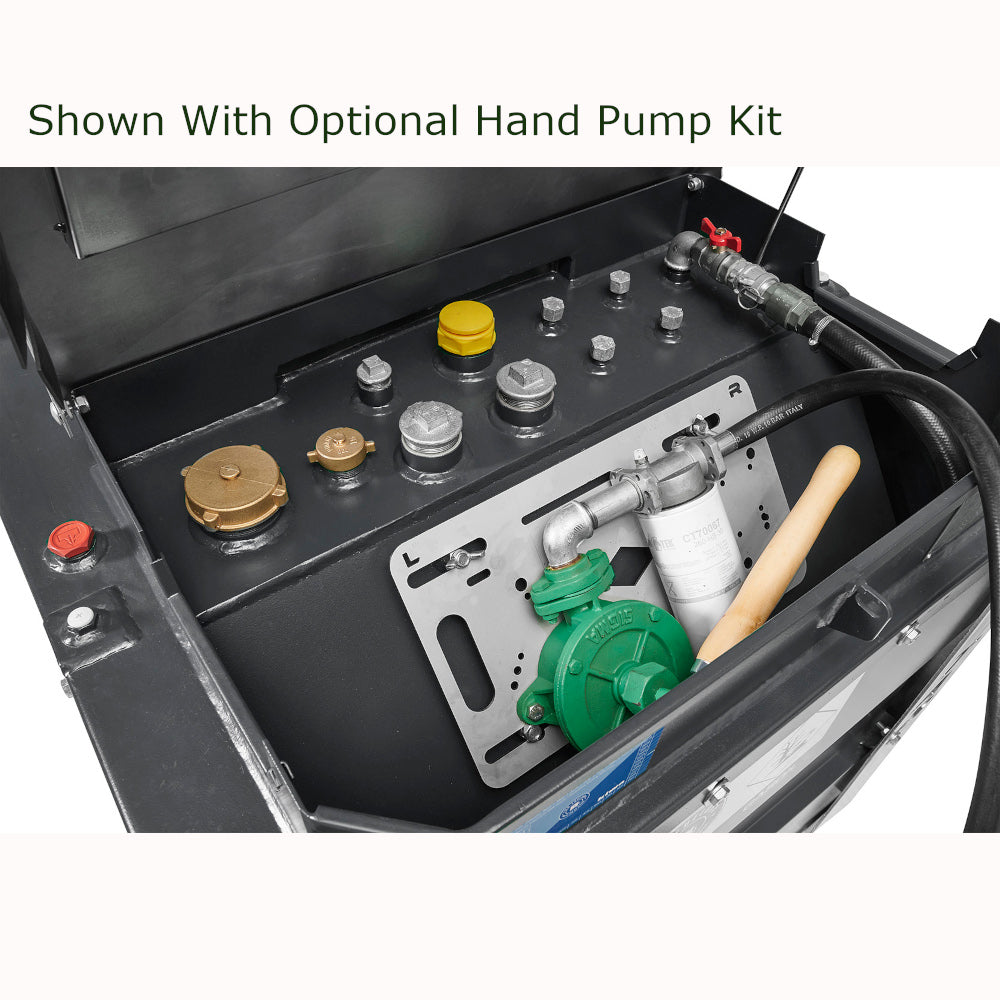

Semi Rotary Hand Pump with 4m delivery hose, manual nozzle
-
Semi Rotary Hand Pump with 4m delivery hose, manual nozzle, filter
-

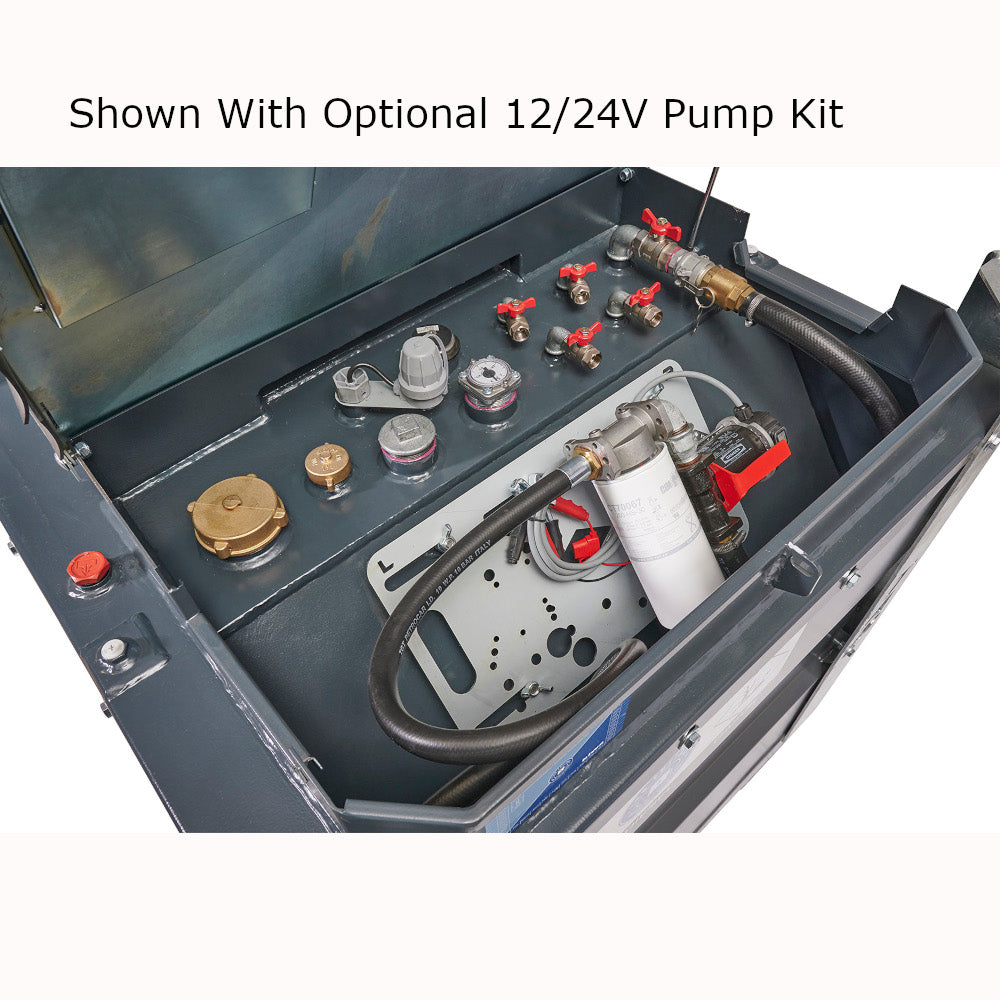

12 Volt Pump Kit delivering 50lpm,10 micron water and particulate filter, 4m delivery hose, auto shut off nozzle
-
24 Volt Pump Kit delivering 50lpm,10 micron water and particulate filter, 4m delivery hose, auto shut off nozzle
-
110 Volt Pump Kit - 55 LPM 110v Pump, 10 Micron Water & Particle Filter, 4m Hose
-

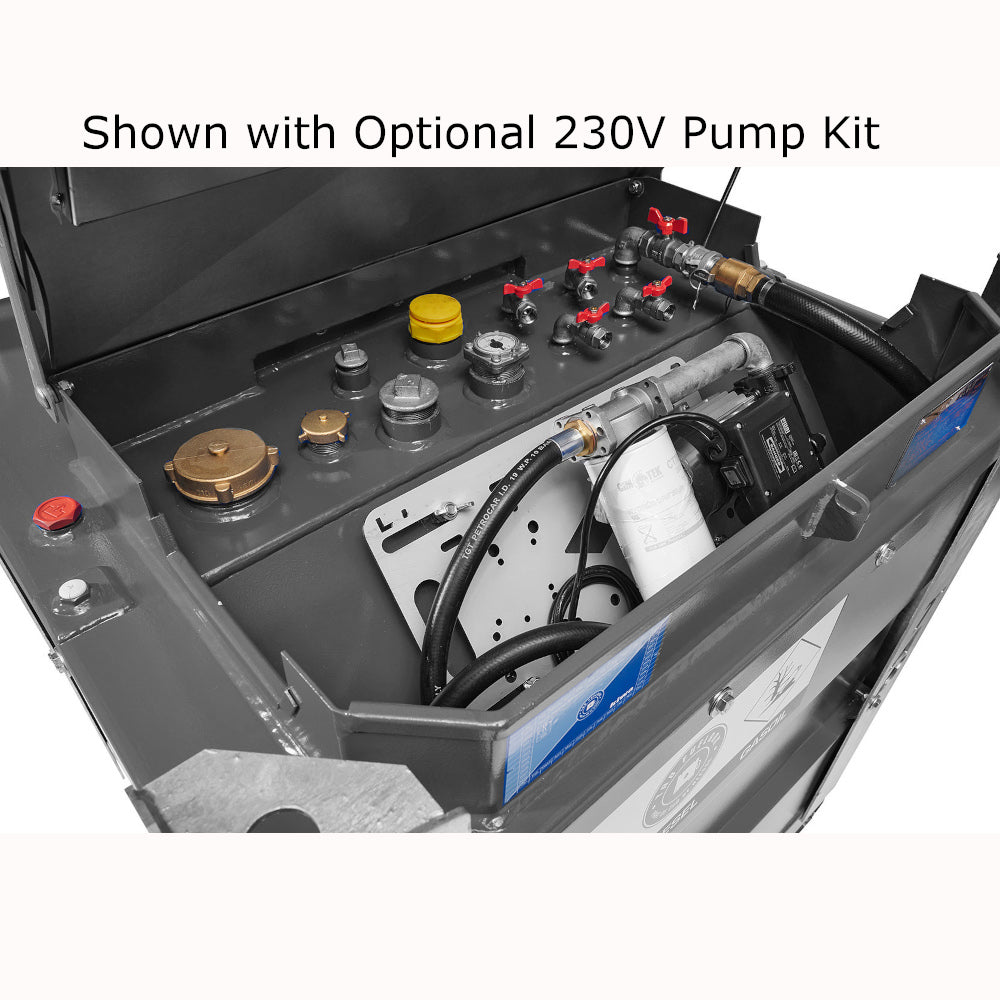

230 Volt Pump Kit - 55 LPM 230v Pump, 10 Micron Water & Particle Filter, 4m Hose, Auto Nozzle, Mounting Bracket for Pump
-
Digital Flow Meter - for electric pumps only
- Generator Feed and Return Hose Sets
Tank Dimensions:
Length: 1100mm
Width: 1100mm
Height: 1270mm
Weight: 180kg approx.
