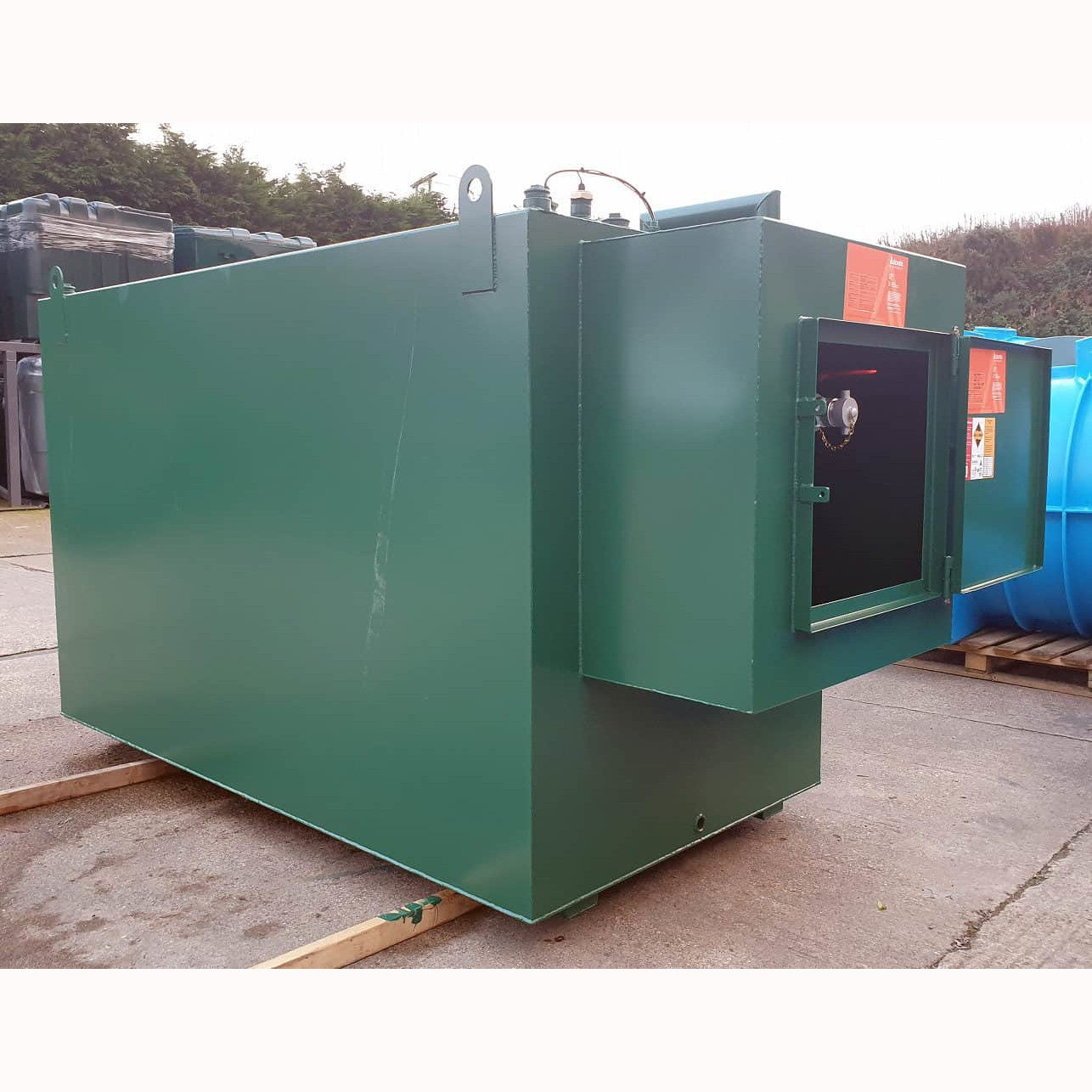

Atlantis 7000 Litre Steel Bunded Oil Tank c/w Fill Point Cabinet

The Atlantis 7000 litre steel bunded oil tank with top outlet and low level fill point cabinet, also comes with hydrostatic contents gauge and battery overfill alarm. The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity.  This tank is suitable for the storage of heating oil, kerosene, diesel, waste oils and many other liquids (please check before usage). These tanks are manufactured to the highest standards and conform to BS799 pt5. These tanks are painted with 2 coats of our specially formulated anti rust coating system designed to give maximum protection.

Delivered complete with:

• 7000 litre (1540 galls) capacity
• 3mm thick steel
• Low-level fill point – front-mounted
• Lockable cabinet swing door
• 2” fill point inside the cabinet, c/w lever ball valve & non-return valve
• 1 no tank to bund vent & 2″ bund vent
• 1 no 1.5″ bund socket
• 2 no 1.5″ tank socket
• 1 no 2″ tank socket
• 1 no 1″ top suction c/w standpipe
• 2 no 0.5″ sockets in the cabinet for probes
• Hydrostatic Unitel tank contents gauge (other gauges can be fitted £POA)
• Battery overfill alarm
• 50mm x 100mm full-length bearers
• Pitched roof design
• Small tin of “touch-up” paint for applying when scratches might occur during the installation process.
• Standard Colour: Holly Green
• 10 year warranty (register your warranty here)

Tank Dimensions:

• Length: 2890mm (including cabinet)
• Width: 1830mm
• Height: 1830mm
• Weight: 1240kg
• Cabinet: (900mm x 900mm x 450mm)
