Atlantis 3500 Litre Steel Bunded Diesel Dispenser

The Atlantis 2700 litre steel bunded diesel and HVO dispensing tank for commercial applications and is well suited for agricultural and construction sites. This diesel or HVO dispenser tank comes with either a 230 volt pump kit or a hand pump kit, please see specifications below. These diesel tanks are manufactured to the highest standards and conform to BS799 pt5. These tanks are painted with 2 coats of our specially formulated anti rust coating system designed to give maximum protection.

Delivered complete with:

• 2700 litre (595 galls) capacity
• Security cabinet – front
• Lockable cabinet – swing door
• 2” fill point inside the cabinet, c/w lever ball valve & non-return valve
• 2″ bund to atmosphere vent
• Tank to bund vent
• 1.5″ bund gauge port
• 1.5″ port for alarm probe c/w overfill alarm (battery-powered)
• 1.5″ port for a gauge c/w clock face contents gauge (housed under steel box for security)
• Mounted on bearers (full width)
• Tank painted RAL 7015 grey
• Door painted RAL 2001 orange
• Small tin of “touch-up” paint for applying when scratches might occur
• 10 Year warranty on tank, 1 year warranty on pumps (register your warranty here)

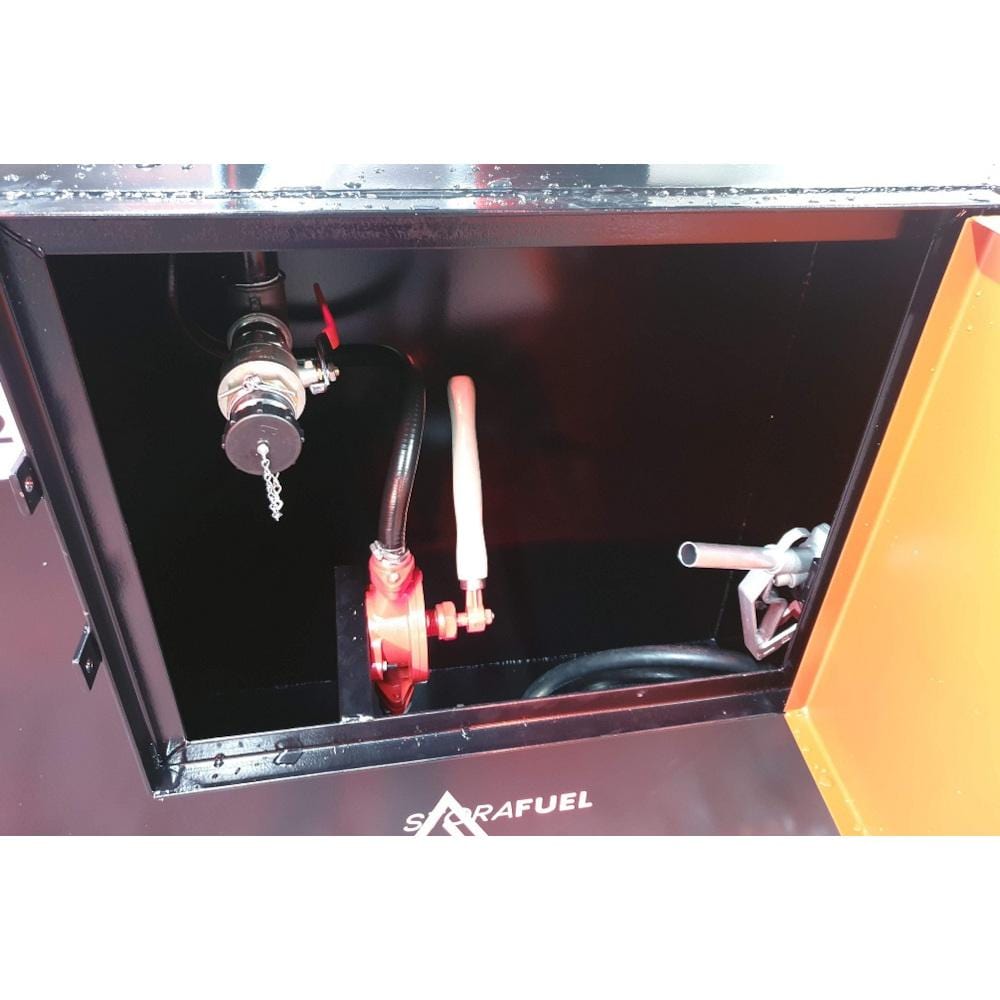

Hand Pump Kit - Semi Rotary Diesel or HVO Hand Pump Kit, 10 Micron Water & Particle Filter, 4m Hose, Manual Nozzle (available with or without filter)

230 Volt Pump Kit (45 or 75 lpm) - HYTEK Economy Pump - 45 or 75 LPM 230v Pump, 10 Micron Water & Particle Filter, 6m Hose, Auto Nozzle, Mounting Bracket for Pump, Mechanical Flow Meter (Euro plug; but supplied with a UK adaptor)

230 Volt Pump Kit (50, 70  or 100 lpm) - PIUSI Premium Pump - 50, 70 or 100 LPM 230v Pump, 10 Micron Water & Particle Filter, 6m Hose, Auto Nozzle, Mounting Bracket for Pump, Mechanical Flow Meter (Euro plug; but supplied with a UK adaptor)

Fuel Management - various options available (please contact us)

12v, 24v, 110v and petrol pump - various options available (please contact us)

Length: 2500mm
Width: 1250mm
Height: 1350mm
Weight: 425kg

HVO (Hydrotreated Vegetable Oil) biodiesel is produced from 100% renewable resources and is an excellent, environmentally friendly biofuel.

Existing diesel engines do not require modification to use it. You can even top up a tank already containing mineral diesel with HVO as the two liquids mix together without any problems.
