The Atlantis 1100 litre steel single skin oil tank is suitable for domestic applications. This tank is suitable for the storage of heating oil, kerosene, diesel, waste oils and many other liquids (please check before usage). These tanks are manufactured to the highest standards and conform to BS799 pt5. These tanks are painted with 2 coats of our specially formulated anti rust coating system designed to give maximum protection.
Delivered complete with:
- 1100 litre (240 galls) capacity
- 2.5mm Steel
- 2” fill point with cap and chain
- 1″ bottom outlet
- 1.5″ port for a gauge
- 3/4″ drain socket (rear of tank – bottom)
- Standard Colour: Holly Green
- Lifting eye (lift empty only)
- 3 year warranty (register your warranty here)
Tank Dimensions:
Length: 1525mm
Width: 610mm
Height: 1220mm
Weight: 120kg
Optional Extras:
-
Tank Stand - 600mm Metal Stand
-

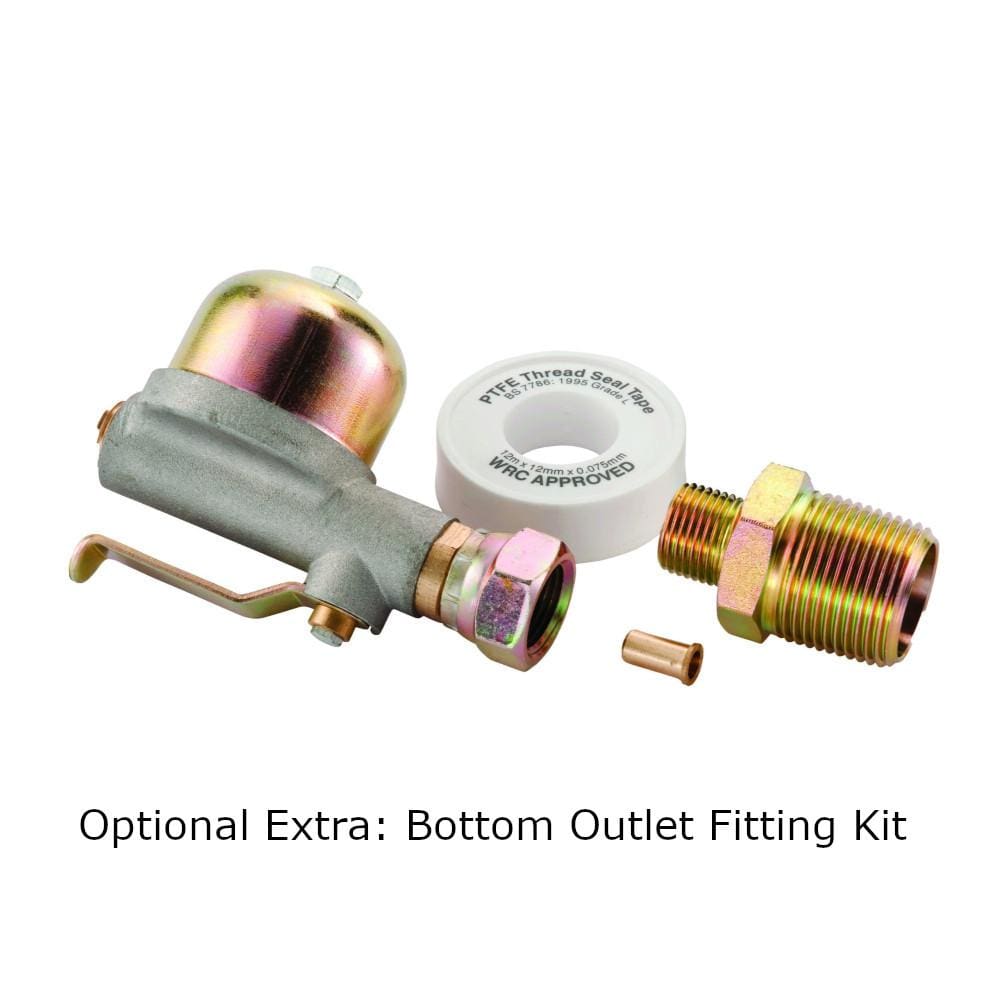

Bottom Outlet Fitting Kit (Economy) - Everything you need to connect the 1" bottom outlet on the tank to your pipe work (isolation valve, filter bowl, compression fitting, PTFE tape) - not required if using the sight gauge
-

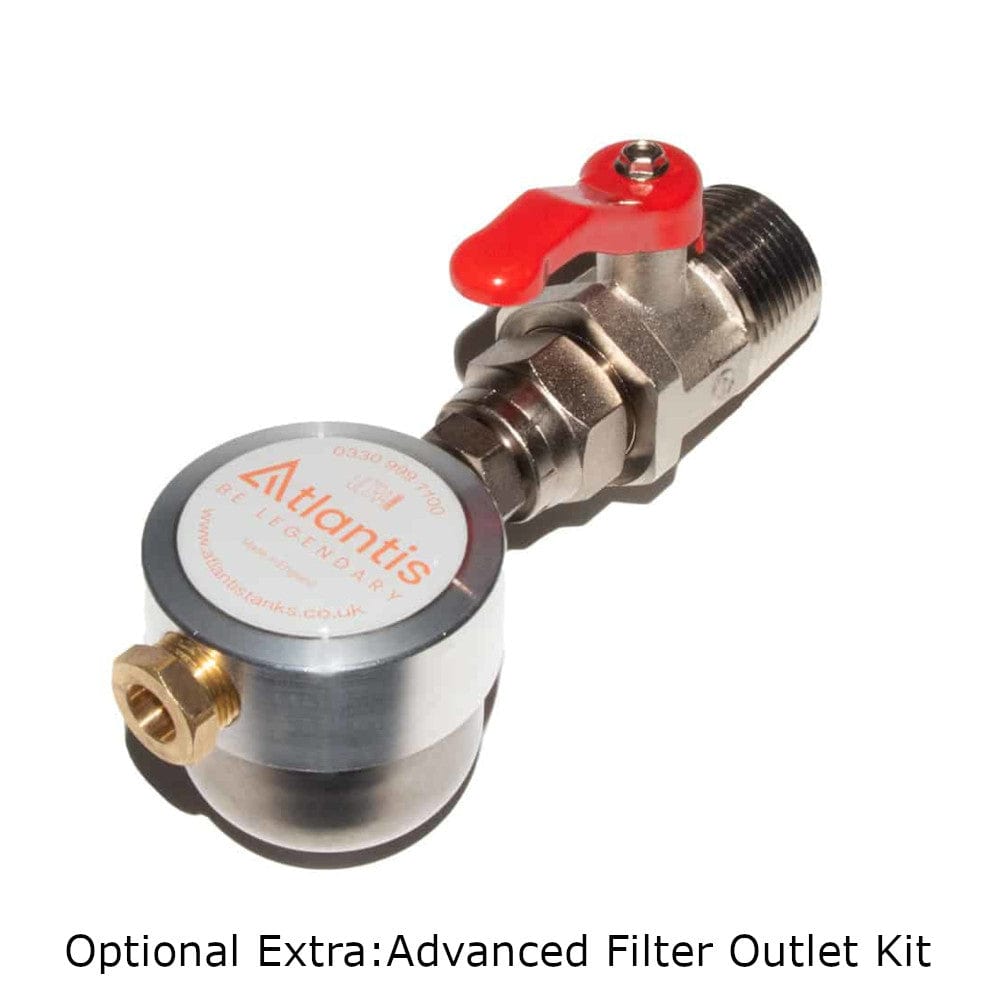

Bottom Outlet Fitting Kit (Advanced) - 1" shut off valve and filter. The filter is fitted after the valve. All components are UK made. Supplied with 1 roll of PTFE tape.
-

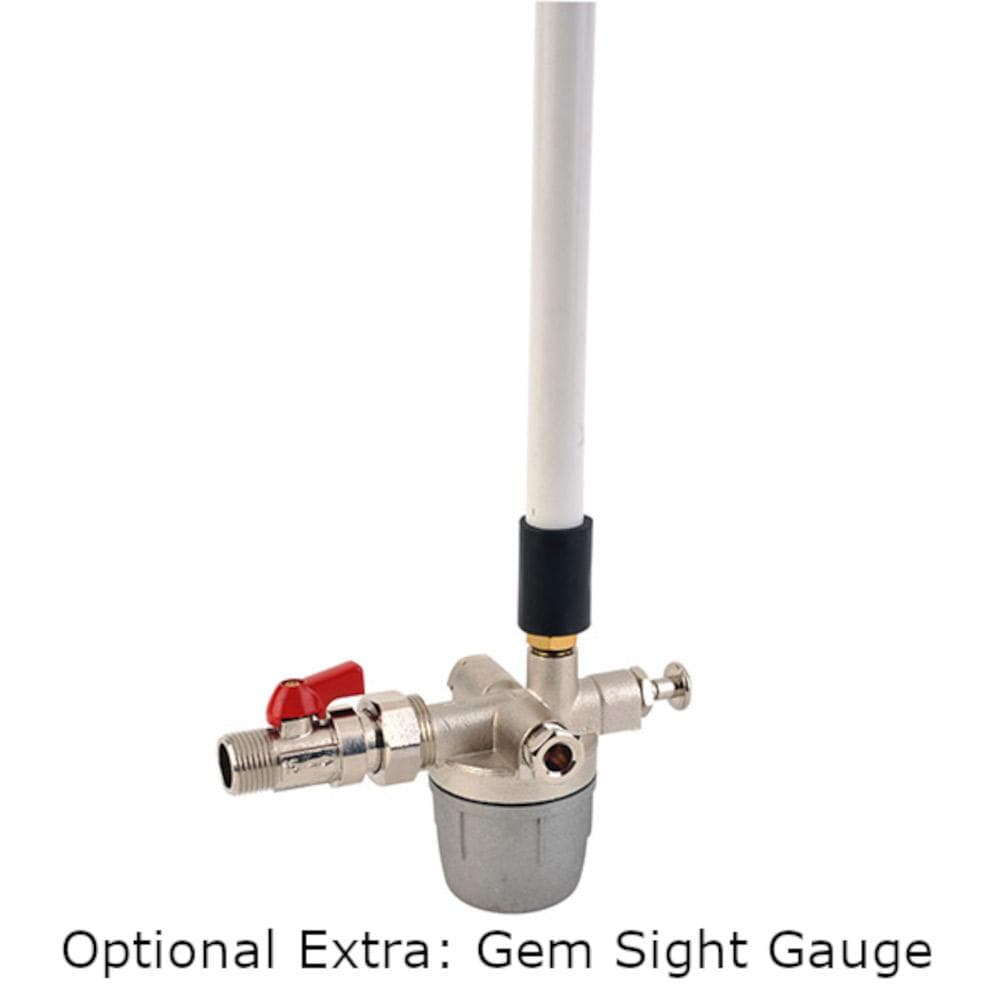

Gem Sight Gauge - A tube at the side of the tank with a simple "pull to read" oil tank level indicator. Complete with an integrated paper filter and incorporated isolation valve. Multi-directional outlet (both at 90 degrees to the tank) so it can feed up to 2 boilers.
-

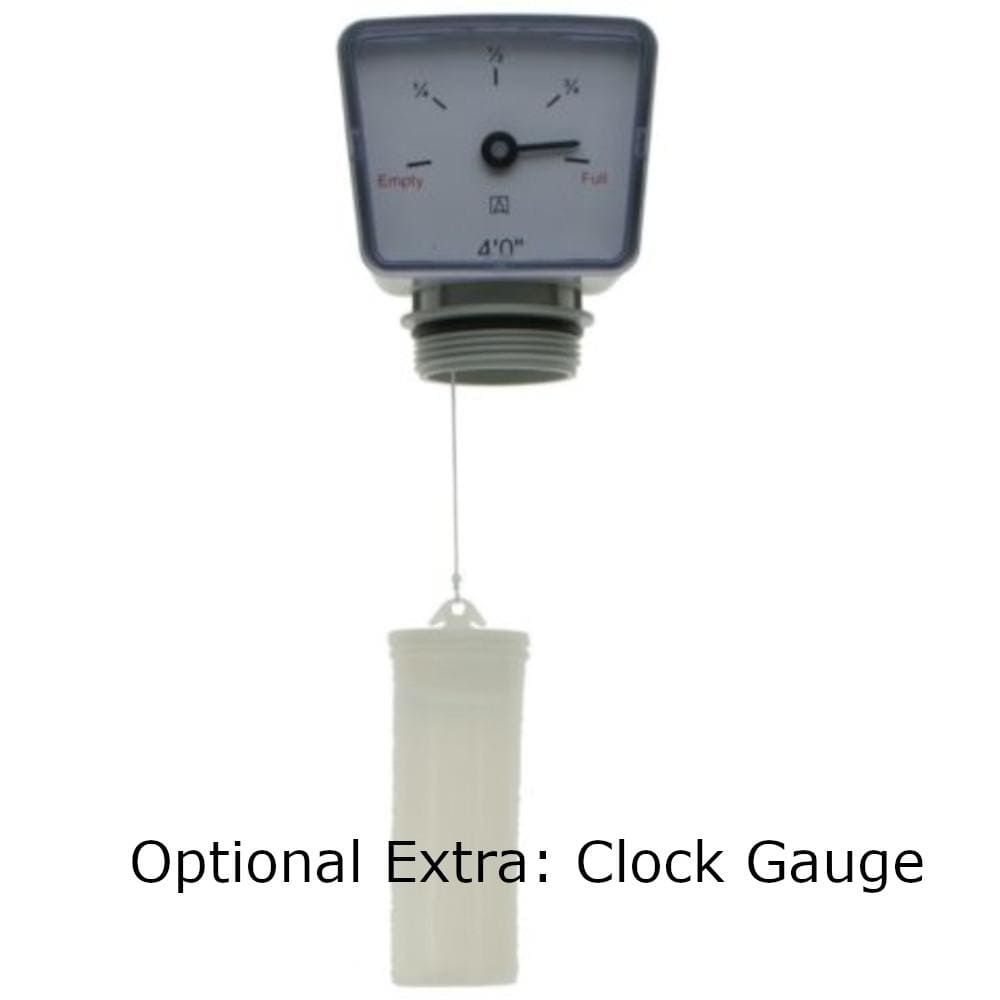

Clock Face Contents Gauge - A simple gauge using a float in the tank attached to the clock face gauge that is screwed into the outlet on top of the tank.
-

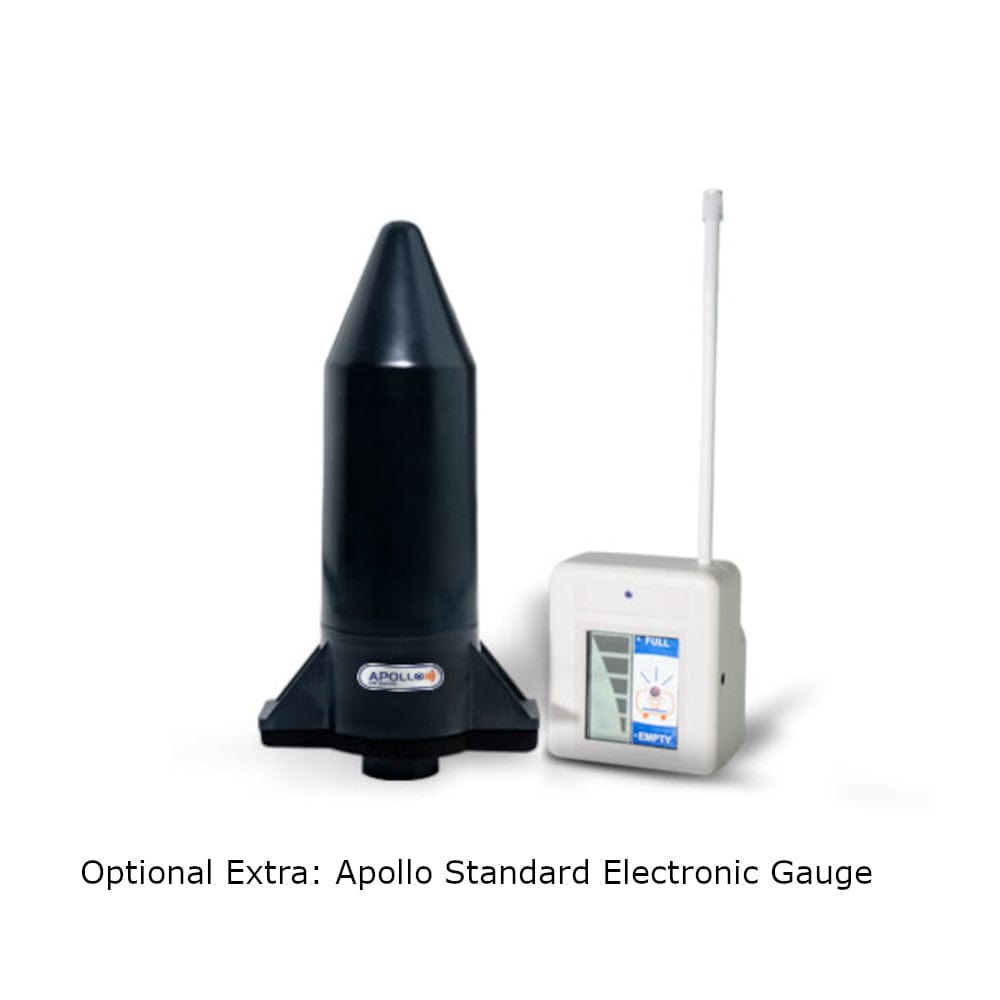

Apollo Standard Electronic Contents Gauge - A simple 2 part gauge, one part sits on the inner tank and sends a message to the second part plugged into a electric socket up to 200 metres away.
-

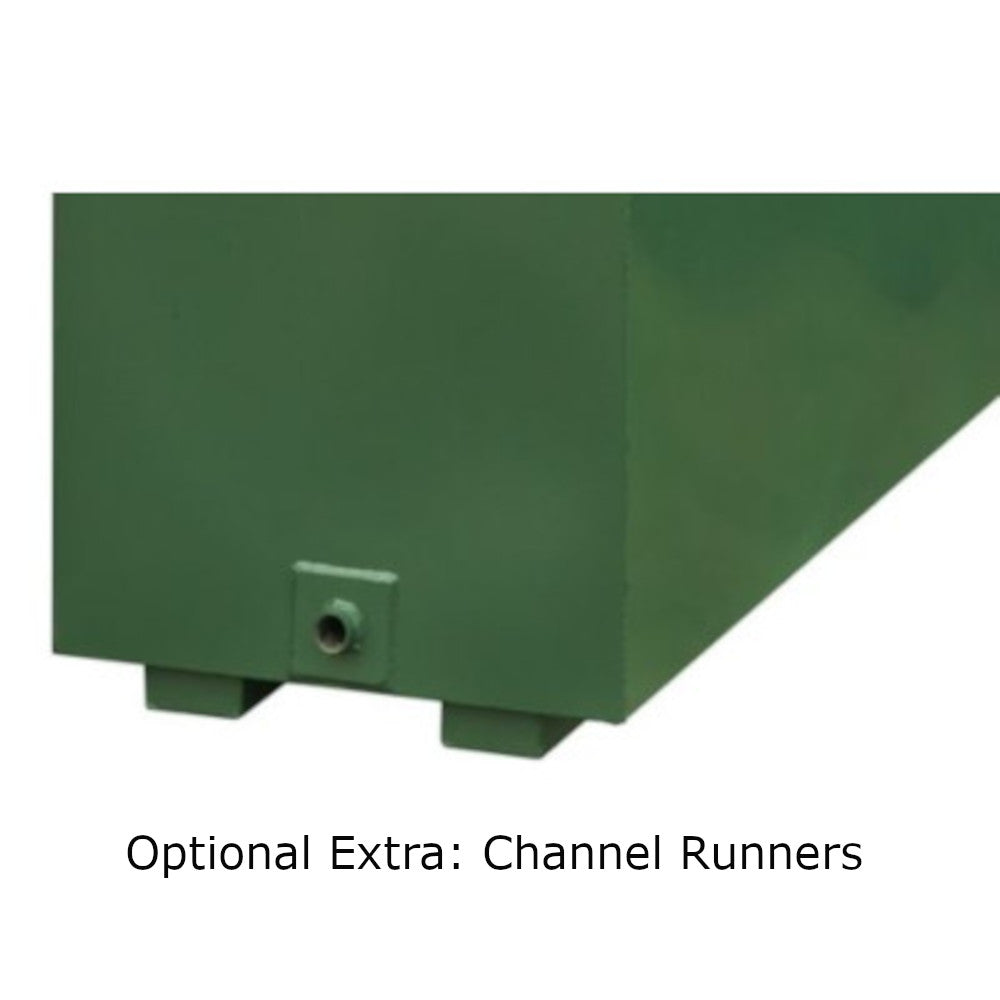

Channel Runners (Full Length) - Metal box section welded to the bottom of the tank, running full length. Keeps the tank off the floor, prolongs the life of the tank and easier to maintain.
