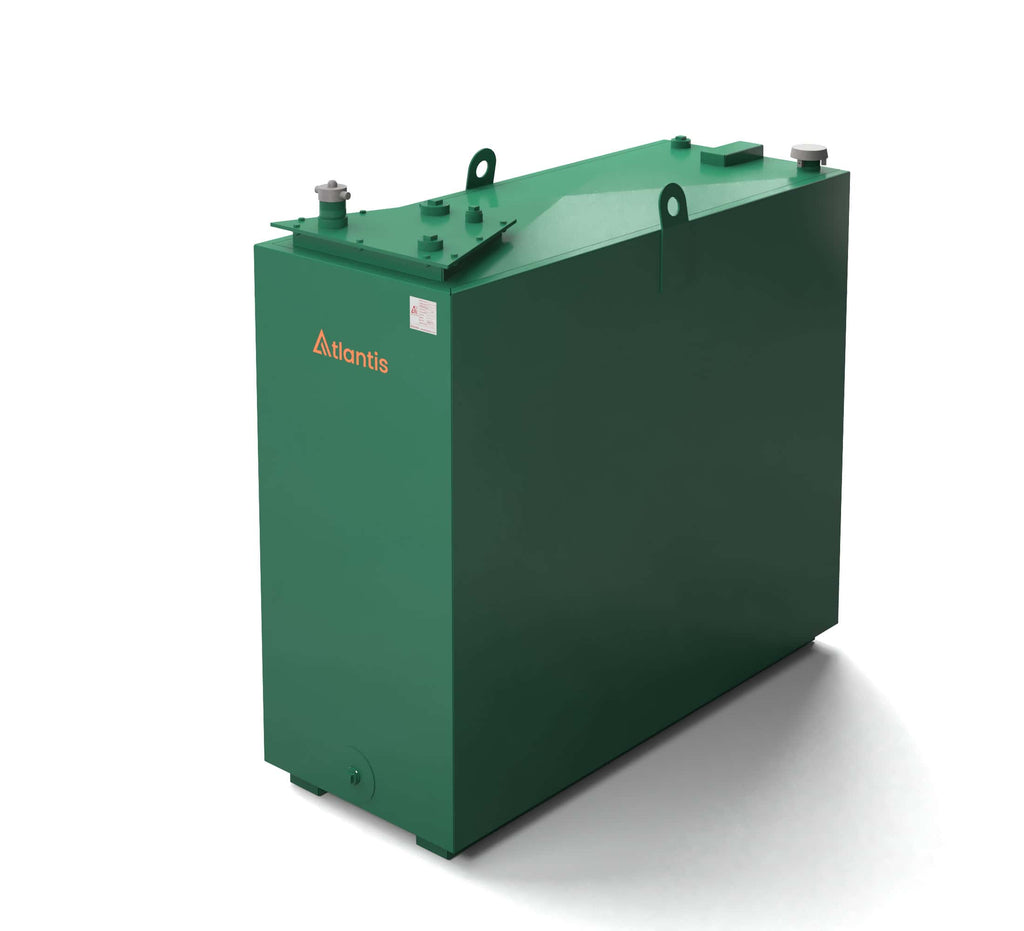

Atlantis 1050 Litre Imperium Steel Bunded Oil Tank

The all New Atlantis 1050 litre steel bunded oil tank built with Imperium Technology. These bunded steel oil tanks offer unmatched durability and long-term peace of mind. Ideal for domestic or commercial heating oil storage, this has to be one of Britain’s best engineered heating oil tanks

Unique removable and interchangeable top fittings plate means you can add Lockable Top Box option for greater security of contents so all the fiittings are locked away.

The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity.  This tank is suitable for the storage of heating oil, kerosene, diesel, waste oils and many other liquids (please check before usage). These tanks are manufactured to the highest standards and conform to BS799 pt5. They are painted with 2 coats of our specially formulated anti rust coating system designed to give maximum protection. amd come with a 10 year warranty.

Delivered complete with:

• 1050 litre capacity
• Full Length Base Bearers
• 2″ socket with aluminium fill point, drip cap & chain
• 1.5″ socket for contents gauge
• 1″ top socket with 1″ internal suction pipe for use as sludge & water drain
• Spare 2″ socket

• Pitched roof design
• Lifting eyes
• 1.5″ bund socket for optional bund alarm probe
• 2″ tank to bund vent
• 2″ bund socket for bund to atmosphere vent c/w 2″ aluminium vent cap

• Small tin of “touch-up” paint for applying when scratches might occur during the installation process.
• Standard Colour: Holly Green
• 10 year warranty (register your warranty here)

Tank Dimensions:
Length: 1830mm
Width: 610mm
Height: 1250mm
Weight: 257kg

Optional Extras:

• Tank Stand - 600mm Metal Stand
• Bottom Outlet Fitting Kit (Economy) - Everything you need to connect the 1" bottom outlet on the tank to your pipe work (isolation valve, filter bowl, compression fitting, PTFE tape)
• Bottom Outlet Fitting Kit (Advanced) - 1" shut off valve and filter.  The filter is a separate component fitted after the valve, enabling the tank supply to be disabled should anything happen to the filter.  All components are UK made. Supplied with 1 roll of PTFE tape.
• Clock Face Contents Gauge - A simple gauge using a float in the tank attached to the clock face gauge that is screwed into the outlet on top of the tank
• Apollo Standard Electronic Contents Gauge - A simple 2 part gauge, one part sits on the inner tank and sends a message to the second part plugged into a electric socket up to 200 metres away

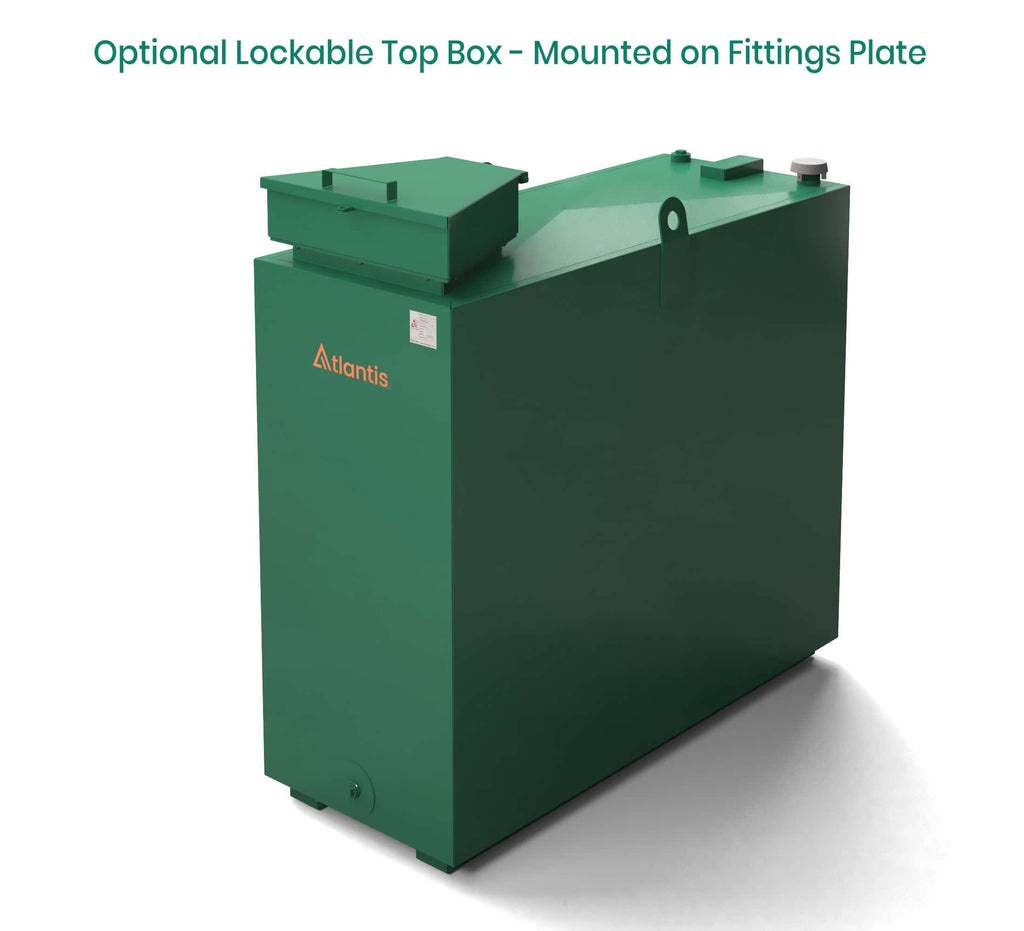

• Lockable Top Box Security Lid -

  The steel box with lockable lid entirely covers the 4 fittings on top of the fittings plate including: 2″ Fill Point, Connection for tank gauge and Connection for internal suction pipe. The top box prevents opportunistic theft of heating oil stored from the tank.
