The Atlantis 10000 litre steel bunded oil tank is suitable for both domestic and commercial applications. The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity. This tank is suitable for the storage of heating oil, kerosene, diesel, waste oils and many other liquids (please check before usage). These tanks are manufactured to the highest standards and conform to BS799 pt5. These tanks are painted with 2 coats of our specially formulated anti rust coating system designed to give maximum protection.
Delivered complete with:
- 10000 litre (2200 galls) capacity
- 3mm thick steel
- 2” fill point
- 2″ top socket as a spare connection
- 1″ bottom outlet
- 1.5″ port for a gauge
- 1.5″ port for bund gauge
- Tank to bund vent
- Bund vent
- Pitched roof design
- 1″ top suction drain port
- 50mm x 100mm full-length bearers (channel runners)
- Small tin of “touch-up” paint for applying when scratches might occur during the installation process.
- Standard Colour: Holly Green
- 10 year warranty (register your warranty here)
Tank Dimensions:
Length: 3350mm
Width: 1830mm
Height: 1830mm
Weight: 1500kg
Optional Extras:
-
Bottom Outlet Fitting Kit (Economy) - Everything you need to connect the 1" bottom outlet on the tank to your pipe work (isolation valve, filter bowl, compression fitting, PTFE tape)
-

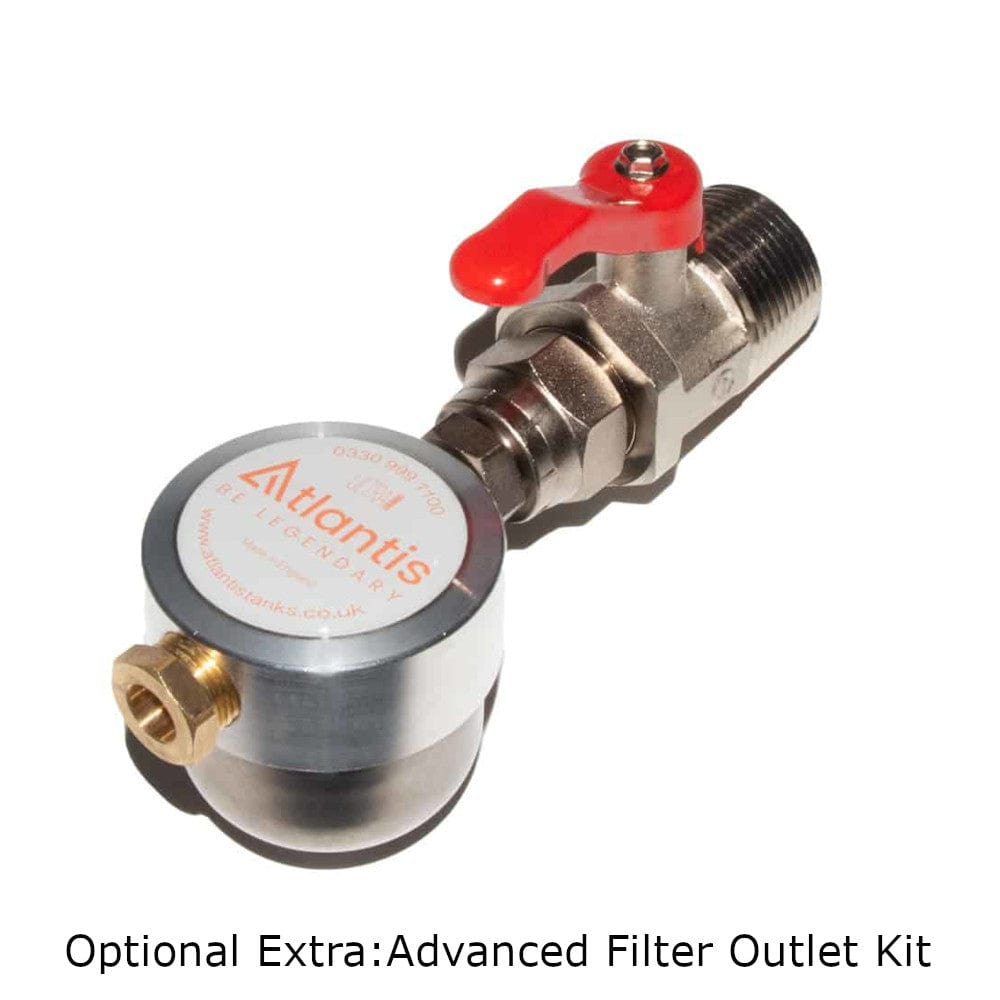

Bottom Outlet Fitting Kit (Advanced) - 1" shut off valve and filter. The filter is fitted after the valve. All components are UK made. Supplied with 1 roll of PTFE tape.
-

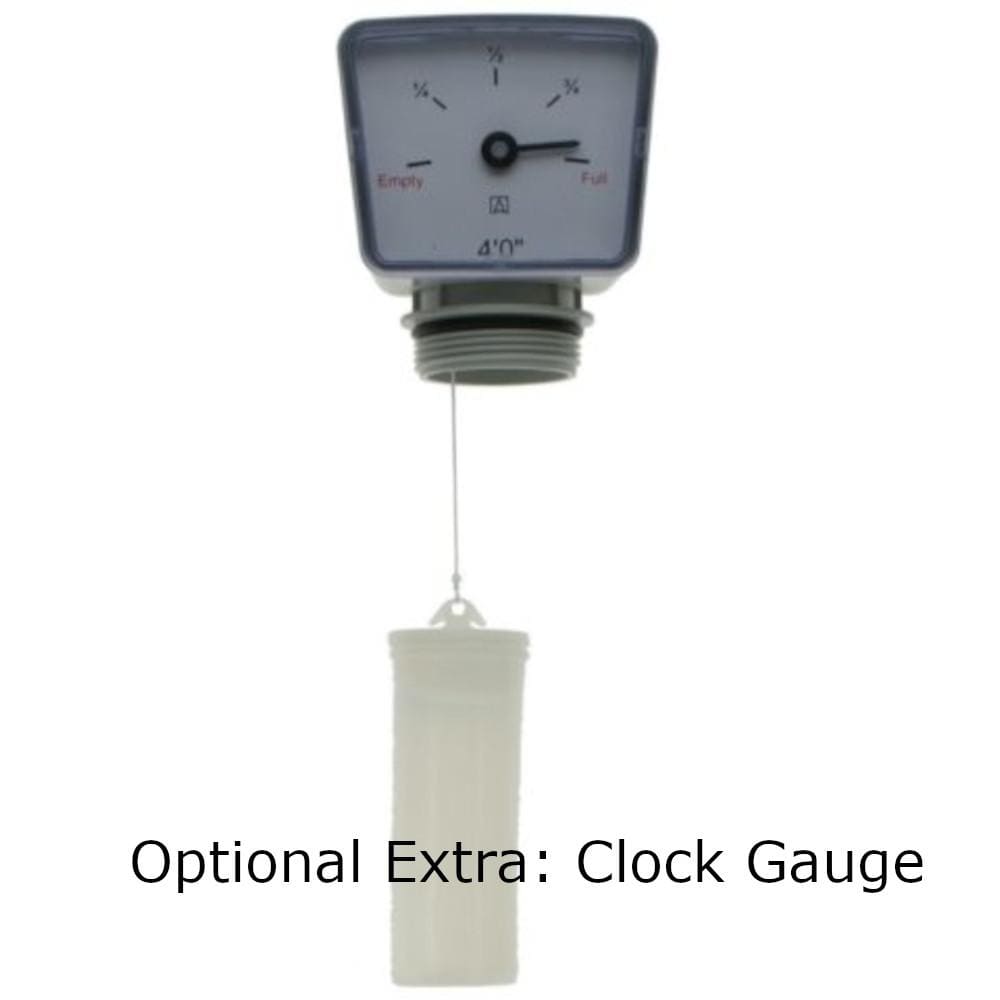

Clock Face Contents Gauge - A simple gauge using a float in the tank attached to the clock face gauge that is screwed into the outlet on top of the tank
-

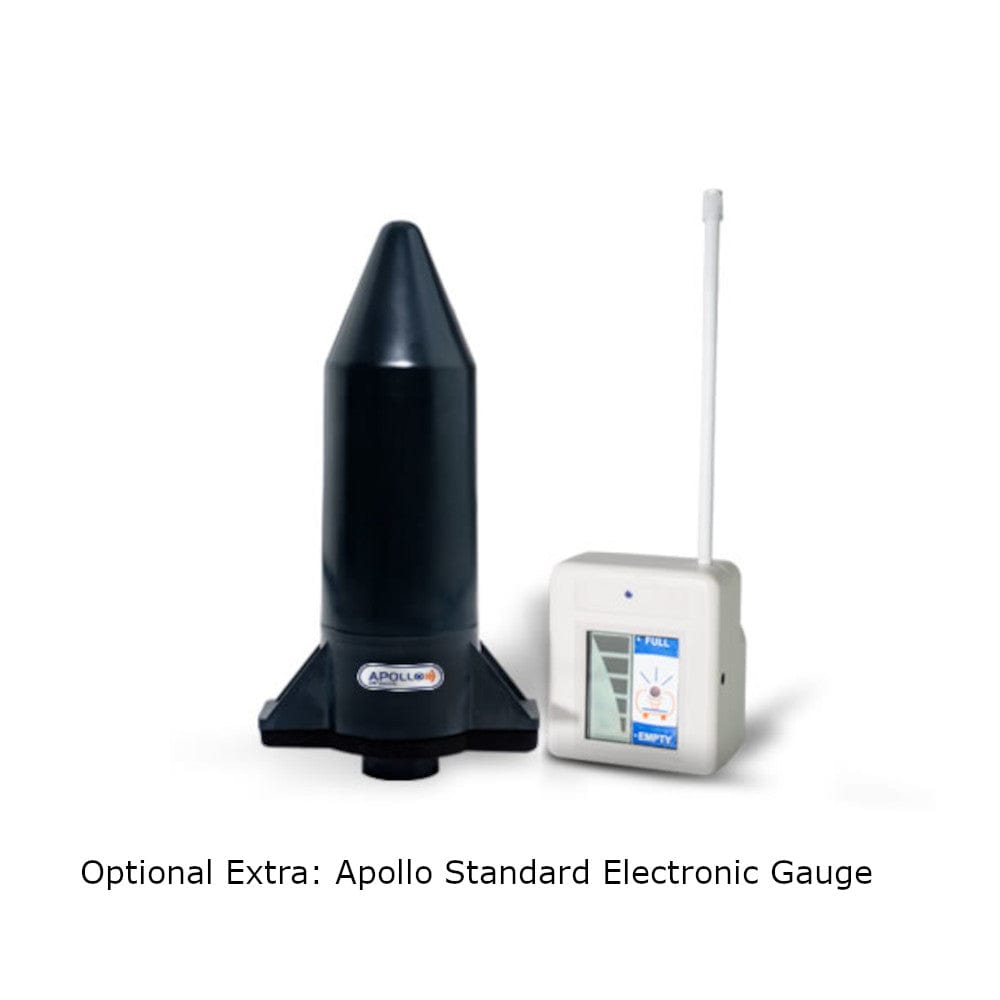

Apollo Standard Electronic Contents Gauge - A simple 2 part gauge, one part sits on the inner tank and sends a message to the second part plugged into a electric socket up to 200 metres away
-

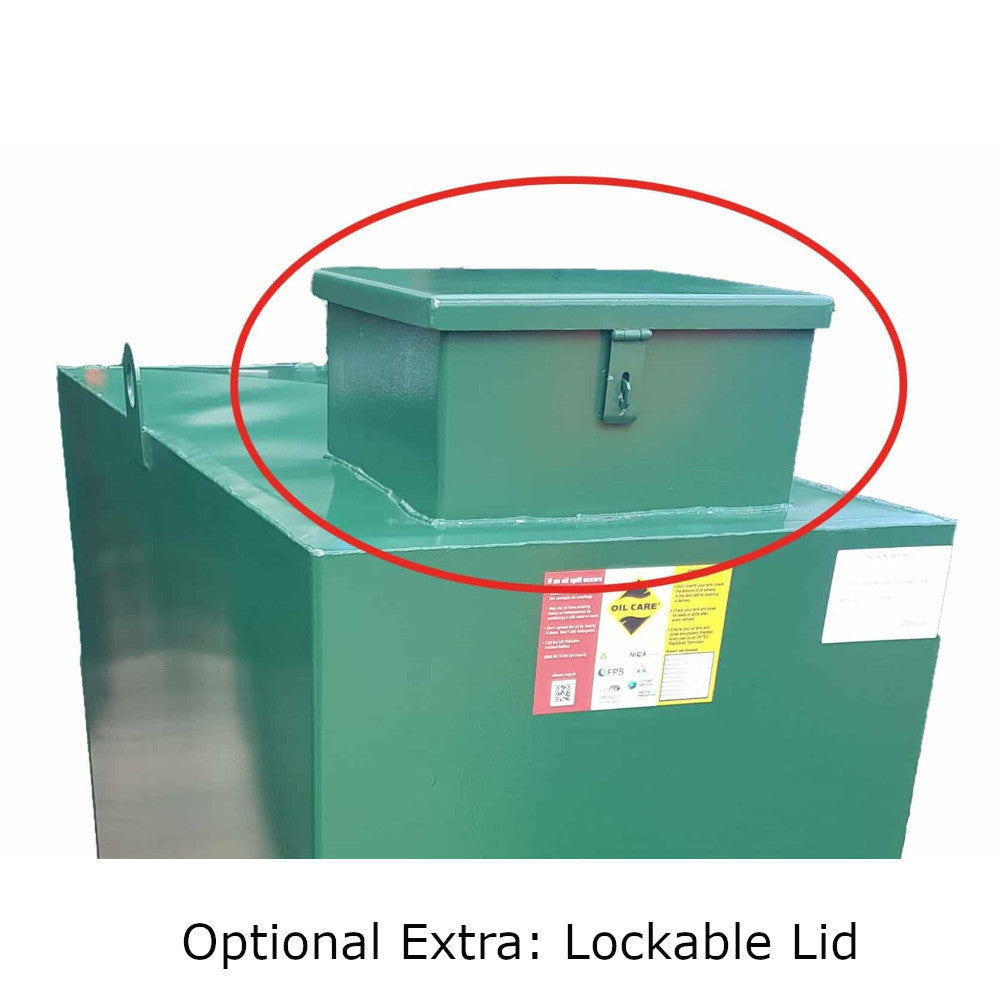

Lockable Security Lid - 400 x 400 x 200mm lockable box welded to the top of the tank to house all the top fittings on the tank (apart from the vent)
