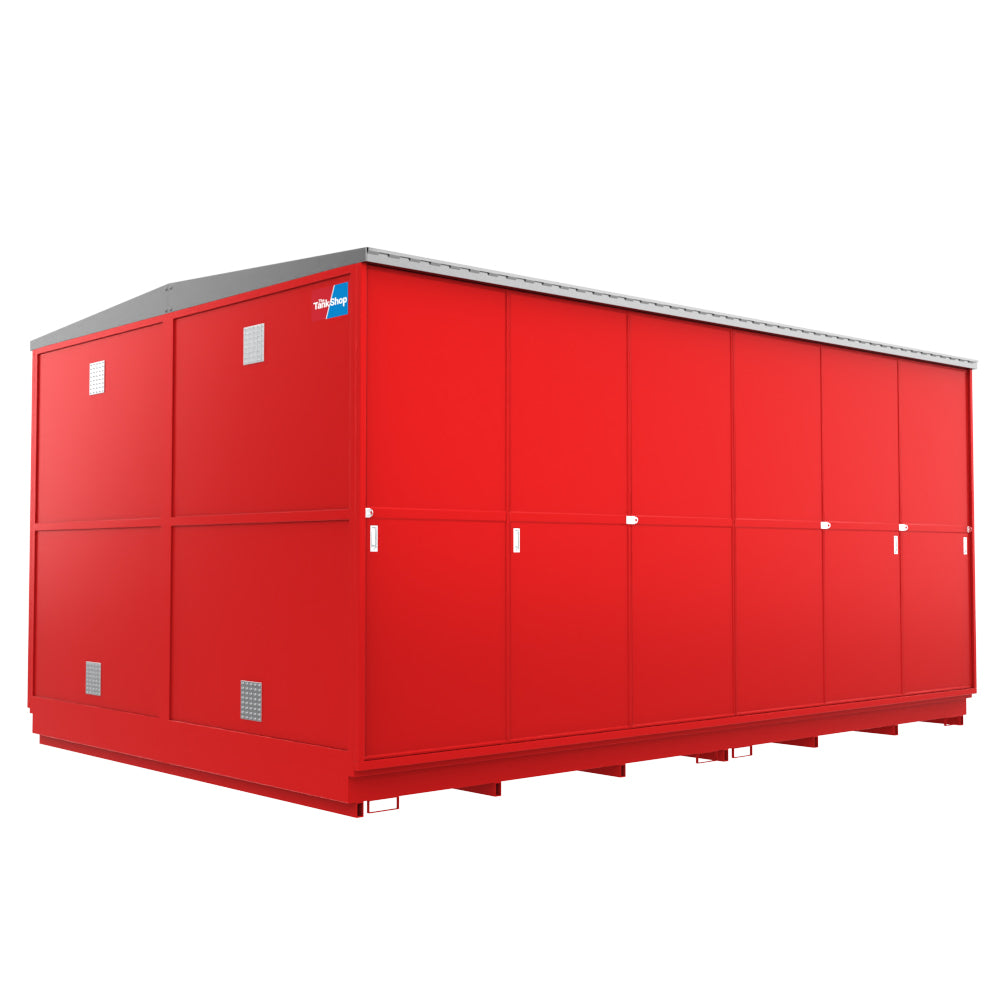

96 Drum / 24 IBC Dual Purpose Storage Unit
The 96 Drum / 24 IBC Dual Purpose Unit is a high-capacity, heavy-duty storage solution designed for the safe and compliant management of large-scale chemical and oil inventories. Engineered to accommodate either 96 standard 205-litre drums, 24 x 1000-litre IBCs, or a mixed configuration, this unit provides maximum flexibility for industrial sites.
Constructed from 2mm profiled mild steel and fully seam-welded, this unit is built to withstand the rigours of outdoor environments while ensuring total environmental protection.
Robust Construction & Security
The framework is manufactured from 100 x 50 x 3mm RHS, ensuring the structural integrity required to support heavy industrial loads. The unit features sliding doors on both sides, providing easy forklift access to both storage levels.
Environmental Compliance
To ensure your site remains compliant with the Control of Pollution (Oil Storage) Regulations and EA Guidance (PPG26), the unit features a massive 6000-litre integrated sump. This fully welded, leak-proof base is designed to contain 25% of the total stored volume, preventing any accidental spills from reaching the ground or watercourses.
Ventilation & Safety
Safety is paramount when storing hazardous substances. This unit is equipped with high and low-level louvred vents to prevent the dangerous accumulation of fumes. The base is fitted with removable galvanised grid flooring (optional) or heavy-duty support beams to ensure drums and IBCs remain stable and clear of any collected liquids.
Key Features:
Capacity: Stores up to 96 x 205L drums or 24 x 1000L IBCs.
Dual-Level Storage: Maximises footprint by utilising vertical space with two tiers of storage.
Heavy-Duty Build: 2mm profiled steel walls with a fully welded 6000L sump.
Access: Sliding doors on both sides for efficient loading/unloading.
Ventilation: High and low-level venting for airflow and gas dispersal.
Finish: Pre-treated and finished in a high-quality, weather-resistant paint (Standard colours: Blue, Green, Red, or Yellow).
UK Manufactured: Built in the UK to ISO 9001 standards.
Specifications:
External Dimensions: 8900mm (W) x 3300mm (D) x 3200mm (H)
Sump Capacity: 6000 Litres
Material: 2mm Mild Steel
Tare Weight: Approx 5000kg
Compliance: Meets all current UK Oil Storage Regulations

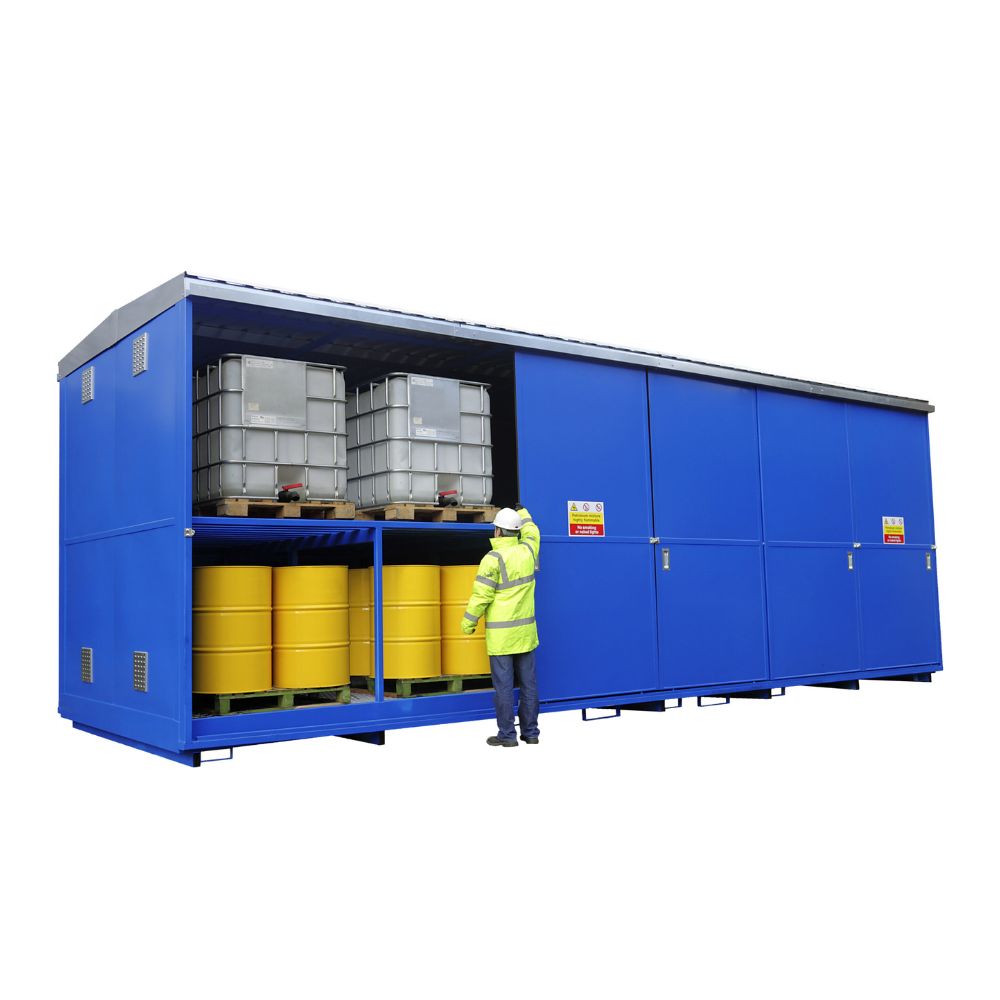

This model can hold up to 96 x 205ltr drums or 24 x 1000ltr IBCs across two levels.
