Wydale 57 Litre Wheel Arch Water Tank

Delivery Cost £24.95 + Vat | 2-5 Days
WydaleSKU: T57WBK5/T57WNA5

£125.00 exc. VAT
Sale price£150.00

Tax included

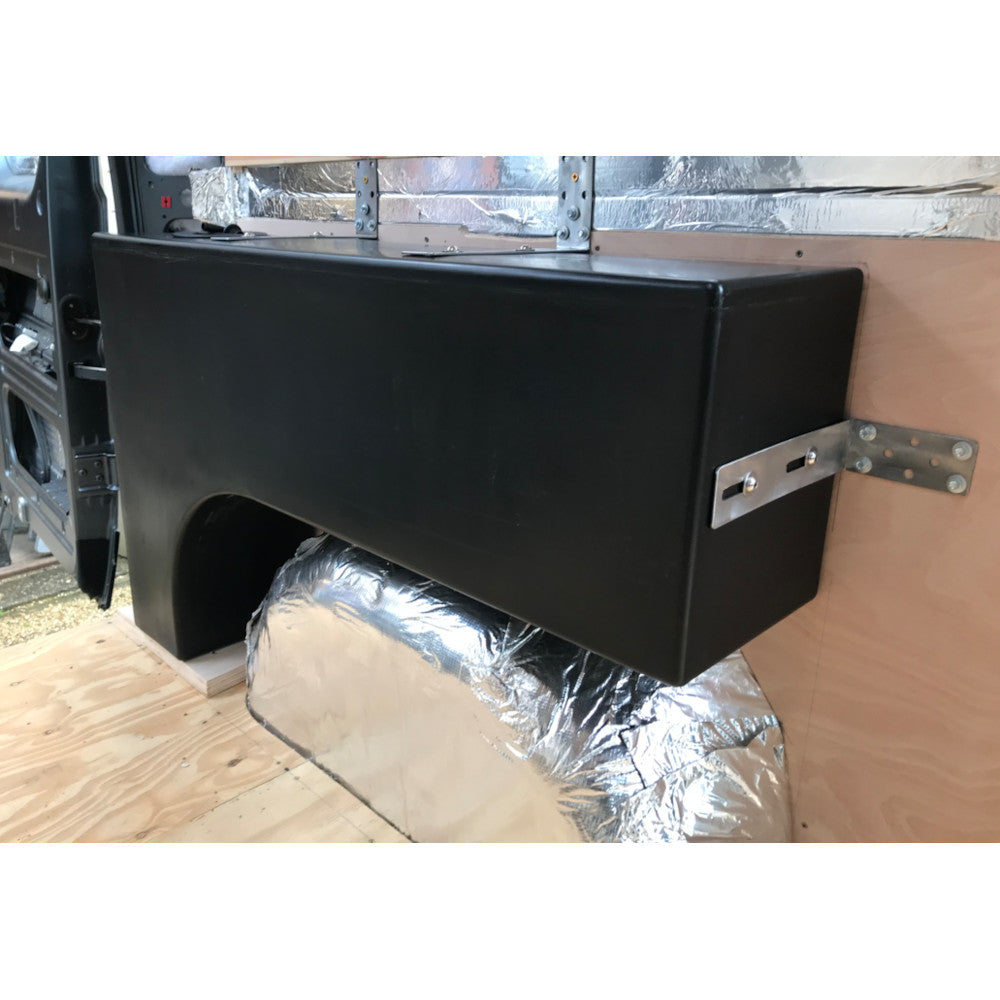

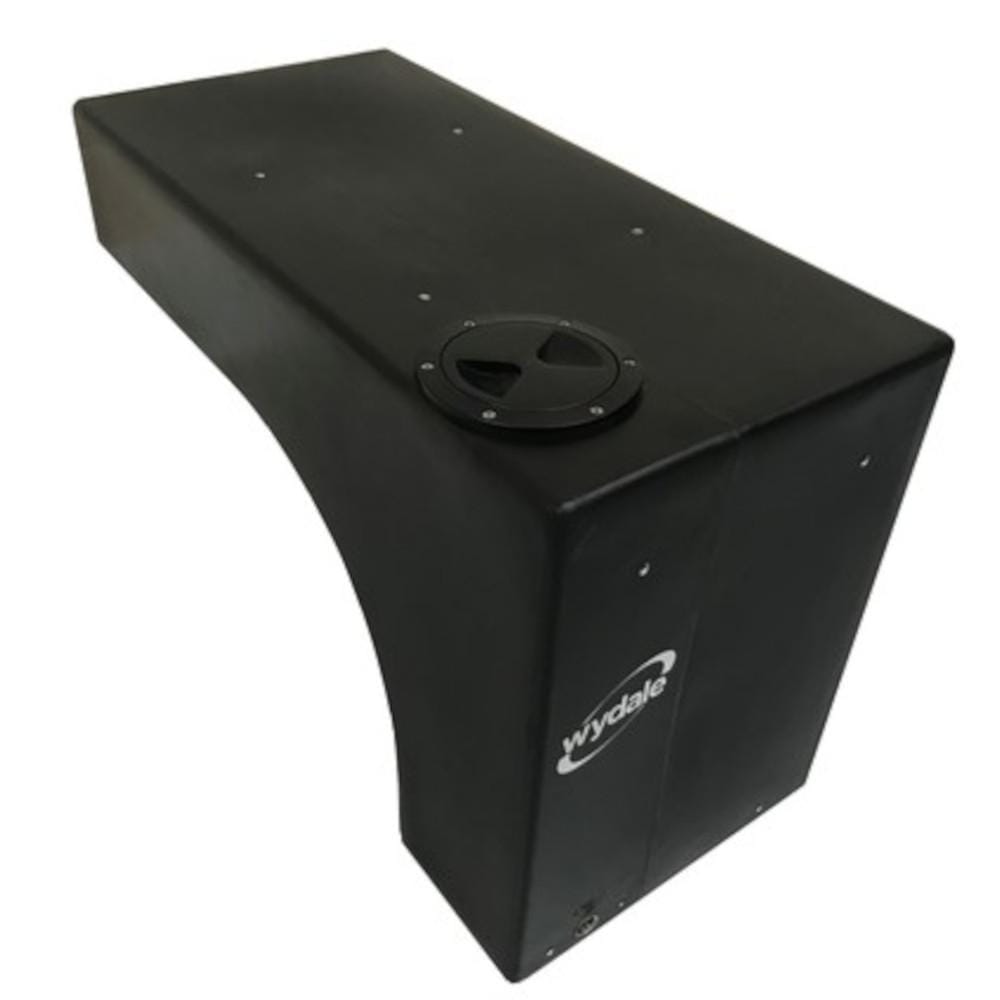

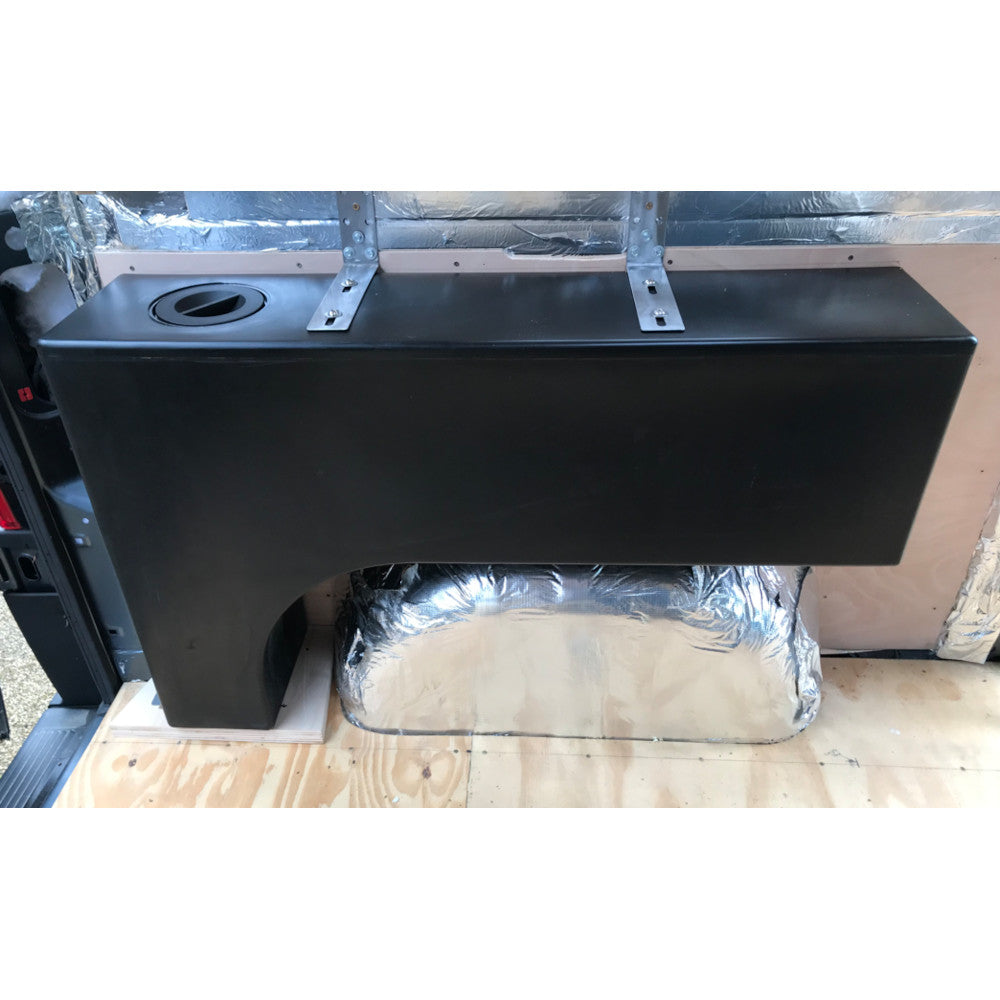

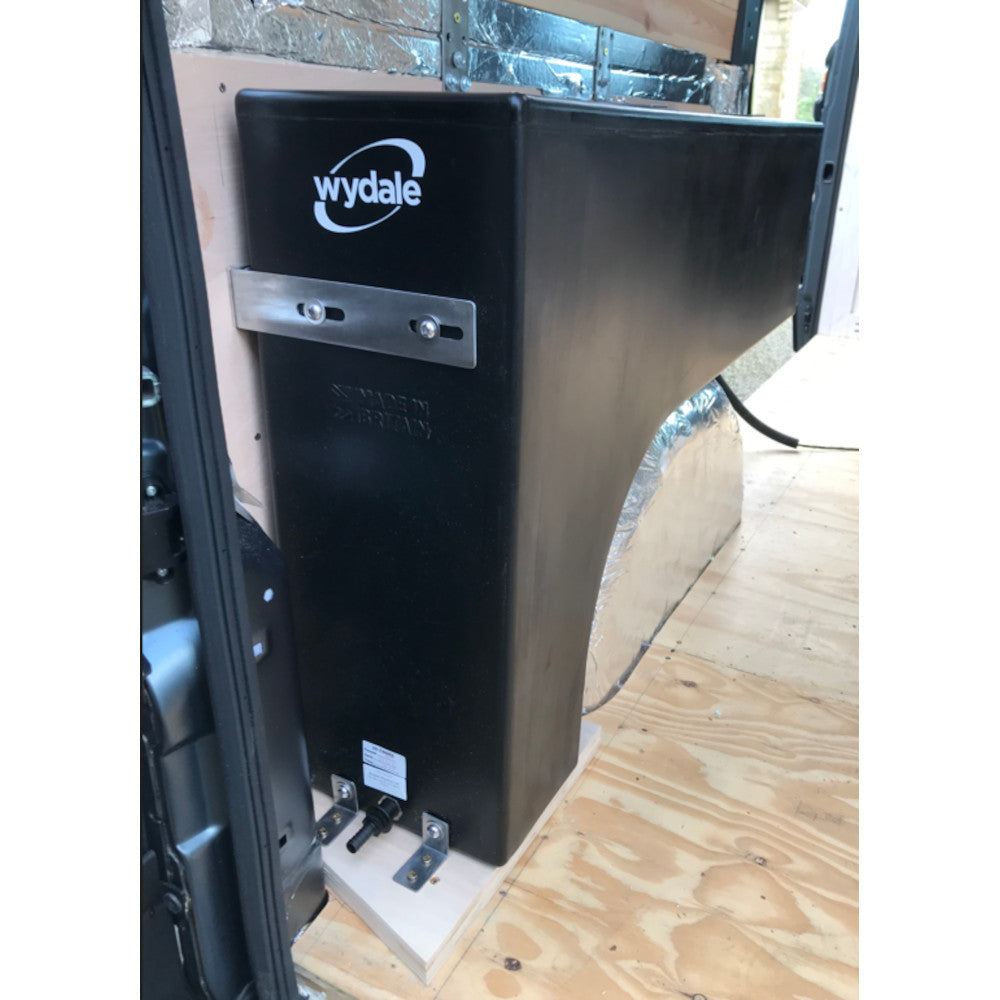

The 57 Litre Wheel Arch Water Tank is designed to fit most vans and pick ups. The tank can be placed over the wheel arch and fitted to the vehicle using the 11 x M8 inserts that are moulded into the tank. These wheel arch tanks are made from WRAS approved polymer and therefore can be used for potable/drinking water.

There are 3 optional extras kits, Fitting Kit, Submersible pump kit and plumbing kit, please see optional extras below for details. These kits can be used for potable/drinking water.

Please note: All Manufacturers Tank sizes and capacities quoted are subject to a +/- 3% variation.

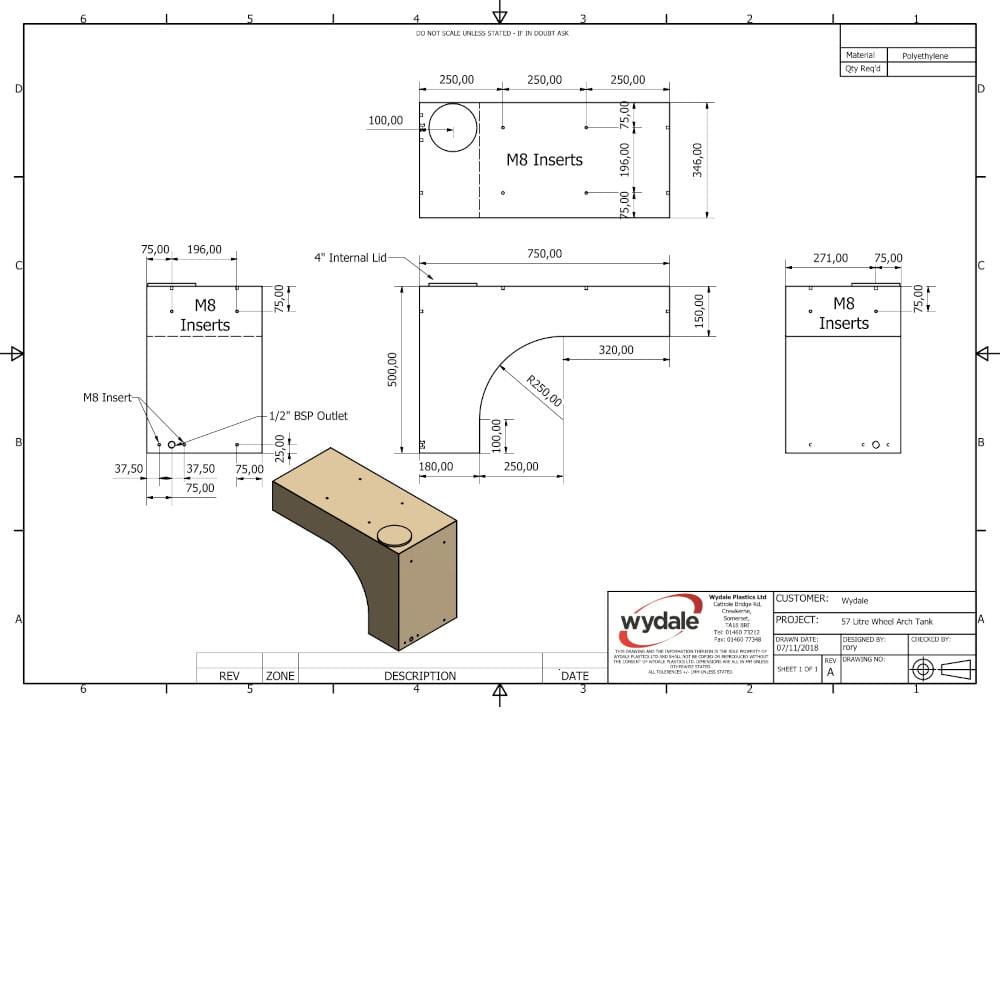

  • Capacity: 57 Litres
  • Height: 500mm (excluding Lid)
  • Depth: 346mm
  • Width: 750mm
  • Weight: 6.5kg
  • Colour: Black or Natural (semi-translucent)
  • Virgin Medium Density Polyethylene (MDPE)
  • 5" Plain Lid (amended from 4" August 2023)
  • 2 Year Warranty Against Manufacturing Defects

Optional Extras

57 Litre Fitting Kit:
This kit contains all the fittings to attach the tank to vehicle.


  • 6 x M8 x 12mm socket button head stainless steel
  • 6 x M8 x 25mm washer stainless steel
  • 2 x 50mm x 55mm x 30mm angle bracket
  • 4 x 150mm x 90mm x 60mm angle bracket

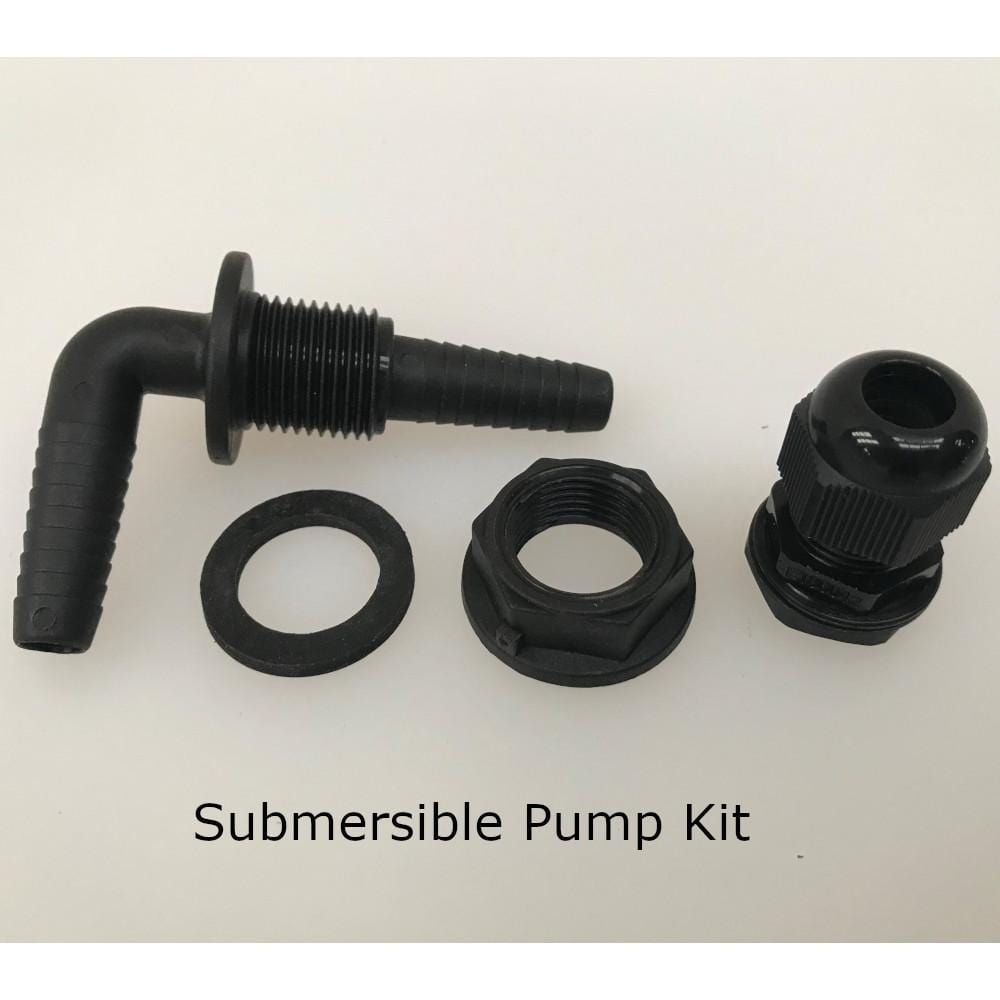

Submersible Pump Fittings Kit:
This kit can be used to allow a submersible pump (NOT Included) to be connected through the lid.
  • 1 x ½” BSP 90° bulkhead hose tail 11-13mm
  • 1 x ½” BSP back nut
  • 1 x ½” BSP gasket
  • 1 x cable gland
  • 1 x 10 metre roll PTFE tape

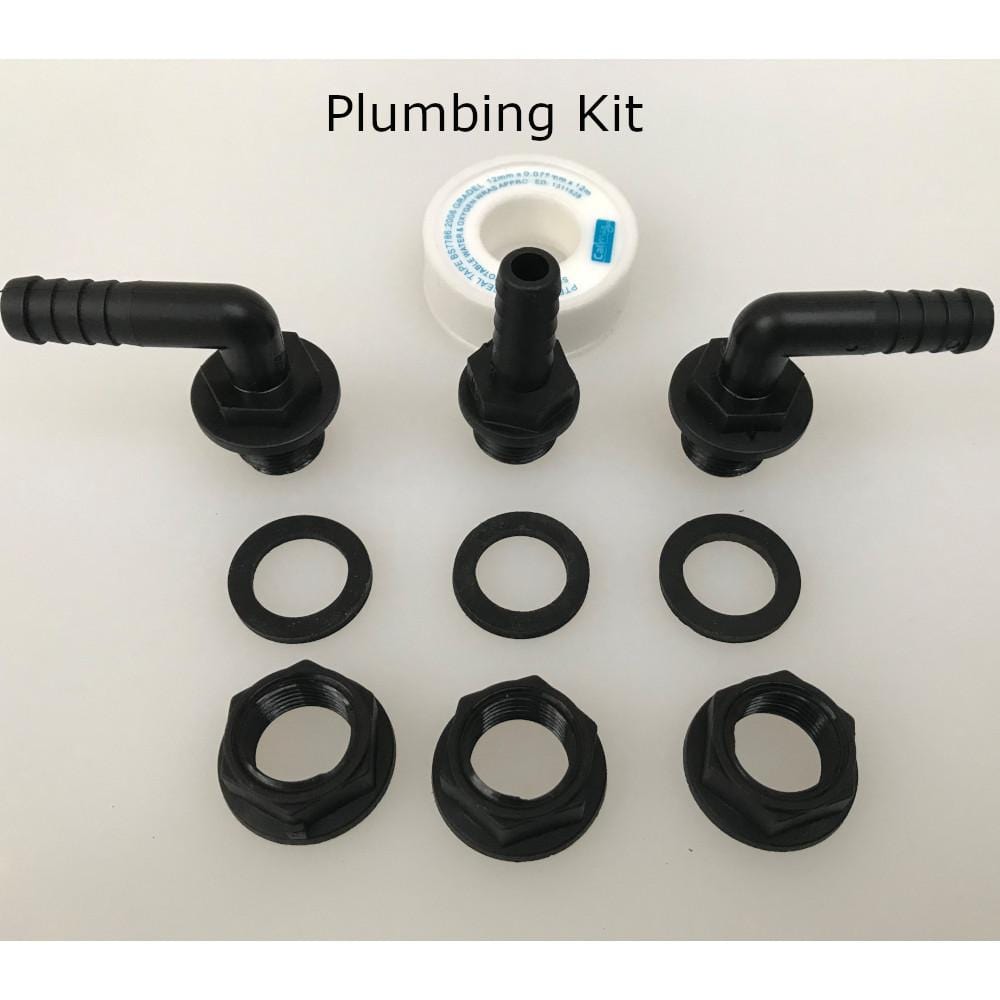

Plumbing Kit:
This kit has all the fittings required for the outlet, inlet and vent hoses.

  • 1 x ½” BSP x 13mm hose tail
  • 2 x ½” BSP 90° hose tail
  • 3 x ½” BSP gasket
  • 3 x ½” BSP back nut
  • 1 x 10 metre roll PTFE tape
