5000 Litre Underground Rainwater Harvesting System - Garden Irrigation

FREE Delivery*
FREE Delivery Customer To Offload | 2 Weeks
UK PlasSKU: HYDRO5000

Pay in 3 monthly instalments of .
Choose iwocaPay at checkout.
Price:
£2,200.00 exc. VAT
(
Sale price£2,640.00

Tax included

)

Description

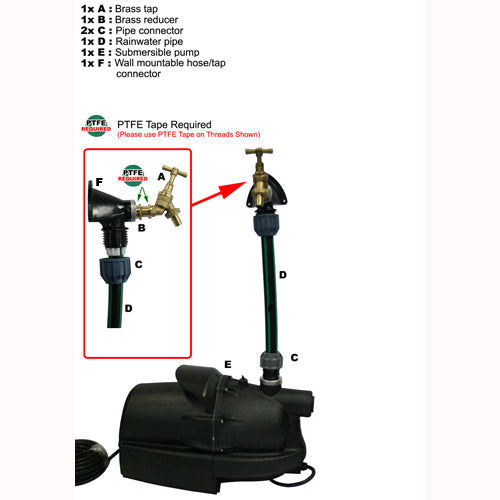

The 5000 Litre Garden Irrigation system is an underground rainwater harvesting system thats designed to be easy and simple to set up. The system consists of a submersible water pump which you will need to lower into the water tank then you will need to connect to an outside tap. It also comes with pipe work connections (4" drainage not included) and a filter. A rainwater harvesting system is designed for user to save money on mains water consumption and is better for storing, collecting and using for domestic and commercial purposes. You can use your stored water for many jobs around the garden and for things like car washing, window cleaning , irrigation etc.

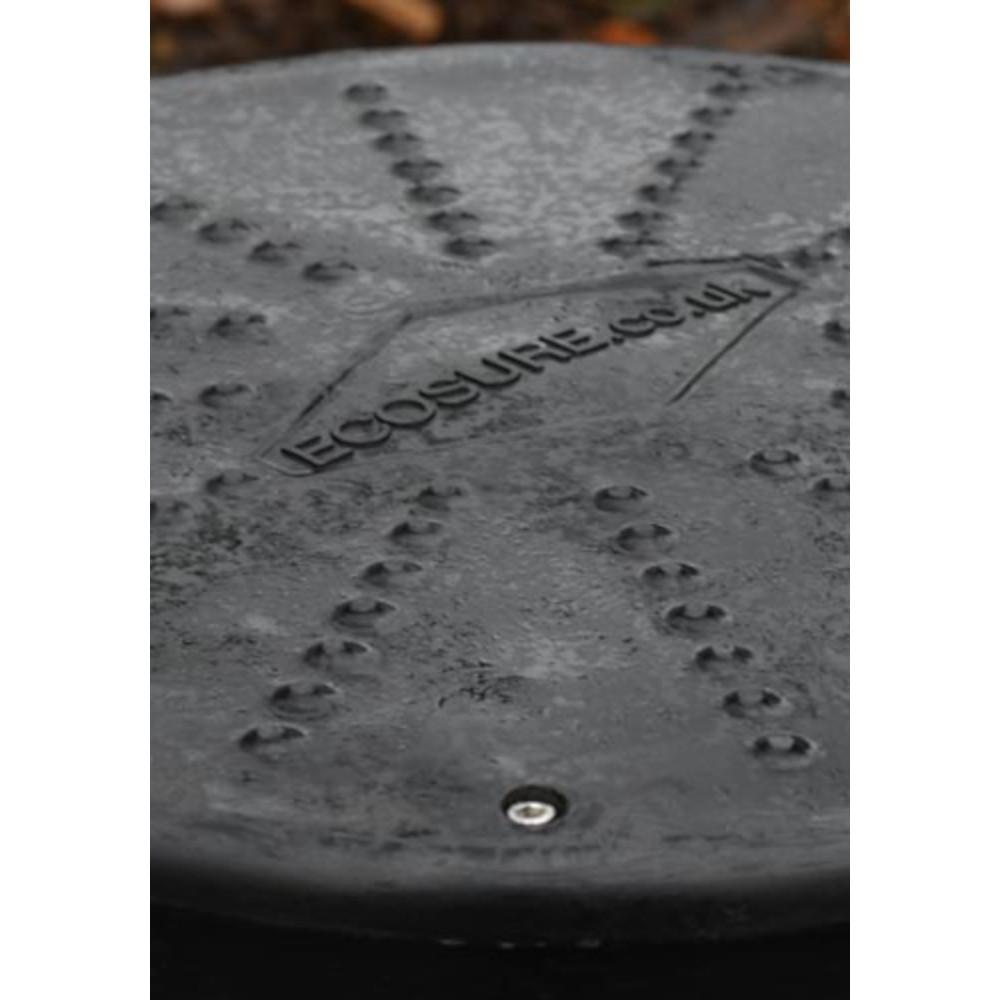

Tank Benefits - 5000 litre underground water tank is perfect for those with high water tables or generally difficult digging conditions. Each tank is fitted with a 16'' manhole access lid. Although not predrilled, inlet and outlets (upto 4") can be made anyway on the tank. Located at the bottom is a sump perfect for installing a water pump.

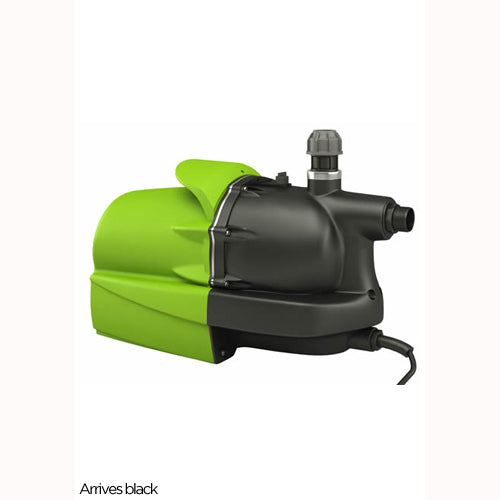

Water Pump - The HydroForce Series 3 is an electronically-controlled, pressure-sensitive, submersible, centrifugal roto-dynamic pump with no reciprocating parts. Max head (nominal) 35 metres, pump pressure (nominal) at outlet 3.5 bar, max suction 3 metres.

Underground Filter - Made from the same high-quality MDPE as the underground water tank, the filter box can be installed anywhere along the inlet pipe between the tank and the down pipe. Ensure you can gain access to the filter for cleaning. Please note that the filter box lid is designed to withstand foot traffic only.

Rainwater Pipe - This system comes with 25m of 25mm Rainwater Harvesting Pipe. This pipe can be easily identified be the Green strip running down Black pipe. This pipe must be used under the Water Regulations.

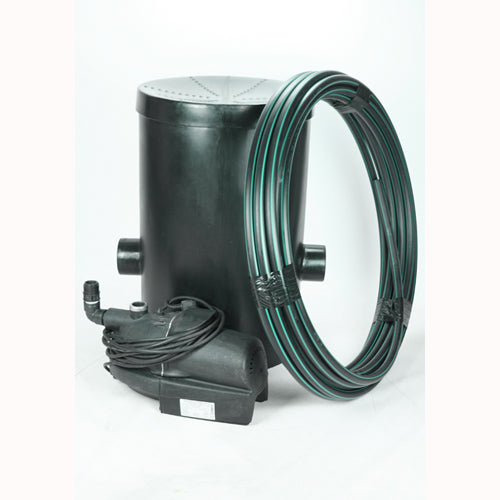

Delivered Complete with:

  • Capacity: 5000 Litre Underground Water Tank
  • Virgin Medium Density Polyethylene (MDPE)
  • 10 Year Warranty Against Manufacturing Defects
  • Height: 1675mm
  • Diameter: 2150mm
  • Weight: 200kg
  • Colour: Black
  • 1 x HydroForce Series 3 Water Pump
  • 1 x Walk-on Removable Lid
  • 1 x Extended Neck
  • 1 x In-Line Filter Box
  • 1 x 25m of 25mm Rainwater Harvesting Pipe
  • 1 x Outside Tap Wall Mounting
  • 1 x ¾" Brass Tap

Optional Extra:

  • Back Up In A Box - This back up in box detects when the tank water level is running low and tops up the water level to ensure the tank never runs out of a water supply.
