1800 Litre Steel Diesel Dispenser

This 1800 Litre Steel Bunded Diesel Dispensing Tank gives the user a diesel delivery system similar to forecourts. Each Steel Diesel Tank is pressure tested and visually inspected at the factory before dispatch and comes ready to fill with diesel and start refuelling. There are two Pumping options;

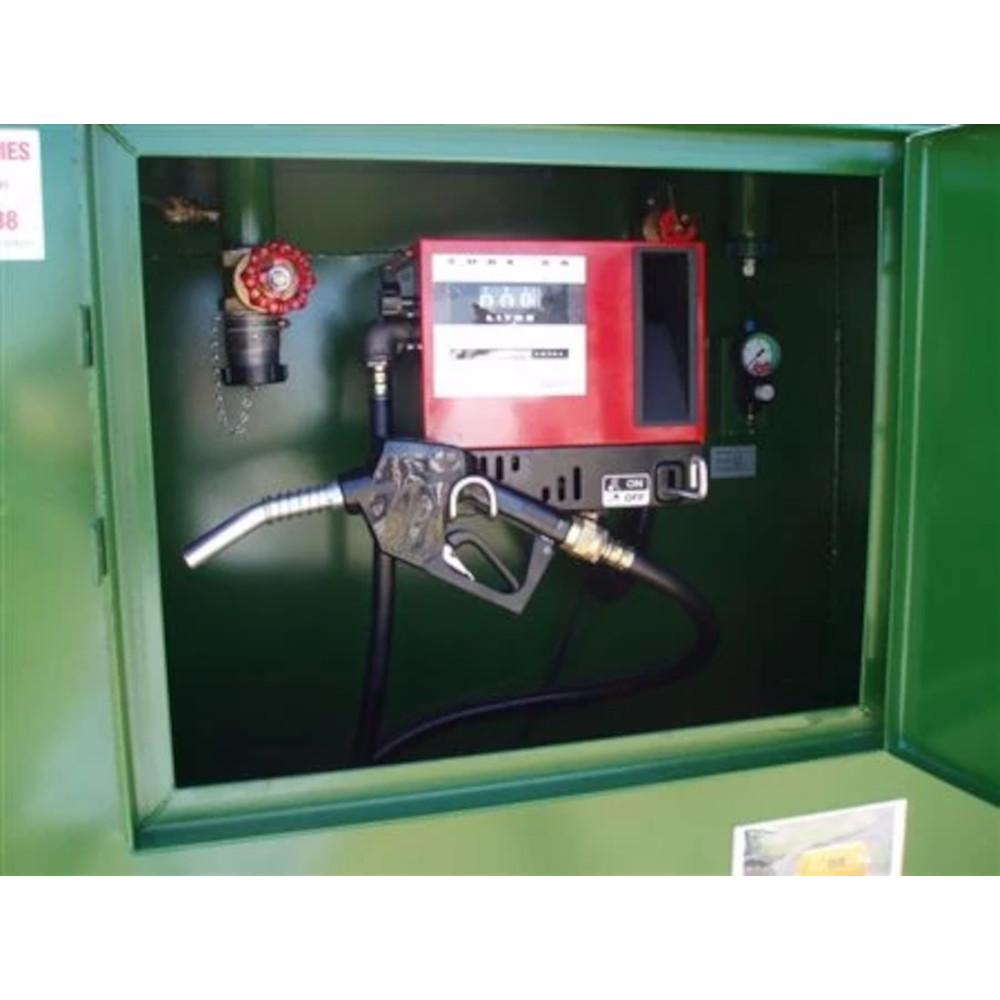

This 1800 Litre Diesel Dispenser comes complete with an electric (240v) pump complete with 4m delivery hose, auto shut off nozzle, mechanical flow meter. All of the pumping equipment is contained within the lockable cabinet for security. With a 2700 litre capacity this steel diesel dispenser is made from quality 2mm steel in England.

Delivered complete with:

• 110% Integrally Bunded Unit
• 100% Steel Construction - 2mm
• 1800 litre Capacity approx.
• Cabinet with Lockable Steel Door (Close Shackle Lock Cover)
• 240v Fuel Transfer Pump (56 lpm)
• 4m Delivery Hose
• Auto Shut Off Nozzle
• Mechanical Flowmeter
• 2" Fill Point with Dust Cap & Chain
• Clock Type Contents Gauge
• Secure Vent & Overfill into Bund
• Steel Base Plinths (Eliminating any Ground Contact with Sump Base)

• Undercoated & Finished in Green Gloss Paint (14c39)

Optional Extras:

• 10 Micron Filter - A Filter fitted inside the cabinet to remove dirt from fuel

Tank Dimensions:

Length: 2000mm
Width: 1250mm
Height: 1250mm
Weight: 250kg approx

This Steel Bunded Fuel Station is tough, robust and durable. The Tank Shops steel Diesel Dispensers offer a safe and secure solution to diesel storage and distribution in any environment.

Delivery of this Tank this only to address, the tank MUST be unloaded from the lorry by the customer, please make sure that you have suitable offloading facilities as these tanks are very heavy
