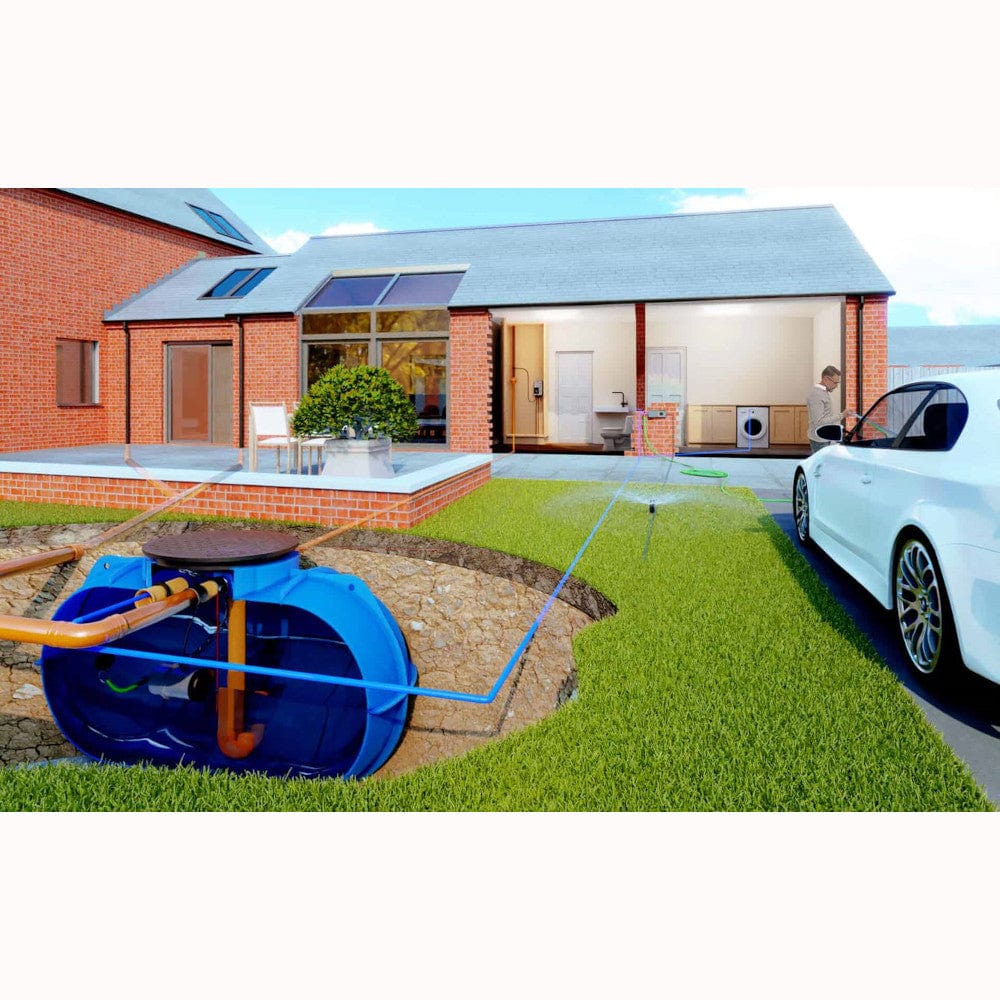

Atlantis 8400 Litre Underground Rainwater Harvesting System - Home & Garden Irrigation

This Atlantis 8400 Litre Underground Water Storage Tank is suitable for Non Potable water collection. This rainwater harvesting system can be used to flush toilets, feed washing machines as well as garden irrigation, washing cars etc.

This Premium Home and Garden Irrigation system comes with a high grade stainless steel submersible 230 volt electric pump, rodent guard, pump turret and filter system, a Top up Controller so the tank is filled by the mains water should the tank run dry, floating intake ensures that only the clean water passes through the system (not water from the bottom or top of the tank) Calmed Inlet - removes the kinetic energy form the water as it flows into the tank, preventing it from stirring up the tank contents. Pump Lifting Chain - attached to the pump this allows the pump to be lifted out of the tank for servicing and maintenance

This robust water storage tank is manufactured in the UK and is moulded from Polyethylene using a rotational moulding process which produces a stress-free product.  Furthermore, there are many design features that make this tank stand out.  The high strength ribbed design allows for environmentally friendly pea-gravel back-fills which as a result eliminates the need for the high costs and difficulties of encasing a tank in concrete.  The shallow-dig depth also makes it easier to install and maintain, as well as being ideal for areas with a high water table (certain installations may require further advice and an alternative installation method).  The curved design allows more efficiency when using submersible pumps as it enables all the water, even from the bottom of the tank to be pumped out.

Tank Specifications:

• Capacity: 8400 Litre
• Shallow dig design
• Ribbed & curved design providing strength and efficiency
• 600mm access point
• Height: 1725mm
• Length: 3970mm
• Width: 2700mm
• Weight: 400kg
• 10 Year Warranty, warranty manual supplied with tank

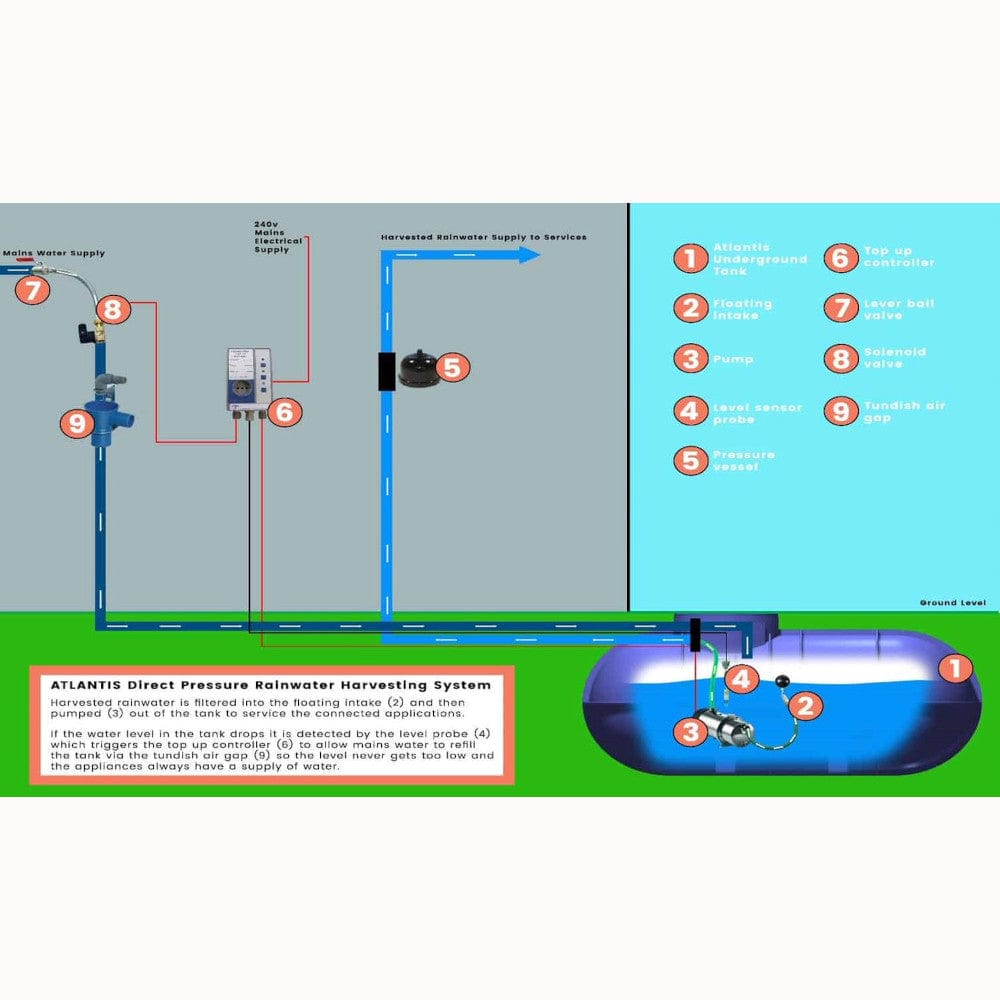

Rainwater Harvesting System Specification:

• Stainless steel submersible water pump, with combined float switch to protect against running dry
• Rodent Guard - prevents rodents and large debris from entering the tank via the overflow

• Patronen Filter - self cleaning stainless steel mesh filter cartridge within plastic housing

• Pump Turret - flexible pump to access port connection

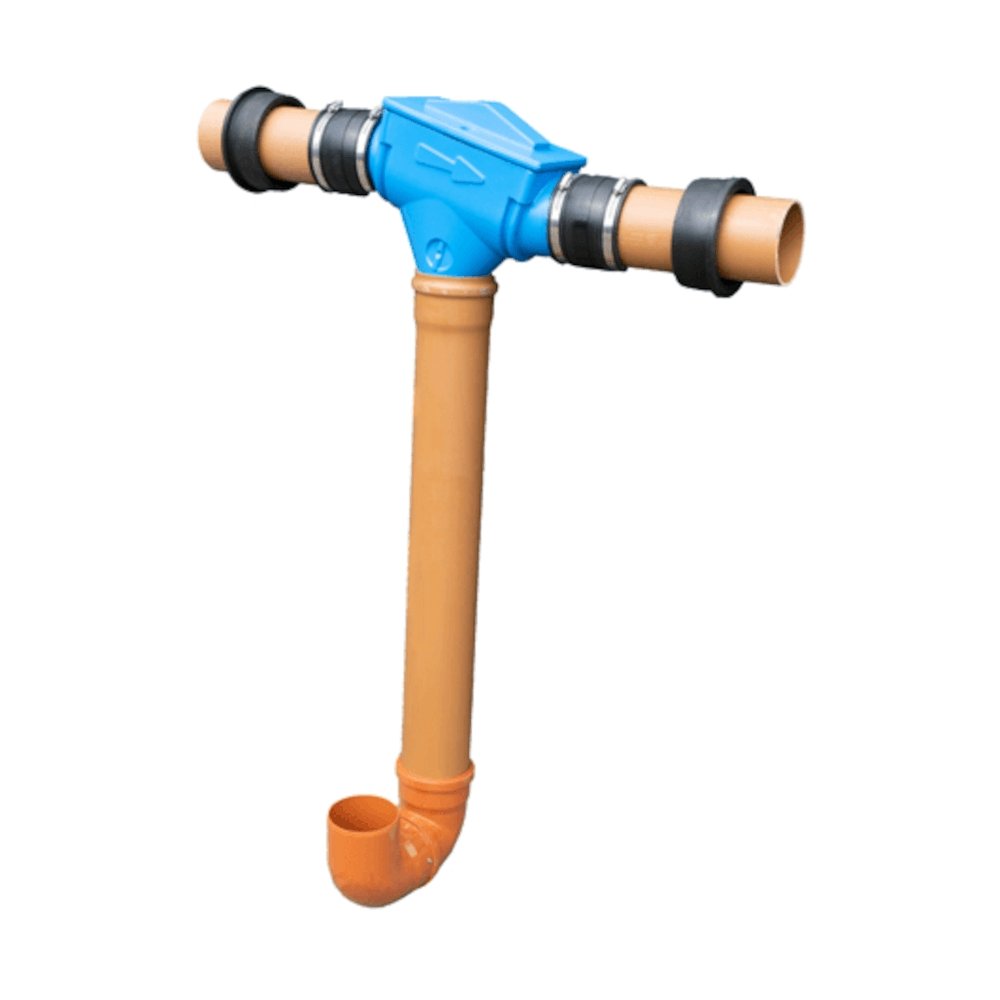

• Calmed Inlet - removes the kinetic energy form the water as it flows into the tank, preventing it from stirring up the tank contents
• Pump Lifting Chain - attached to the pump this allows the pump to be lifted out of the tank for servicing and maintenance
• Floating Intake - ensures that only the clean water passes through the system (not water from the bottom or top of the tank)
• Top-Up Controller - kit to automatically top up the tanks water level so the tank never runs out of water

Optional Extras:

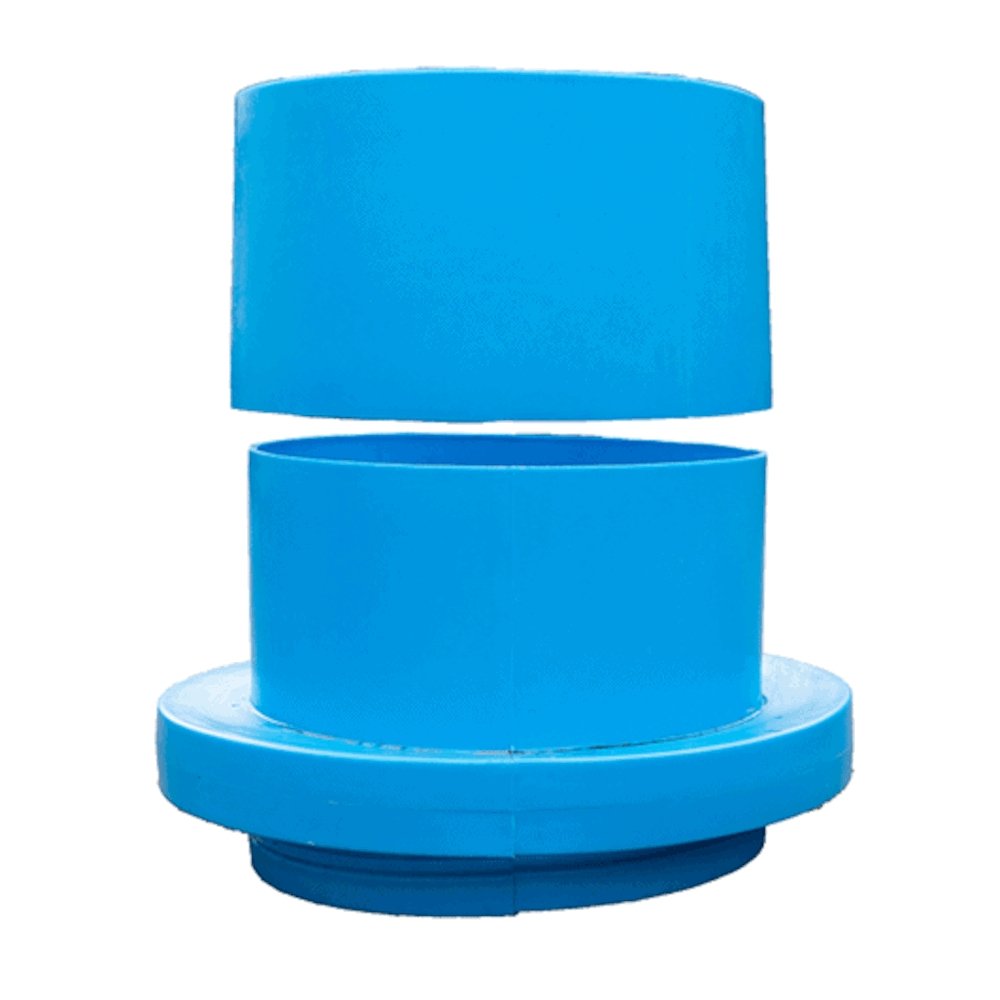

• Telescopic Neck - this can be placed on top of the existing turret on the tank to provide an extra 300mm – 800mm of depth if required

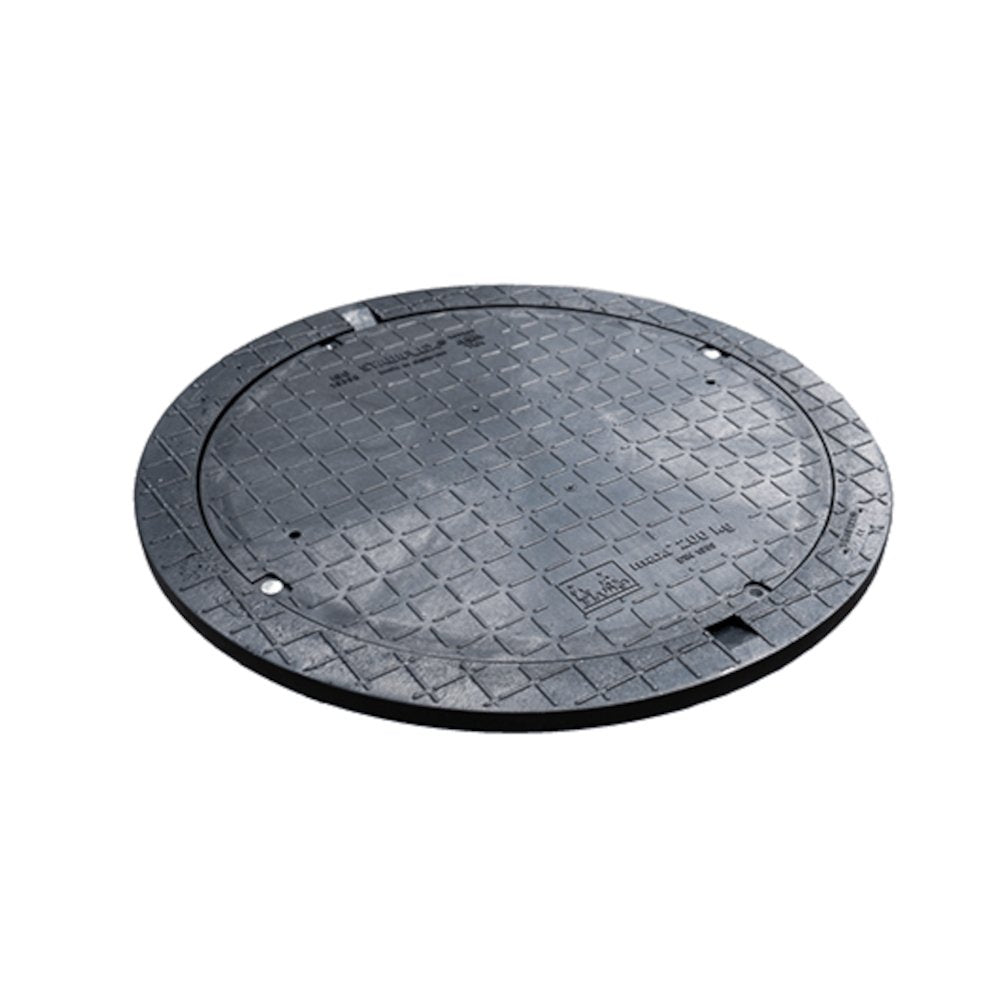

• Pedestrian Lid Cover - this lid is suitable for pedestrian use only, potable and non potable versions
• Vehicle Lid Cover - this lid is suitable for vehicle use

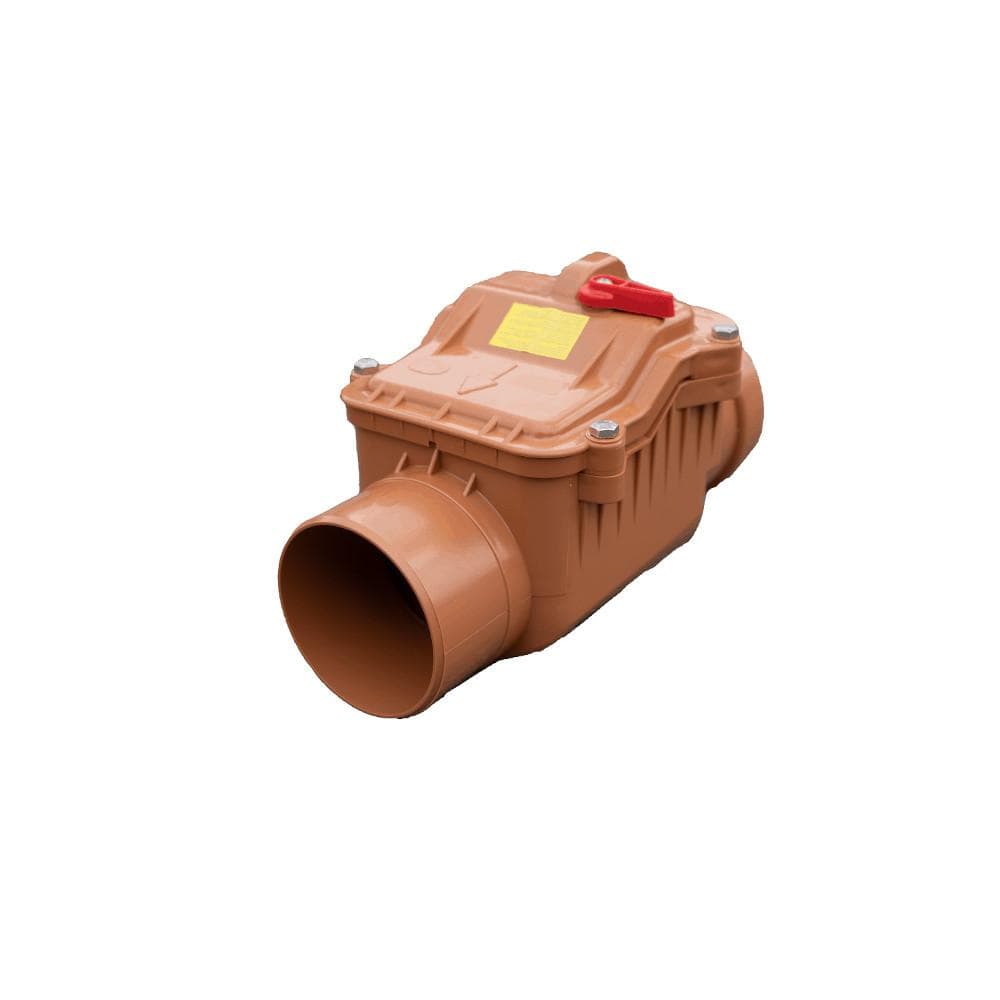

• 110mm Back-flow-Non Return Valve - this is to stop flood back-flow into the tank
