Atlantis 2450 Litre Single Skin Oil Tank - SIP.H2450
This Single Skin Heating Oil Tank from Atlantis is a great choice for domestic heating oil installations. This plastic single skin oil tank has a 2450 litre capacity and 3 year warranty, this tank is suitable for heating oil, kerosene or diesel. We also have this tank available as a Bunded Tank - BUP.H2450
Delivered complete with:
- 3 Year Warranty (register your warranty here)
- 2" Fill Point
- 4" Inspection Point with Screw Cap
- 1" BSP Bottom Outlet (industry standard to fit a bottom outlet fitting kit to your pipework)
Tank Dimensions:
Length: 2050mm
Width: 1330mm
Height: 1355mm
Weight: 90kg
Optional Extras:
-
Bottom Outlet Fitting Kit (Economy) - Everything you need to connect the 1" bottom outlet on the tank to your pipe work (isolation valve, filter bowl, compression fitting, PTFE tape) - not required if using the sight gauge
-

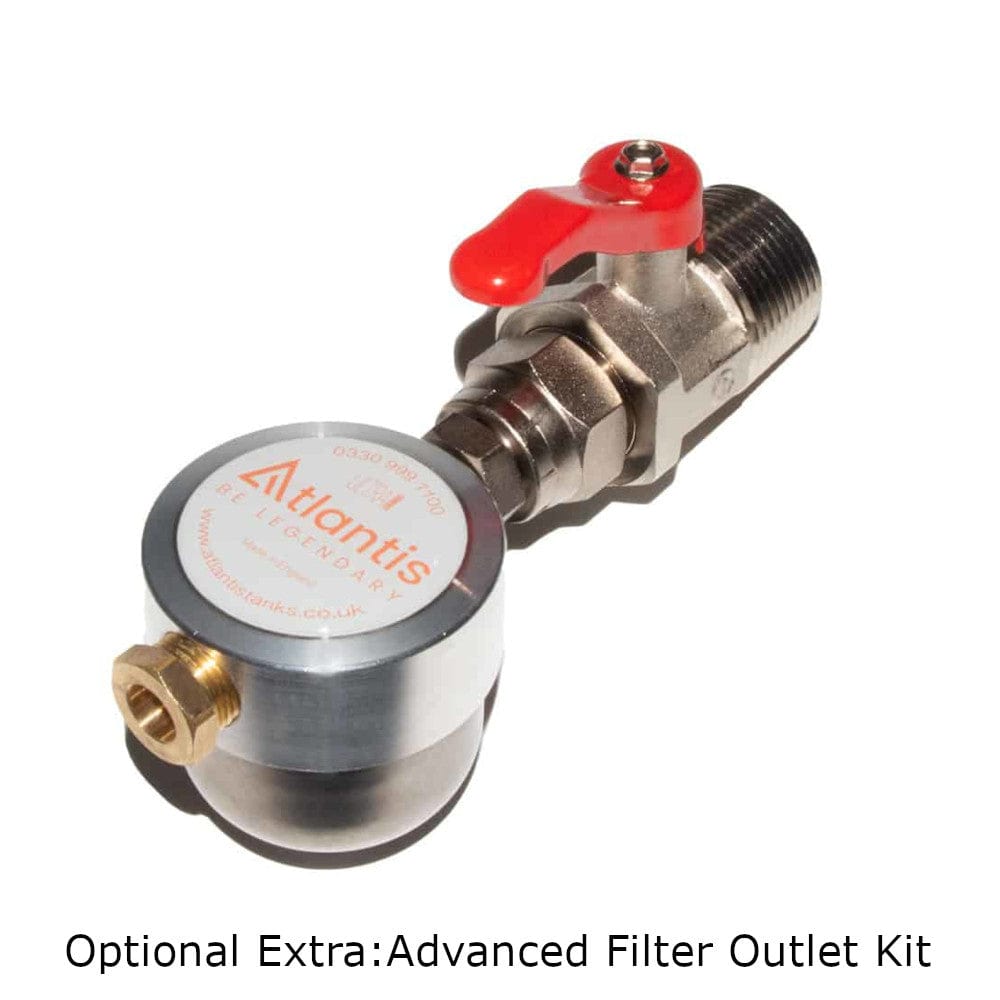

Bottom Outlet Fitting Kit (Advanced) - 1" shut off valve and filter. The filter is a separate component fitted after the valve, enabling the tank supply to be disabled should anything happen to the filter. All components are UK made. Supplied with 1 roll of PTFE tape.
-

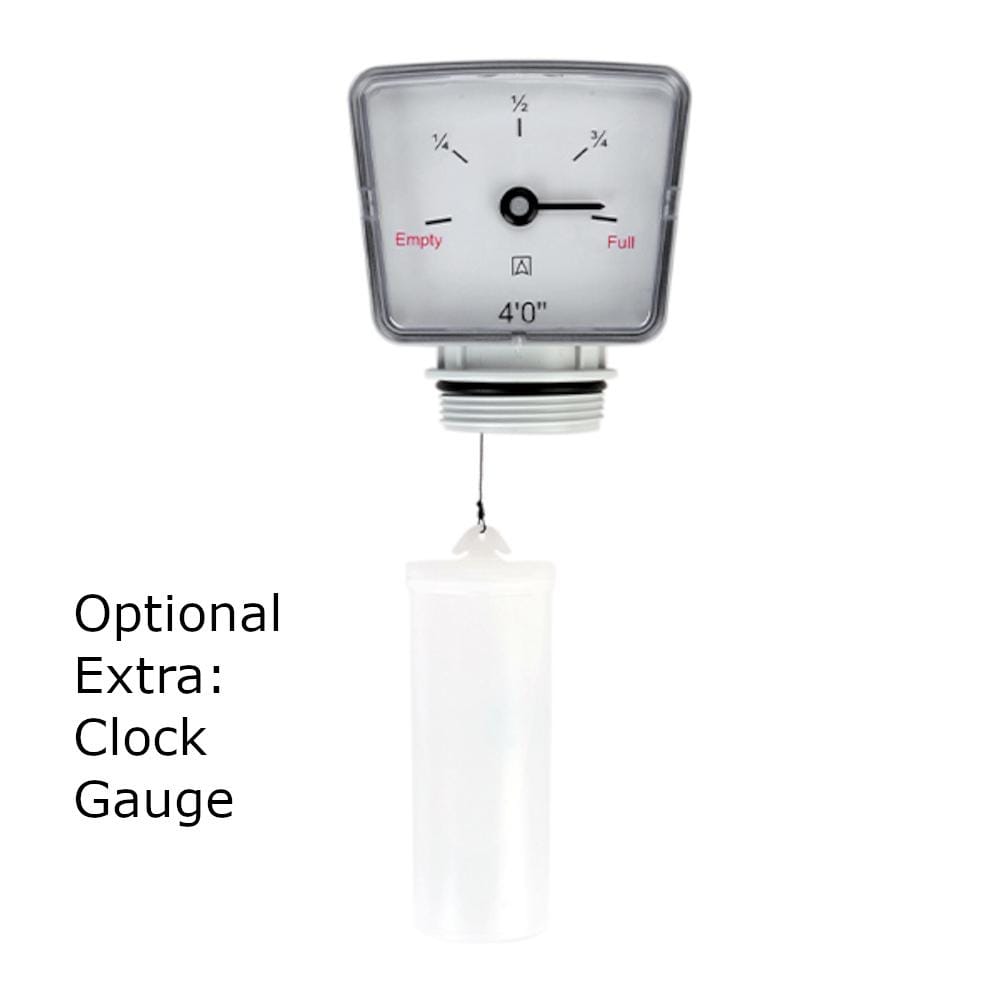

Clock Face Contents Gauge - A simple gauge using a float in the tank attached to the clock face gauge that is screwed into the outlet on top of the tank.
-
Gem Sight Gauge - A tube at the side of the tank with a simple "pull to read" oil tank level indicator. Complete with an integrated paper filter and incorporated isolation valve. Multi-directional outlet (both at 90 degrees to the tank) so it can feed up to 2 boilers.
-

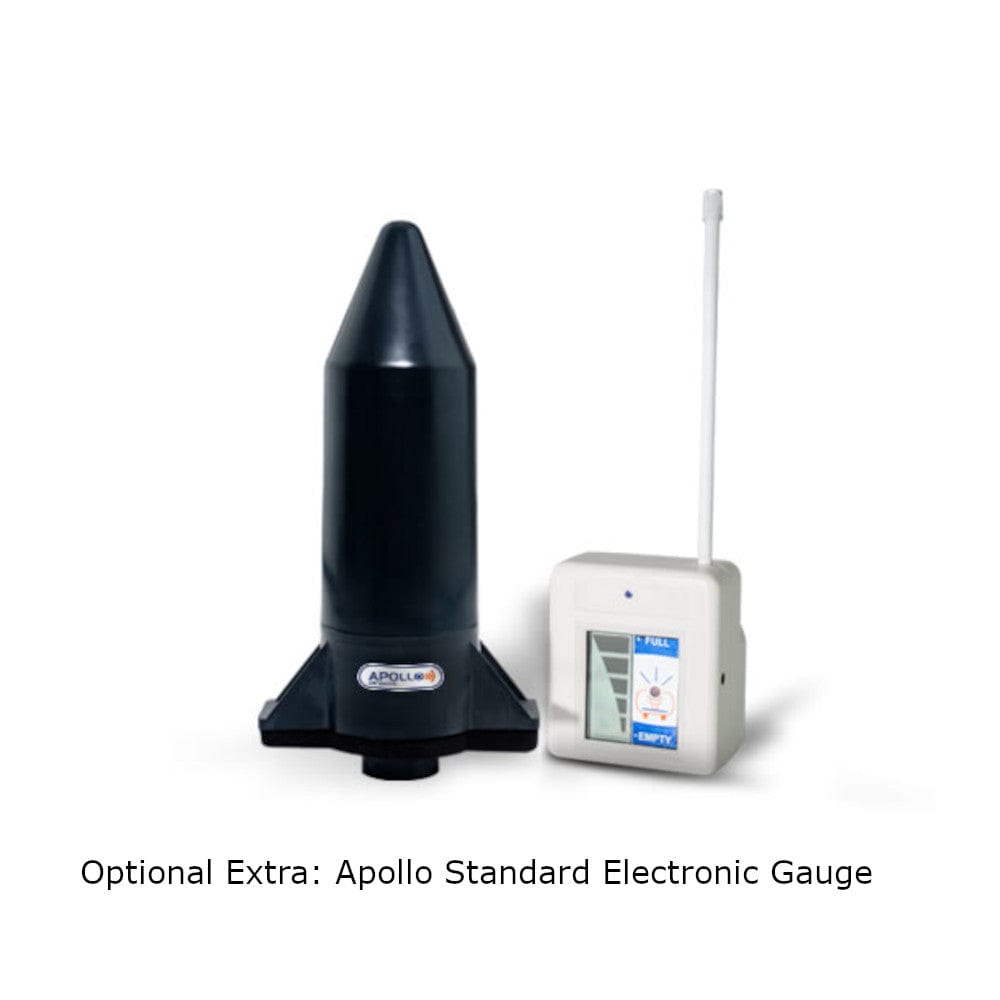

Apollo Standard Electronic Contents Gauge - A simple 2 part gauge, one part sits on the inner tank and sends a message to the second part plugged into a electric socket up to 200 metres away.
Installation Requirements:
Cement Base Length: 2650mm
Cement Base Width: 1930mm
