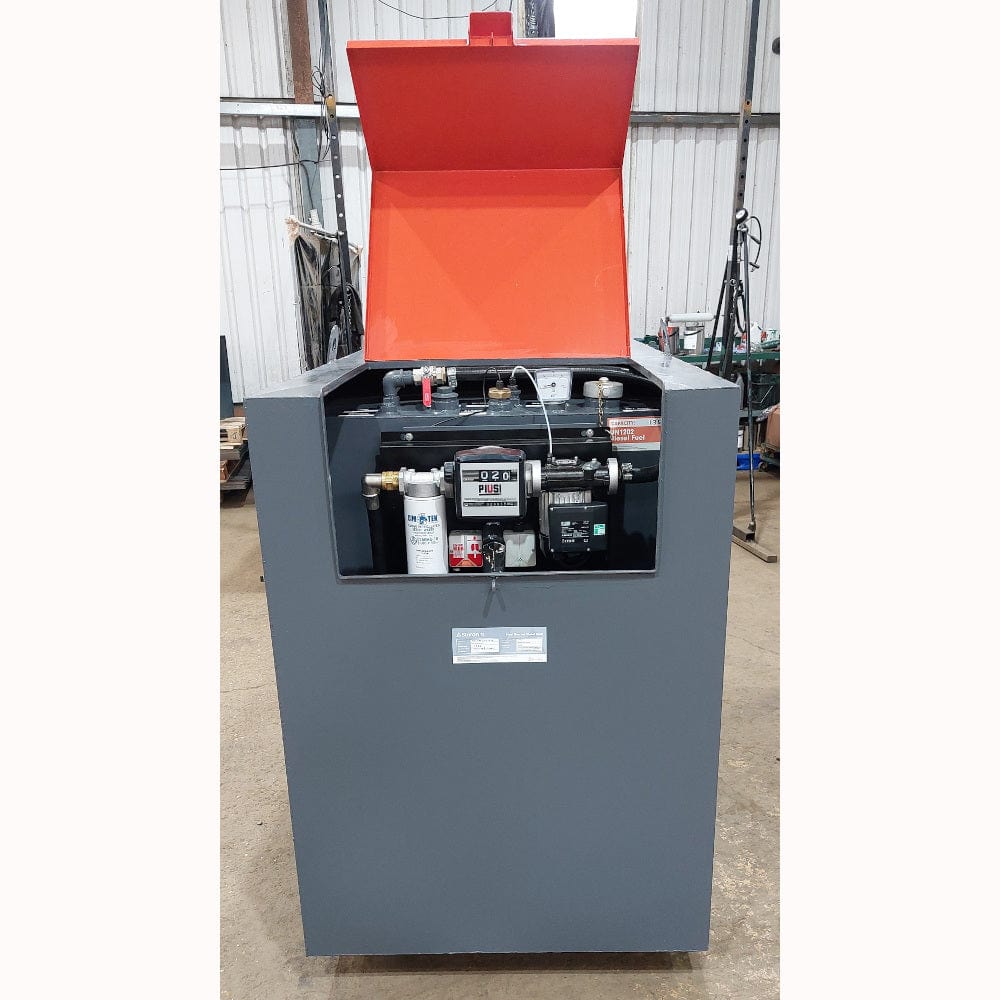

Atlantis 1350 Litre Steel Bunded Diesel Dispenser

The Atlantis 1350 litre steel bunded diesel and HVO dispensing tank for commercial applications and is well suited for agricultural and construction sites. This diesel or HVO dispenser comes with either a 230 volt pump kit or a hand pump kit (see specifications below).

These tanks are manufactured to the highest standards and conform to BS799 pt5. These tanks are painted with 2 coats of our specially formulated anti rust coating system designed to give maximum protection.

Tank Specification:

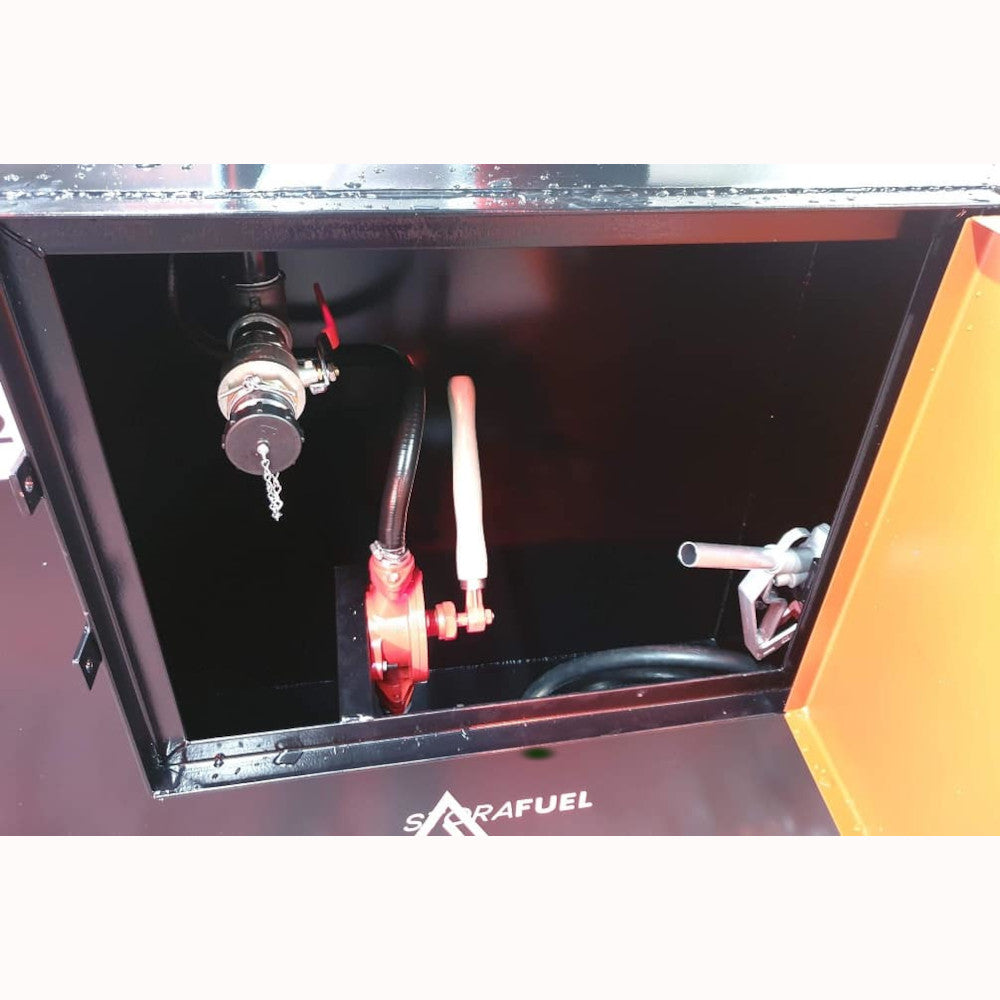

• Security cabinet – front mounted

• Lockable cabinet swing door (optional roller shutter door available)

• 3″ fill point inside cabinet, c/w aluminium cap & chain

• Tank & bund vent

• 1″ pump feed (inside cabinet)

• 1″ feed and return (spare)

• Clock face gauge

• Overfill alarm (battery powered)

• Internal tank bracing

• This tank is made in accordance with BS799pt5

• Material: Steel to BS EN 10025-2:2004 S275JR

• Outer tank forms the required bund, with capacity for 110% of the total liquid being stored.
• Mounted on bearers (full width)

• Tank painted RAL 7015 grey
• Door painted RAL 2001 orange
• Small tin of “touch-up” paint for applying when scratches might occur
• 10 Year warranty on tank, 1 year warranty on pumps (register your warranty here)

Hand Pump Kit - Semi Rotary Diesel or HVO Hand Pump Kit, 10 Micron Water & Particle Filter, 4m Hose, Manual Nozzle (available with or without filter)

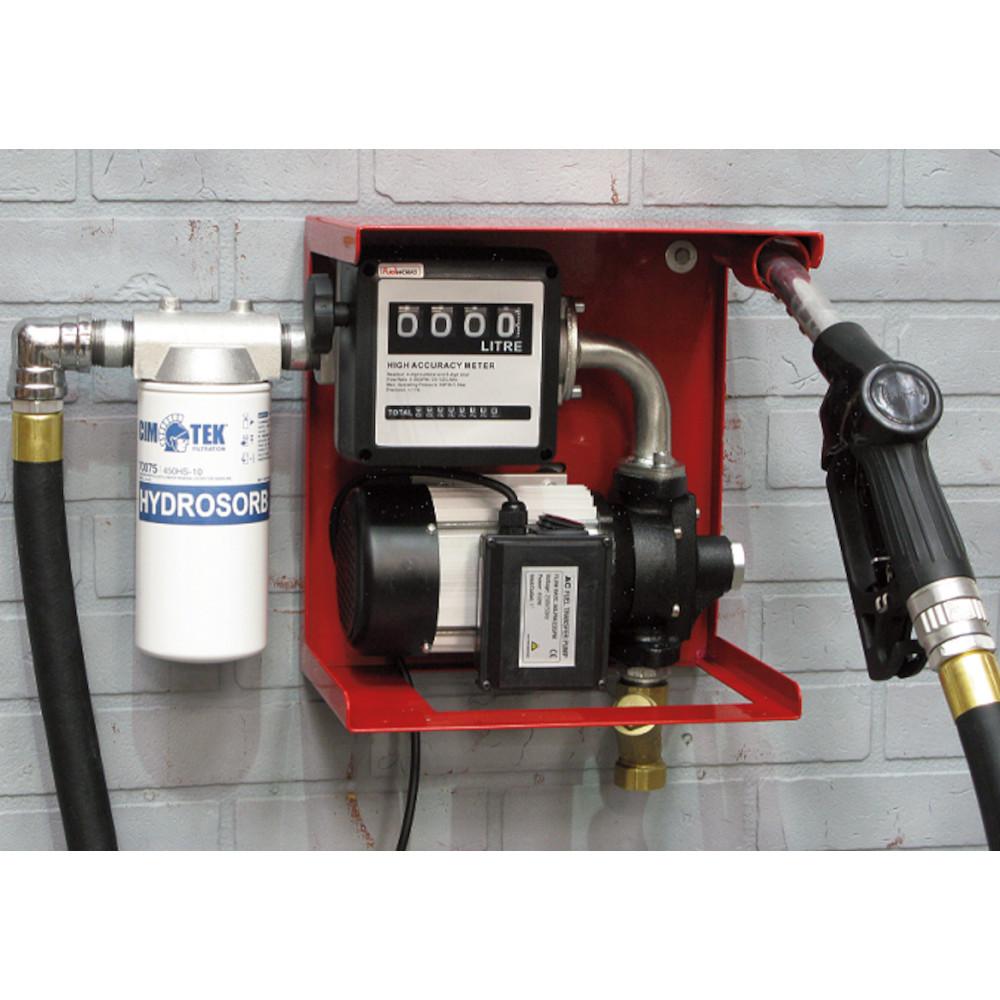

230 Volt Pump Kit (45 or 75 lpm) - HYTEK Economy Pump - 45 or 75 LPM 230v Pump, 10 Micron Water & Particle Filter, 6m Hose, Auto Nozzle, Mounting Bracket for Pump, Mechanical Flow Meter - Pump kits need wiring in

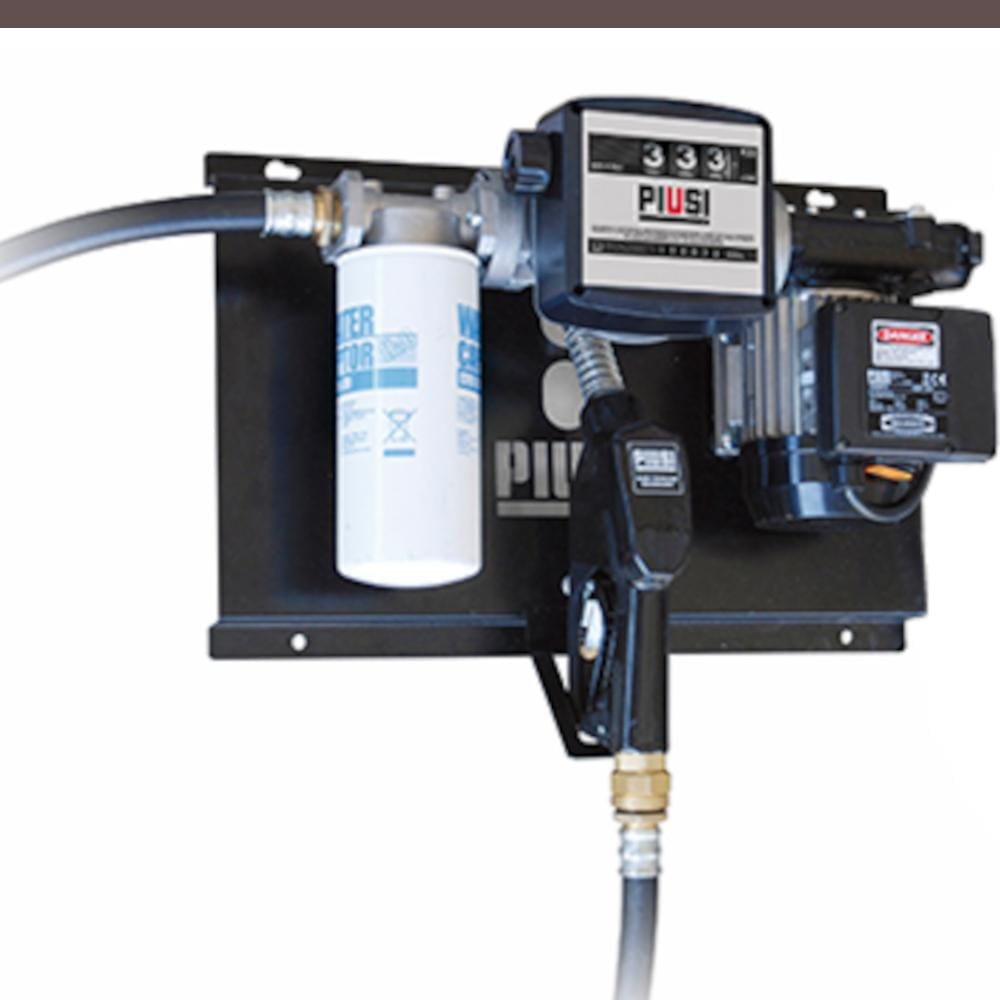

230 Volt Pump Kit (50, 70  or 100 lpm) - PIUSI Premium Pump - 50, 70 or 100 LPM 230v Pump, 10 Micron Water & Particle Filter, 6m Hose, Auto Nozzle, Mounting Bracket for Pump, Mechanical Flow Meter - Pump kits need wiring in

Fuel Management - various options available (please contact us)

12v, 24v, 110v and petrol pump - various options available (please contact us)

Tank Dimensions:
Length: 1748mm
Width: 948mm
Height: 1298mm
Weight: 290kg
