5000 Litre Steel Diesel Dispenser

This 5000 Litre Steel Bunded Diesel Dispensing Tank gives the user a diesel delivery system similar to forecourts. Each Heavy Duty Steel Diesel Tank is pressure tested and visually inspected at the factory before dispatch and comes ready to fill with diesel and start refuelling. Each 5000 Litre Diesel Dispenser comes with an Electric (240v) Pump complete with 4m delivery hose, auto shut off nozzle, mechanical flow meter

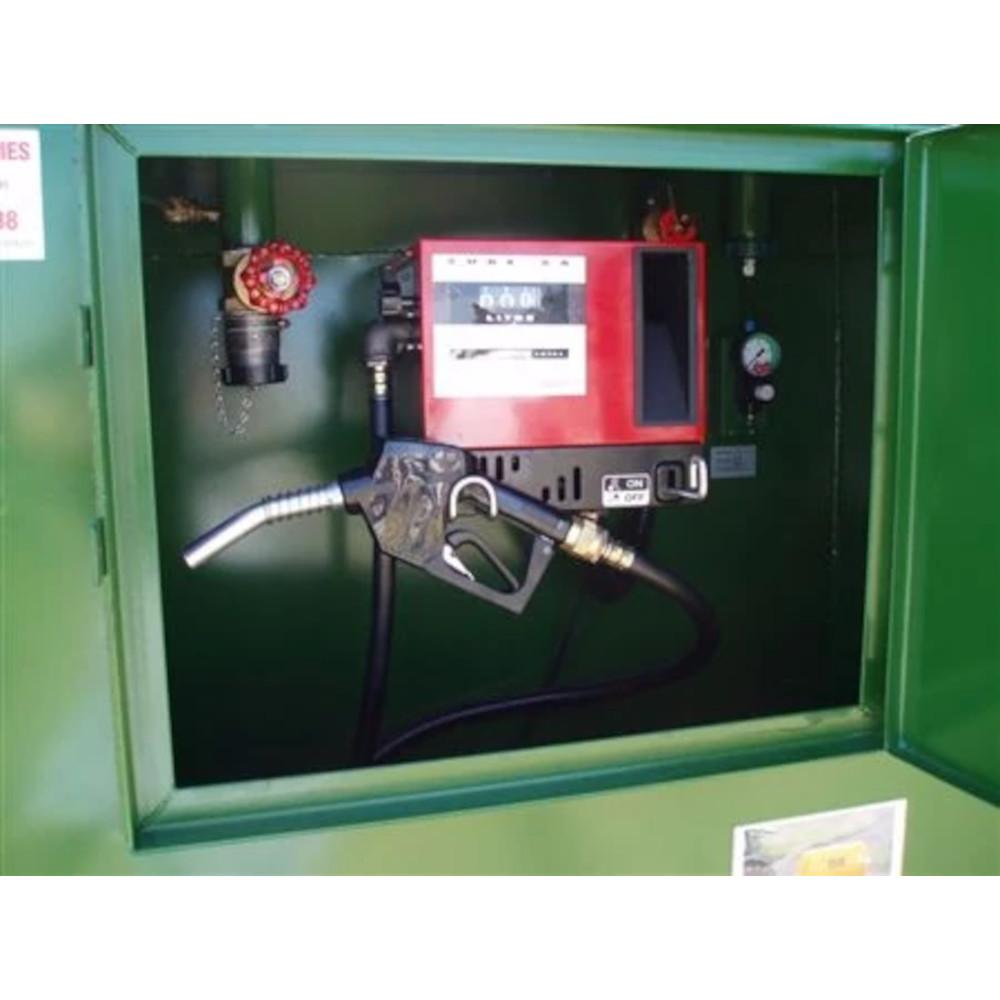

All of the pumping equipment is contained within the lockable cabinet for security. With a 5000 litre capacity this steel diesel dispenser is made from quality 2mm steel in England.

Delivered complete with:

• 110% Integrally Bunded Unit
• 100% Steel Construction - 3mm
• 5000 litre Capacity

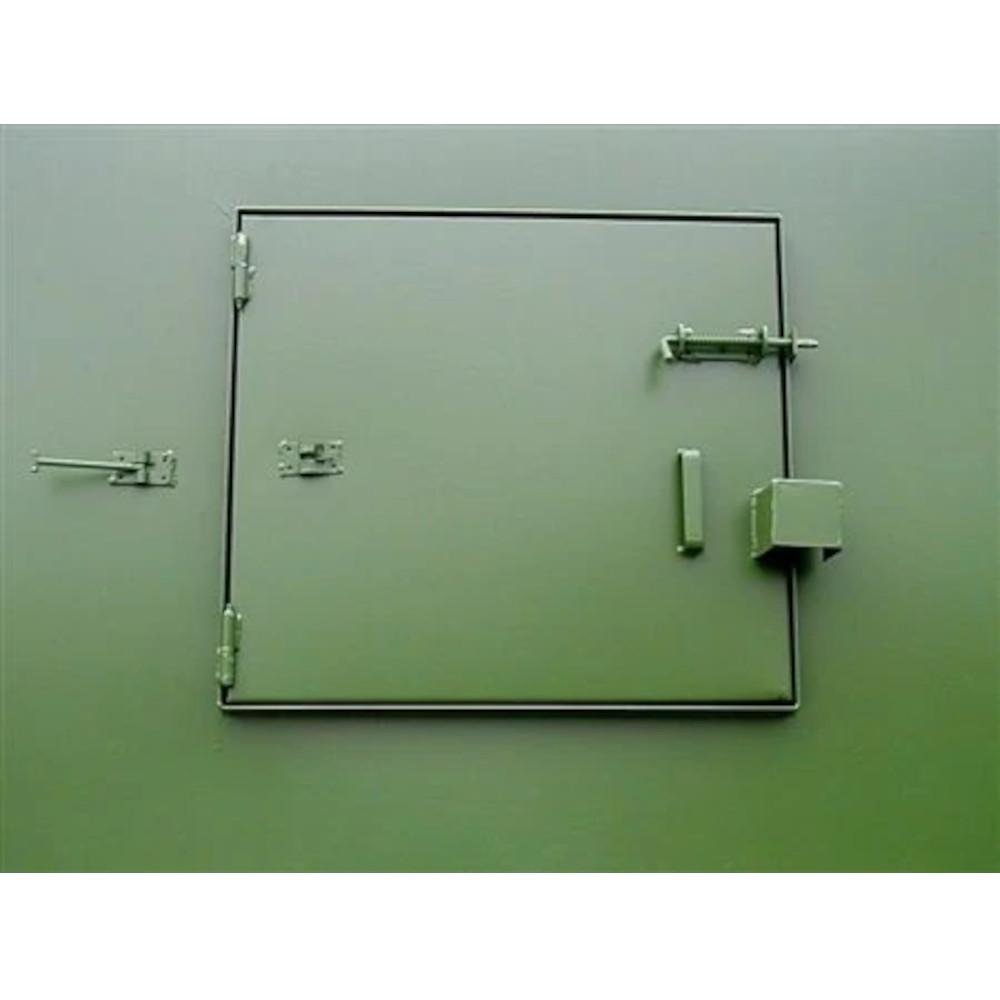

• Cabinet with Lockable Steel Door (Close Shackle Lock Cover)
• 240v Fuel Transfer Pump (56 lpm)
• 4m Delivery Hose
• Auto Shut Off Nozzle
• Mechanical Flowmeter

• 2" Fill Point with Dust Cap & Chain
• Clock Type Contents Gauge
• Secure Vent & Overfill into Bund
• Steel Base Plinths (Eliminating any Ground Contact with Sump Base)

• Undercoated & Finished in Green Gloss Paint (14c39)

Optional Extras:

• 10 Micron Filter - A Filter fitted inside the cabinet to remove dirt from fuel

Tank Dimensions:

Length: 2300mm
Width: 2000mm
Height: 1830mm
Weight: 1200kg approx.

This Steel Bunded Fuel Station is tough, robust and durable. The Tank Shops steel Diesel Dispensers offer a safe and secure solution to diesel storage and distribution in any environment.

Delivery of this Tank this only to address, the tank MUST be unloaded from the lorry by the customer, please make sure that you have suitable offloading facilities as these tanks are very heavy
