3636 Litre Insulated GRP Water Tank

3636 litre Insulated GRP One Piece Water Storage Break Tank with full WRAS Approval to hold 3636 litres of potable water, with 25mm of rigid foam insulation fitted to all sides as standard (can be upgraded to 50mm). The foam insulation is completely encapsulated within the GRP laminate to protect and prevent removal or damage. This GRP tank is made using the highest quality WRAS approved materials and is manufactured in England. Each GRP 3636 Litre insulated Water Tank has all internal surfaces finished in a clean and smooth hygienic coat for potable wholesome water.

Available with standard flat lid or upgrade to 200mm or 400mm raised chamber with weir for drop arm float valve (for CAT 5 Water Regulations).

Our Insulated GRP One Piece Cold Water Storage Tanks are WRAS Approved and comply with the latest regulations. All meet the requirements set by British Standard BS 280:2001, European Standards EN.13280:2001 and Singapore Standards 245:1995 for world wide usage

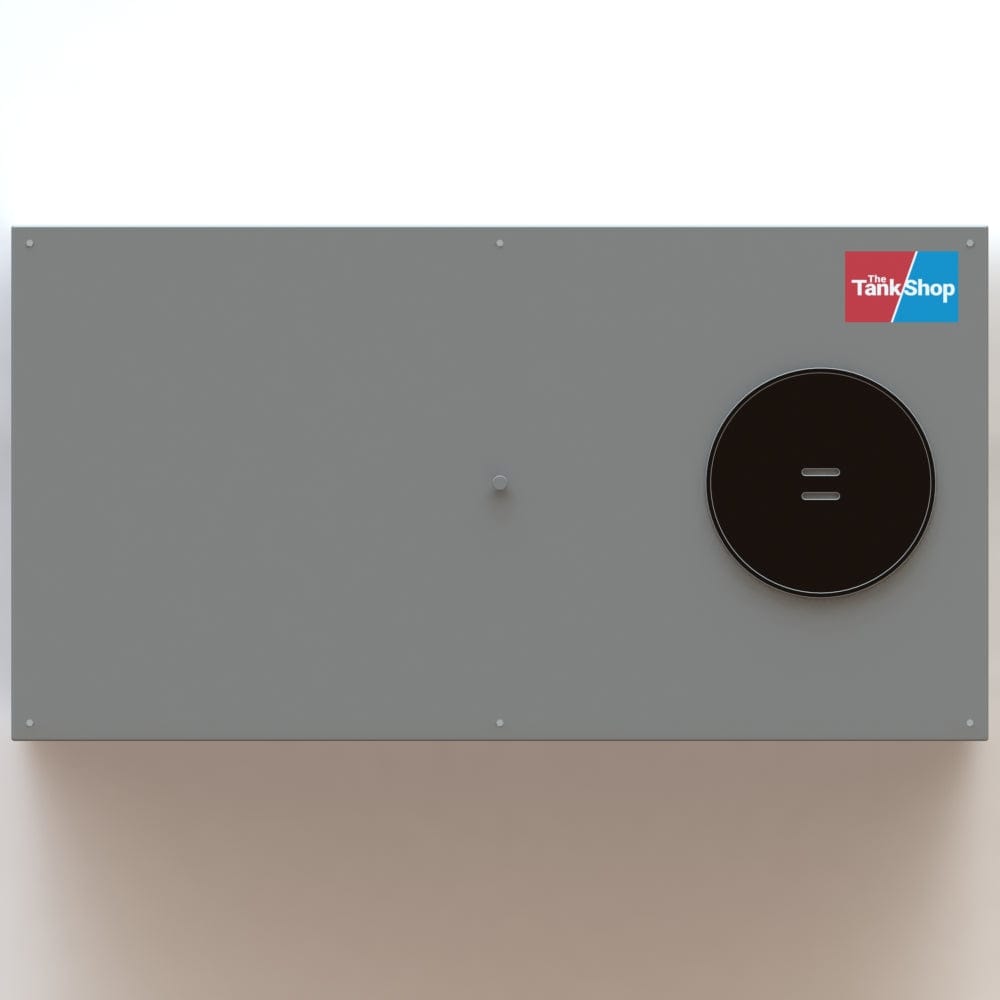

NB; Image for illustration purposes only.

General design specification - one & two piece GRP Tanks

Tank drawing and notes

Specifications:

• Capacity: 3636 Litres
• Length Internal: 2440mm
• Length External: 2670mm
• Width Internal: 1220mm
• Width External: 1410mm
• Height Internal: 1220mm
• Height External: 1226mm
• Dry Weight: 215kg approx.
• 25mm Insulation as standard
• Fully Removable Vented Lid or Lid with Raised Chamber for drop arm float valve to create AB Air Gap required for CAT 5 Water Regulations
• Any accessories ordered will be supplied loose (Not fitted to tank)


Optional Extras - Popular options listed below (contact us should you require something different, or a bespoke manufactured tank)

• Lid - standard flat lid or lid with raised chamber (AB Air Gap/CAT5)
• Insulation - 25mm Insulation foam encapsulated as standard, can be upgraded to 50mm insulation foam if required
• Encapsulated Baseboard -  18mm thick board comes moulded into the internal base of the tank to become part of the tanks construction and adds overall strength to the base.
• Drip Tray - GRP drip tray to sit under tank and capture any leakages or overfills.
• Equilibrium Float Valve - WRAS Approved Pco Flo Equilibrium Float Valve with Copper Float.
• Tank Connector - Connectors (supplied loose) in a variety of sizes.

Benefits of our GRP Tanks

• A maintenance free and cost-effective storage solution
• Corrosive free – Virtually zero maintenance
• WRAS approved
• Full range of connections/ancillary items available
• Close fitted sealed lid
• Approved for British Standard BS 280:2001, European Standards EN.13280:2001 and Singapore Standards 245:1995 for world wide usage

Images for illustration only
