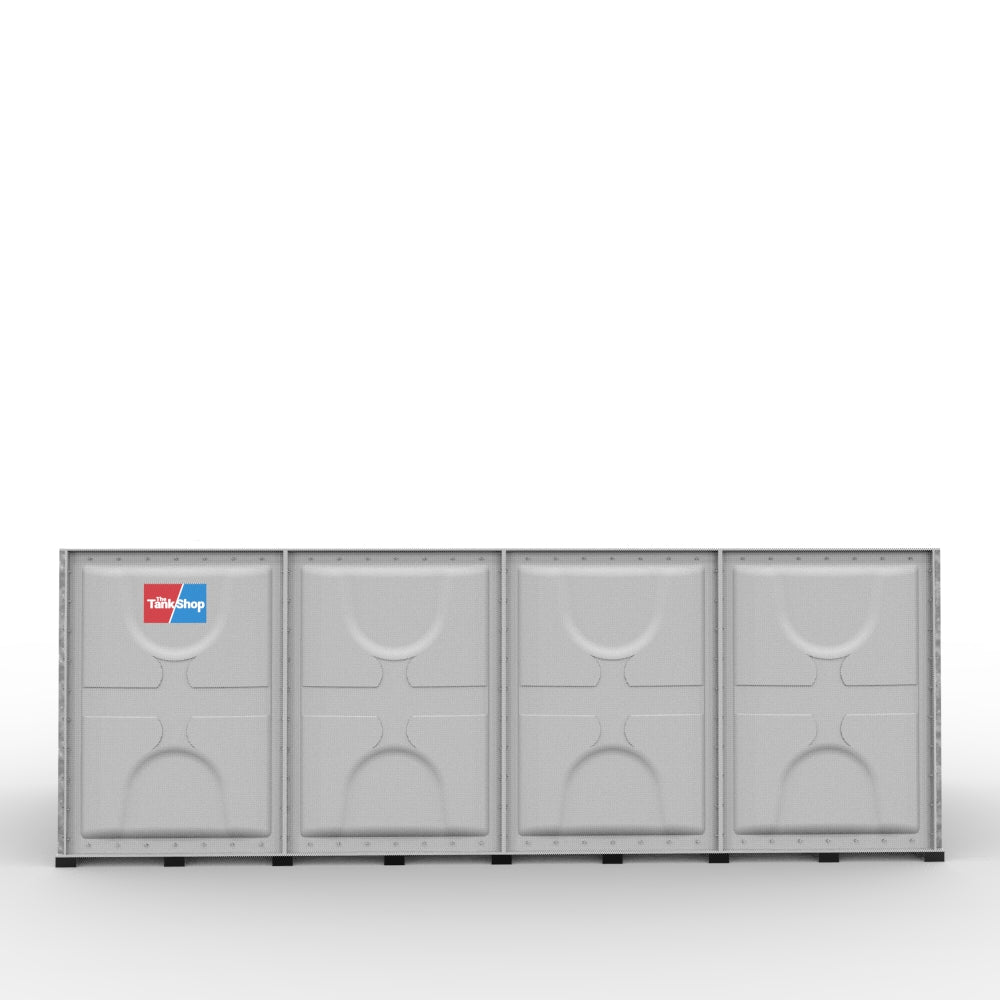

12000 Litre Sectional GRP Water Tank

12000 Litre GRP Sectional Water Tank; this hot pressed moulded GRP Sectional Tank has an internally flanged base (IFB) and Externally Flanged sides. The modular design uses bolt together panels suitable for on-site assembly. Our 12000 Litre Sectional GRP tank comes with 50mm insulation to the sides and is WRAS approved for use with potable water. This tank is also suitable for a variety of applications including process cooling, rainwater harvesting and many other systems and processes where containment of water is necessary.

All gaskets, seals and fixings for assembly are included. Our Sectional GRP Tanks must be sited onto a flat, level and continuous foundation, such as a concrete slab. IFB tanks require a minimum of 500mm working clearance all around the tank, a minimum of 500mm above the man-way height and/or 350mm above any raised float valve housing.

As standard this tank will be delivered flat packed for self-assembly. On site assembly is available by qualified engineers for an additional cost, please fill contact us for information, hello@thetankshop.co.uk

 Specifications:

• External Length : 4450mm
• External Width : 2450mm
• External Height : 1750mm
• 50mm fully encapsulated insulation to sides
• Externally flanged side panels
• Internally flanged base panel
• Internally flanged heavy duty lid
• Manway in lid 800mm x 800mm
• Gaskets, seals and fixings for assembly included
• Internal fixings are stainless steel
• External fixings are galvanised
• Levelling steels included to suit flat concrete pad (100mmx50mm)
• Any accessories ordered will be supplied loose (Not fitted to tank)

Optional Extras - Only popular options listed on site however many more options available, just email hello@thetankshop.co.uk to get a quote.

• External ladder - to gain access to lid of tank
• Float valves - a range of valves available, if the one you require is not listed please email hello@thetankshop.co.uk to get a quote.
• Raised float valve housing on lid - forms part of the roof structure in the same way as a standard roof panel


Benefits of our GRP Tanks

• A maintenance free and cost-effective storage solution
• Corrosive free – Virtually zero maintenance
• Can be supplied to store up to 2 million litres of water
• Full range of connections/ancillary items available

• Manufactured in ISO 9001:2000 approved facilities
